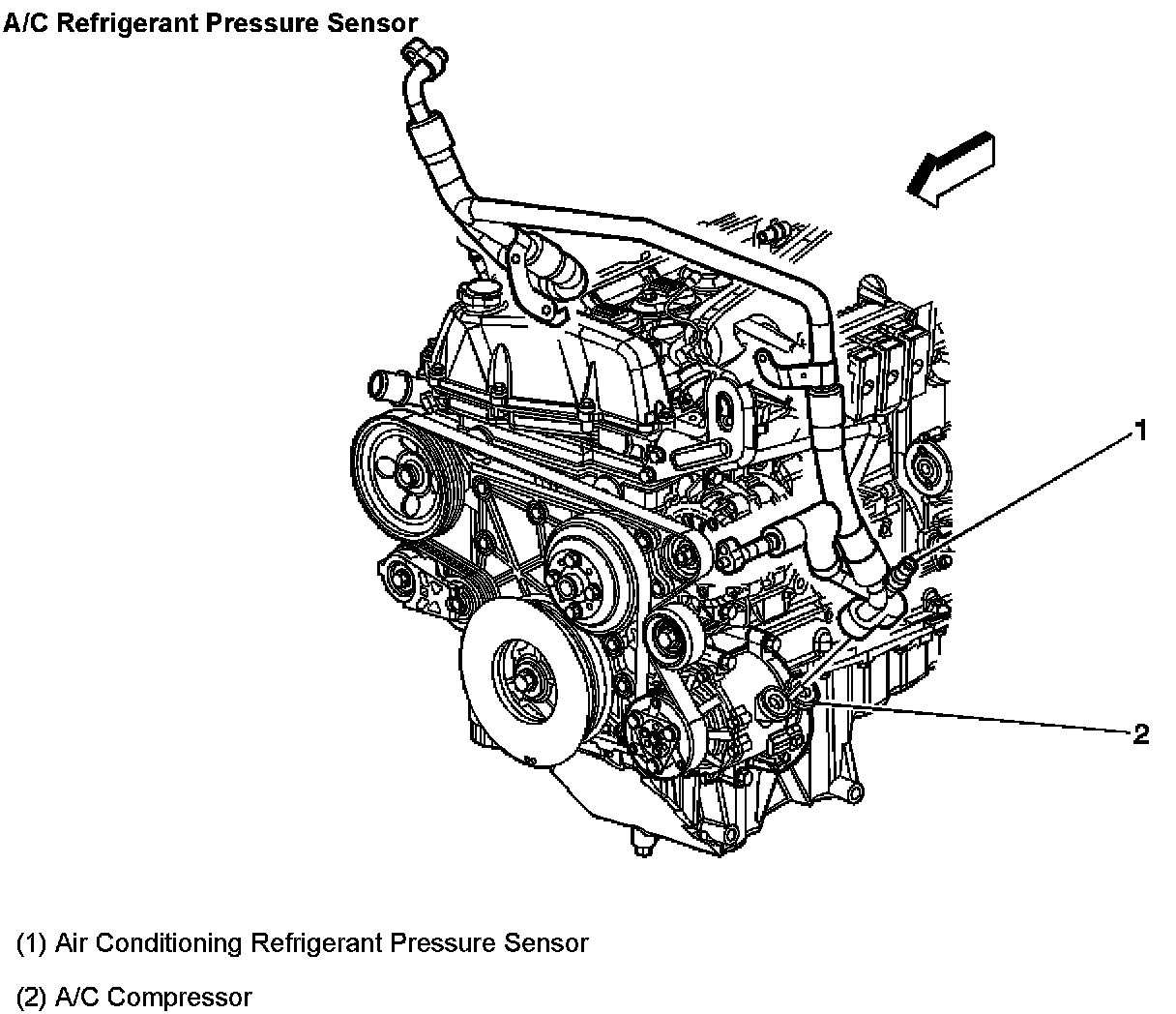

Refrigerant Pressure Sensor / Switch: Locations

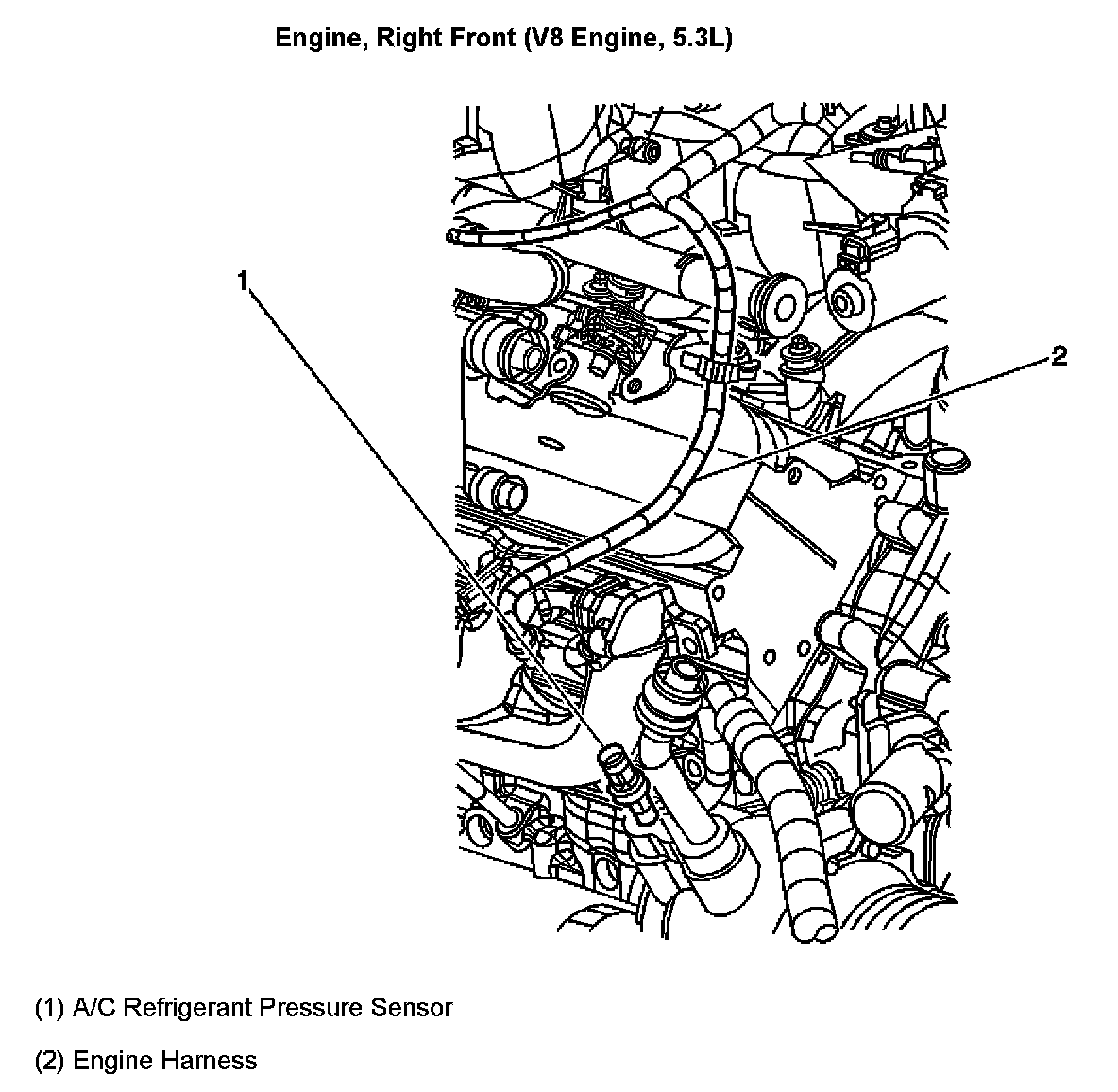

Engine, Right Front:



A/C Refrigerant Pressure Sensor (w/Manual - HVAC System):



A/C Refrigerant Pressure Sensor (w/Automatic HVAC System):
