Body Control Module: Diagrams

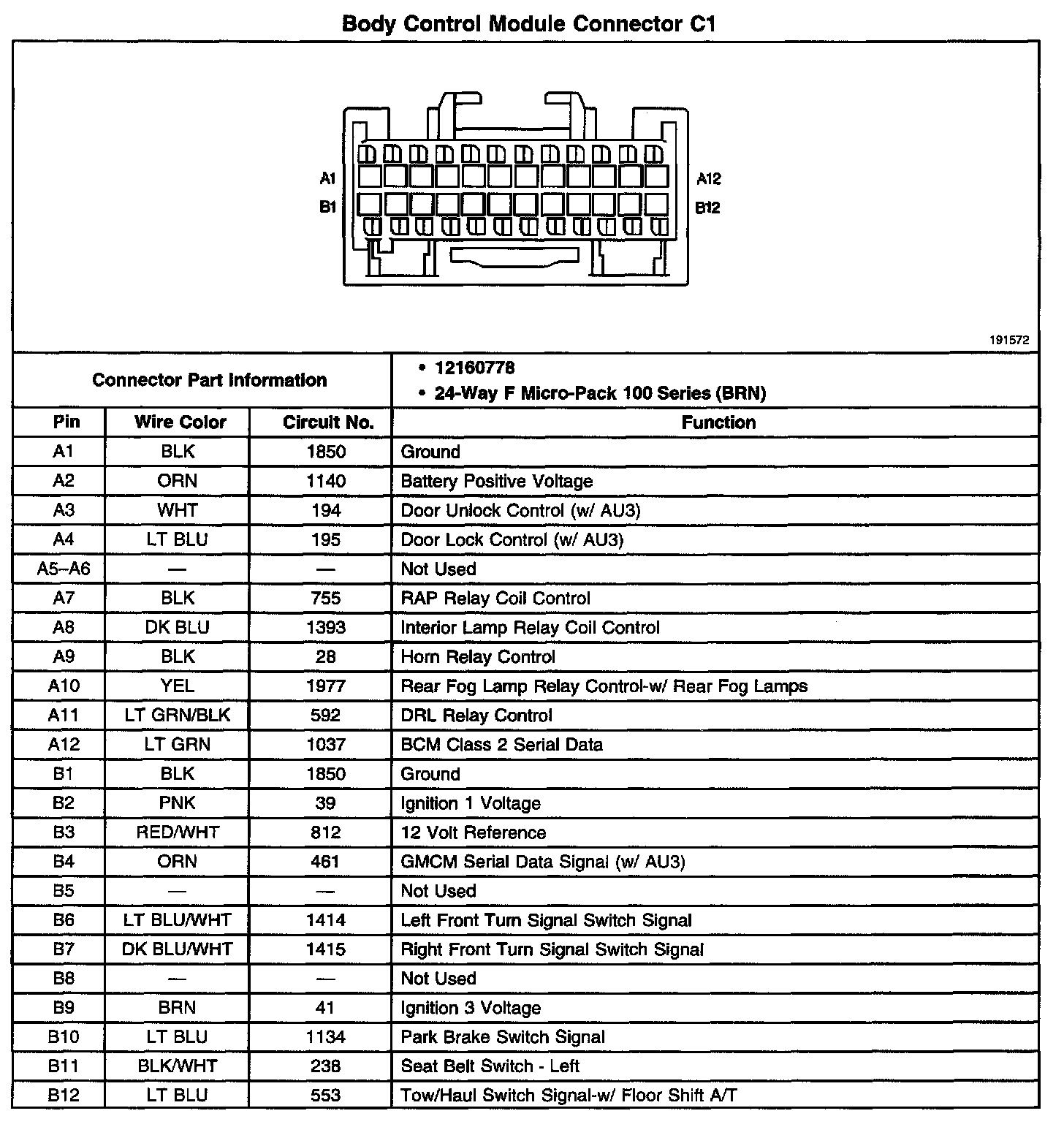

Body Control Module Connector C1:

Body Control Module Connector C2:

Body Control Module Connector C3:

For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application. Application and ID
