Scan Tool Data List
For scan tool data list, see
Fig 1
.

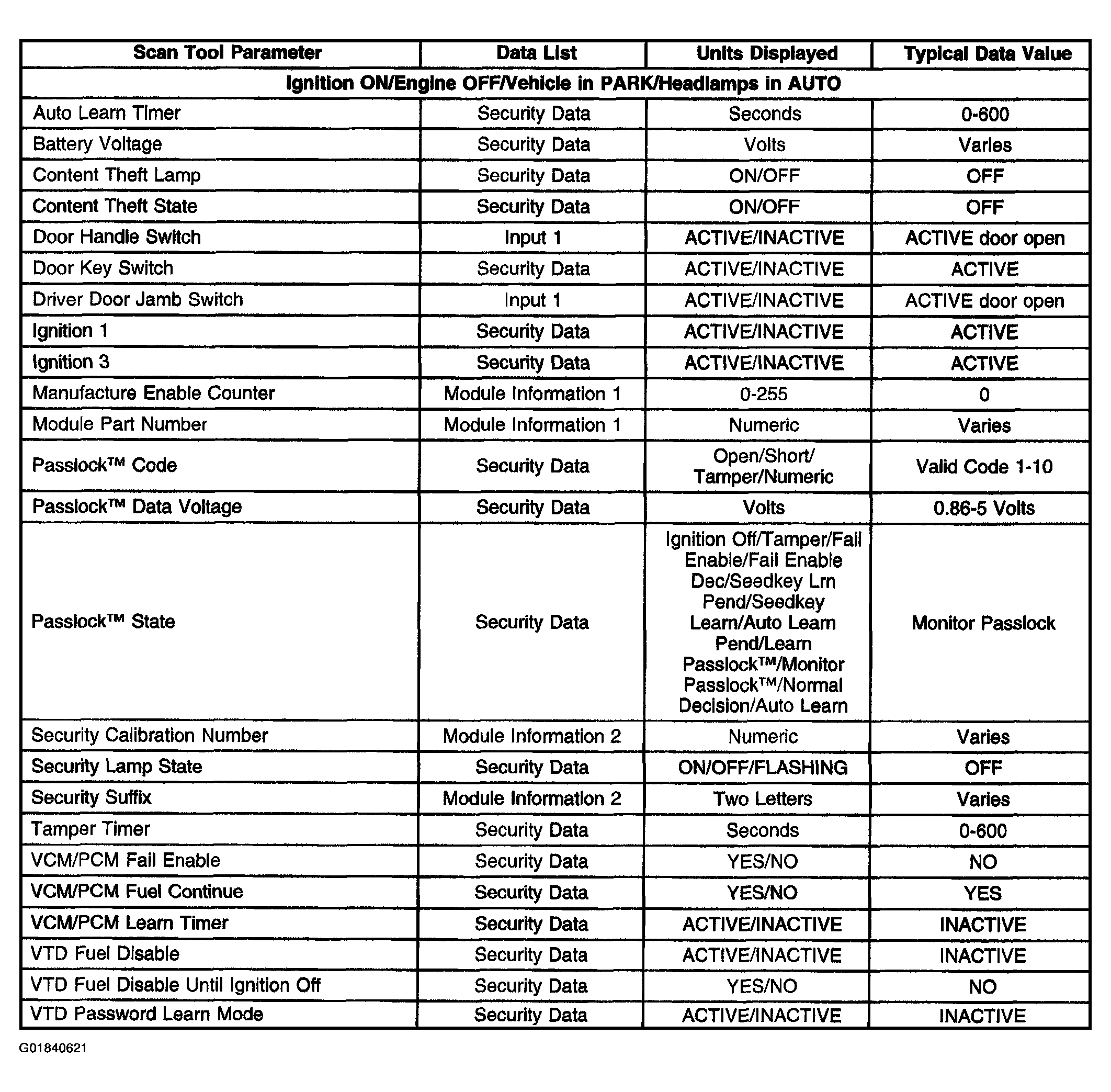

Fig 1: Scan Tool Data List
Courtesy of GENERAL MOTORS CORP.
