Engine Overheating

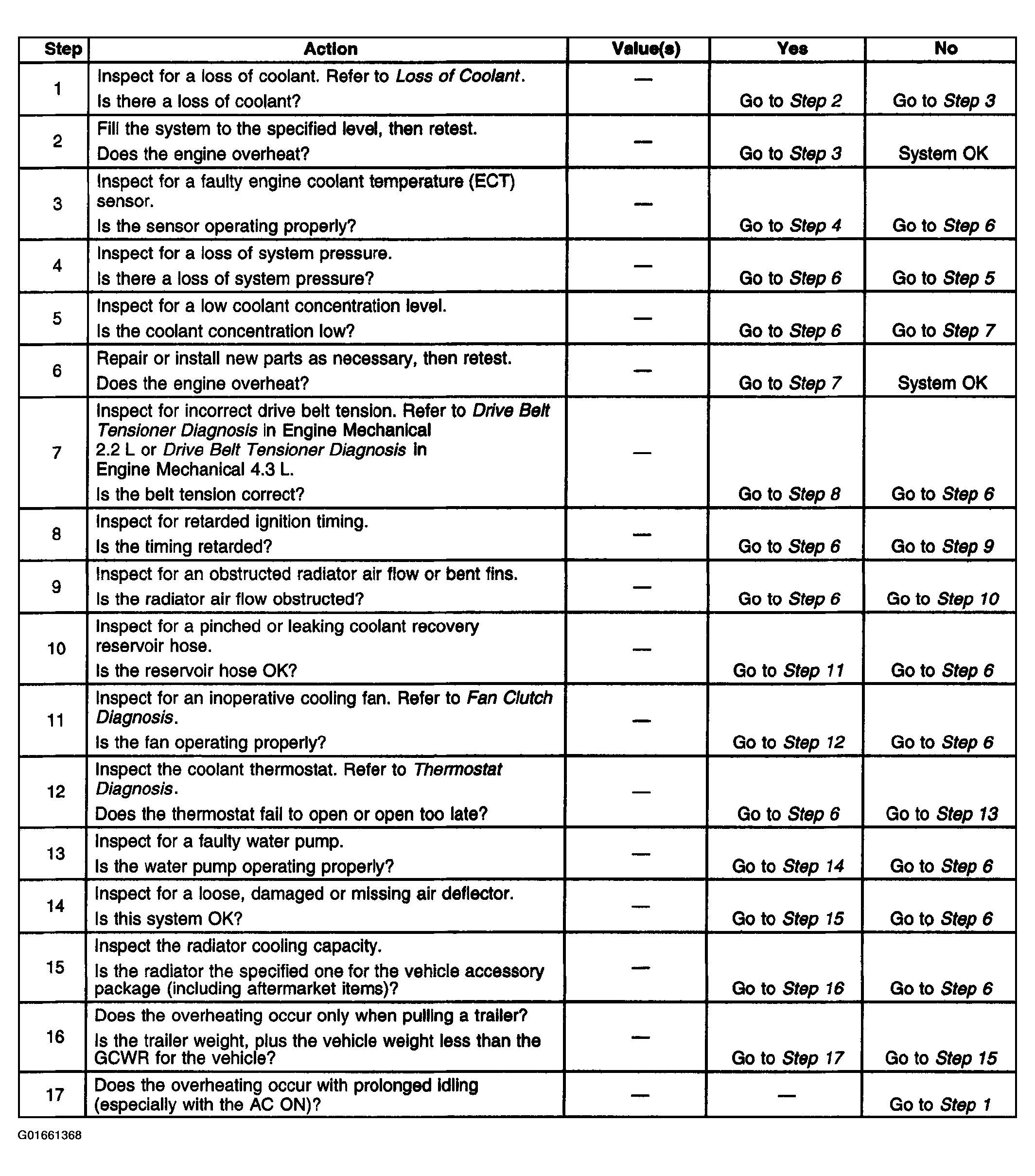

Fig 1: Engine Overheating
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
