Fog Lamp Connector End View - Left Front

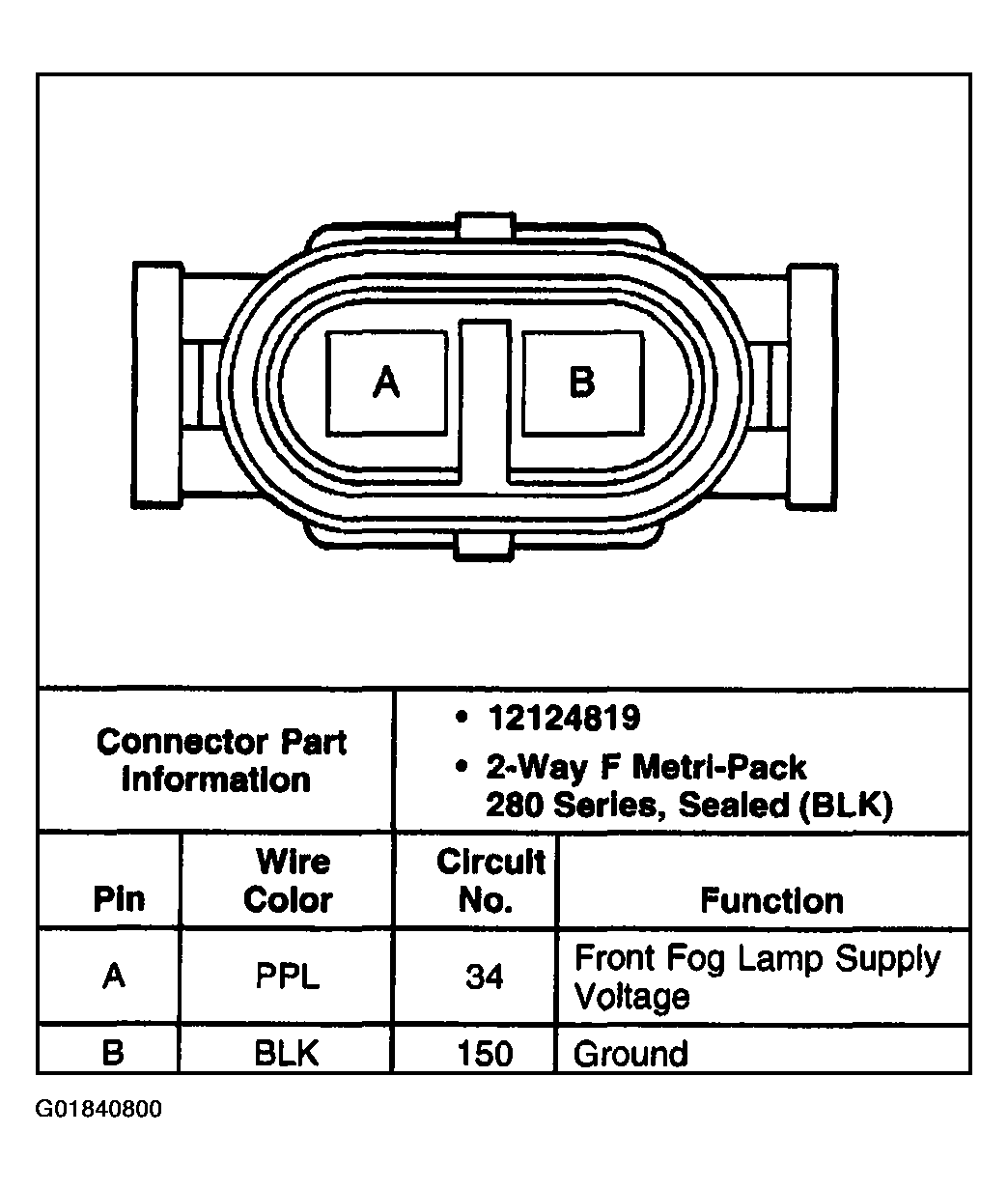

Fig 1: Fog Lamp Connector End View - Left Front
G01840800Courtesy of GENERAL MOTORS CORP.
