Dome Lamp Connector End View (Utility)

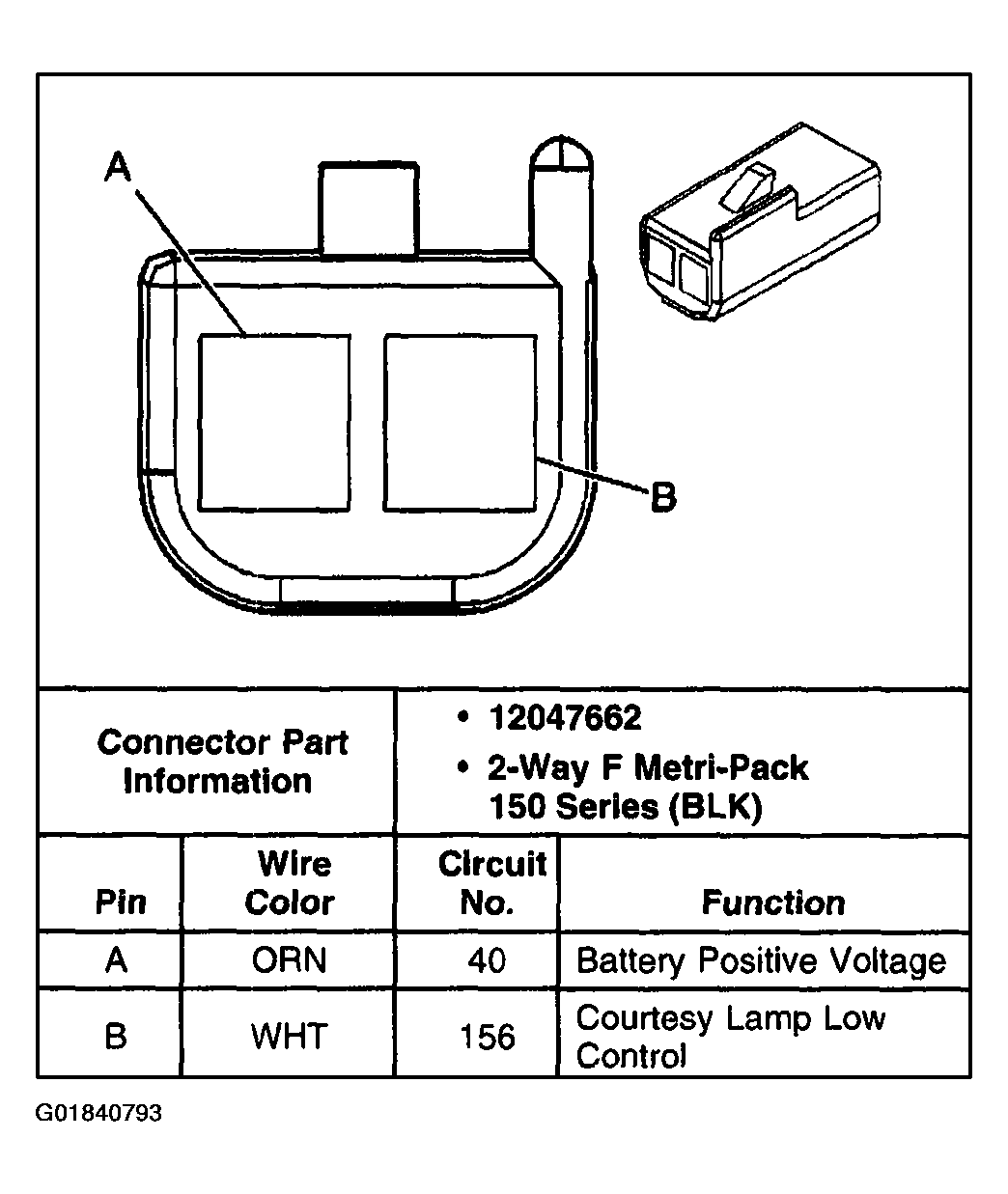

Fig 1: Dome Lamp Connector End View (Utility)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
