Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Connect the electrical connector to the sun load sensor.
Install the sun load sensor to the I/P upper trim pad by turning clockwise.

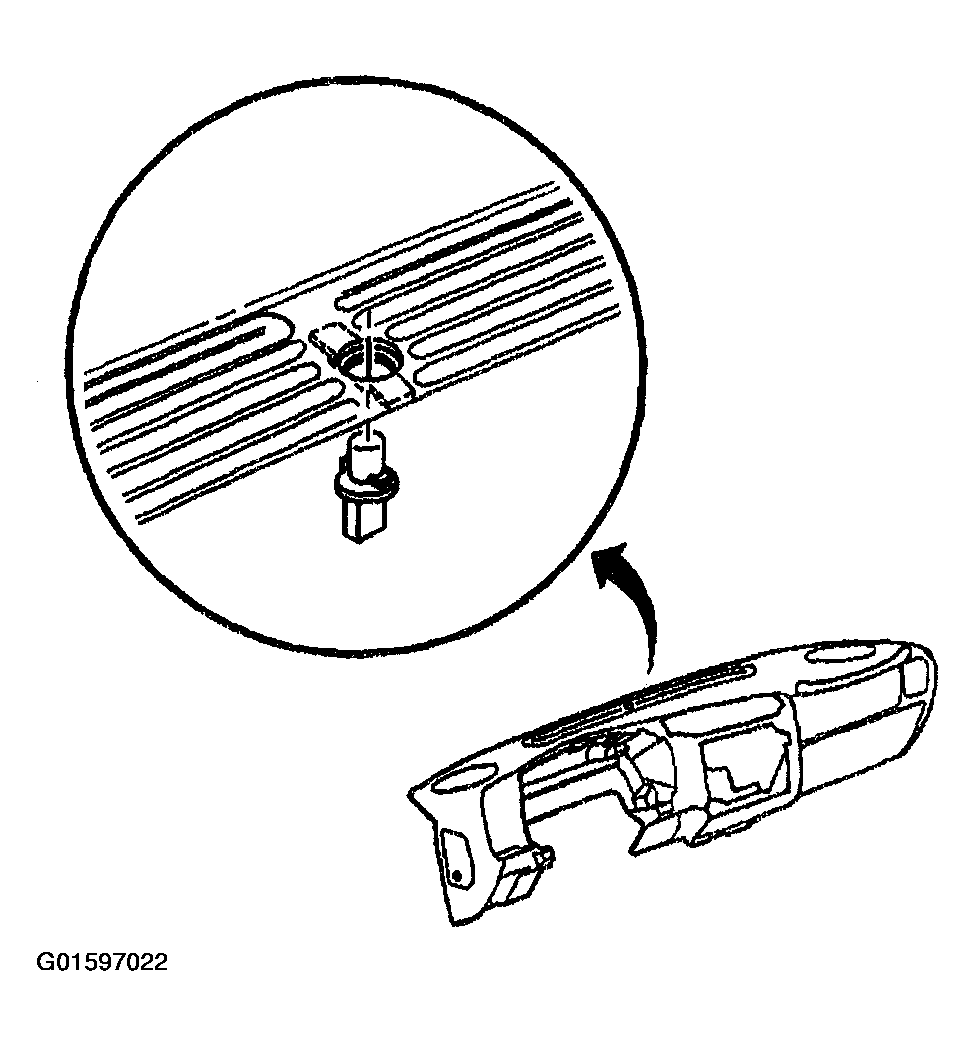

Fig 1: Installing Sun Load Sensor To Instrumental Panel Upper Trim Pad
Courtesy of GENERAL MOTORS CORP.
Install the I/P upper trim pad. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER in Instrument Panel, Gages, and Console.
