Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the inside air temperature sensor assembly (1).
  2. Install the inside air temperature sensor assembly (1) to the B pillar.

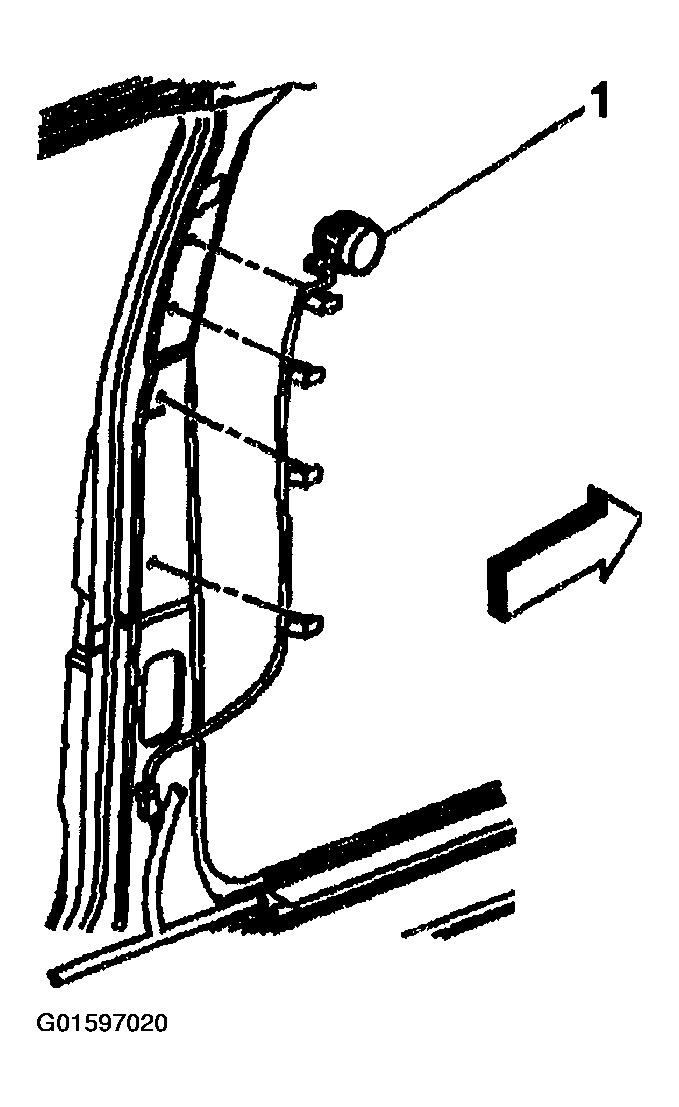

    Fig 1: Installing Inside Air Temperature Sensor Assembly
    G01597020Courtesy of GENERAL MOTORS CORP.
  3. Install the retaining clips to the B pillar.
  4. Install the upper portion of the left center trim pillar.
