Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the air inlet actuator (3) to the air inlet door shaft. The actuator can be installed on the shaft in two positions 180 degrees from each other. Ensure that the door is in the correct position for the actuator. Secure with the two screws (1).

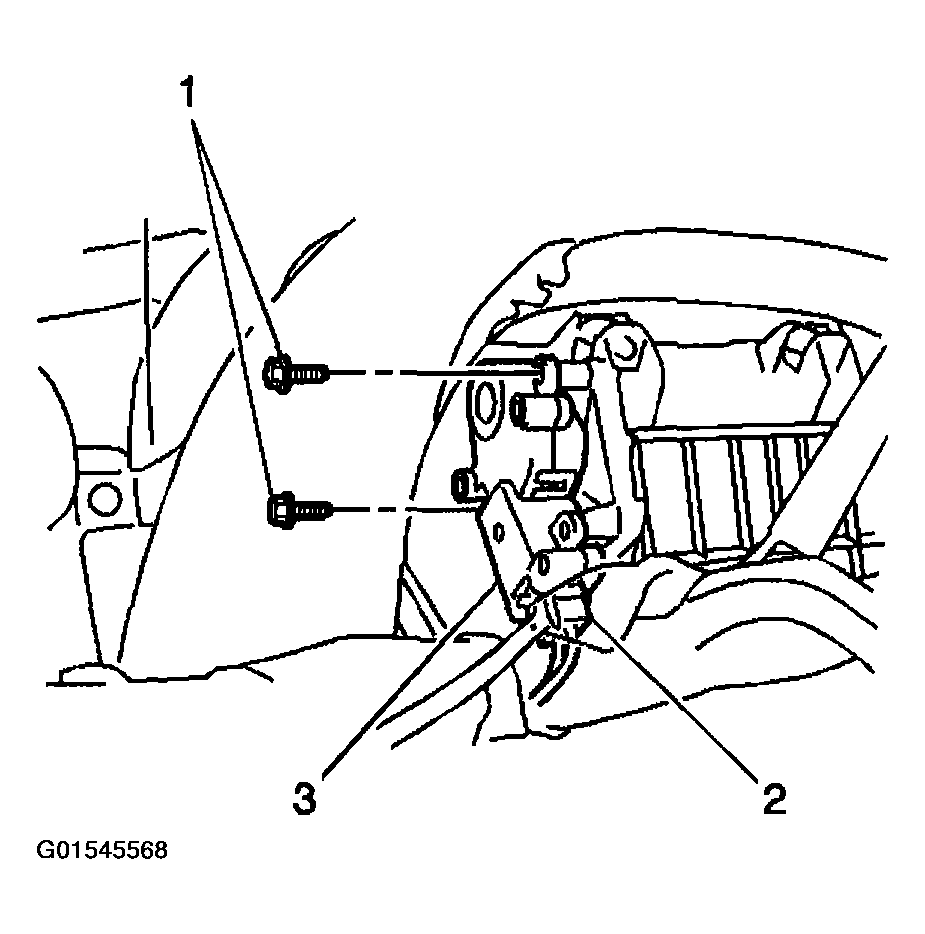

    Fig 1: Installing Recirculation Actuator
    G01545568Courtesy of GENERAL MOTORS CORP.
  2. Install the connector (2).
  3. Install the upper Instrument Panel (IP). Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER .
