Removal Procedure

  1. Remove the body side trim panel. Refer to TRIM PANEL REPLACEMENT - BODY SIDE (STANDARD CAB PICKUP) , TRIM PANEL REPLACEMENT - BODY SIDE (EXTENDED CAB PICKUP) , TRIM PANEL REPLACEMENT - BODY SIDE (2-DOOR UTILITY) , TRIM PANEL REPLACEMENT - BODY SIDE (4-DOOR UTILITY) or TRIM PANEL REPLACEMENT - BODY SIDE (CREW CAB) .
  2. Remove the jump seat retaining bolts and nuts.

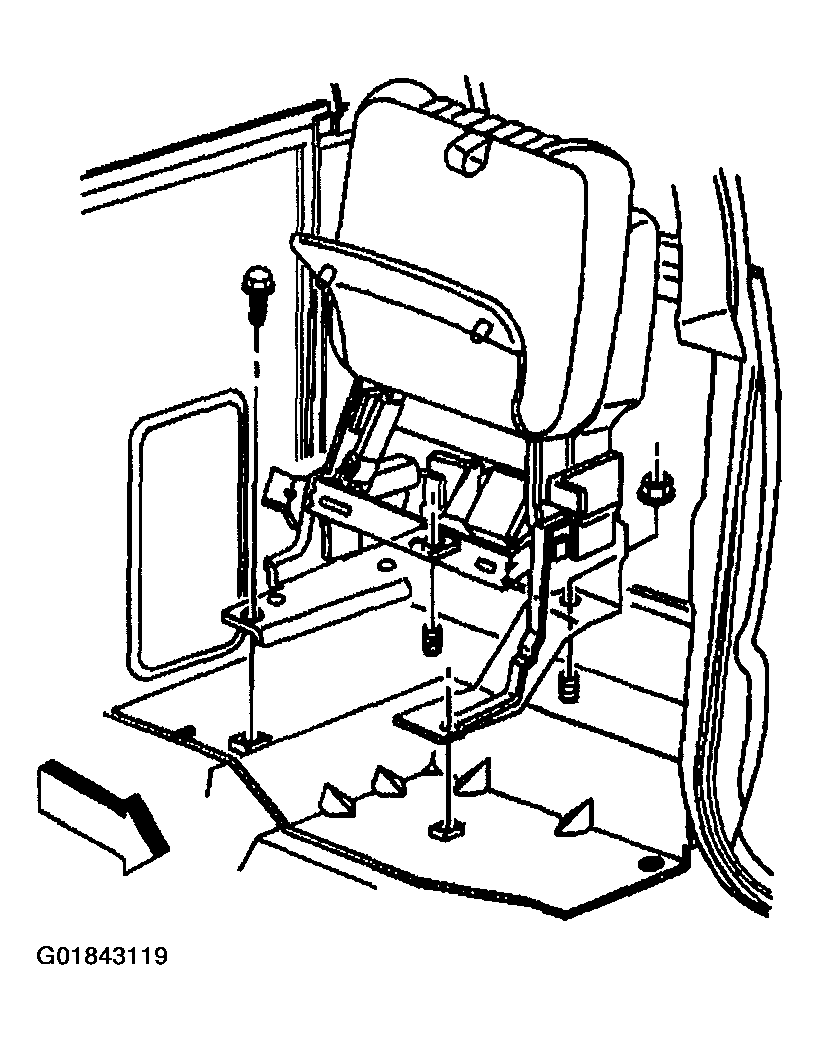

    Fig 1: Locating Jump Seat Retaining Bolts & Nuts
    G01843119Courtesy of GENERAL MOTORS CORP.
  3. Remove the jump seat from the vehicle.
