Seat Horizontal Position Motor

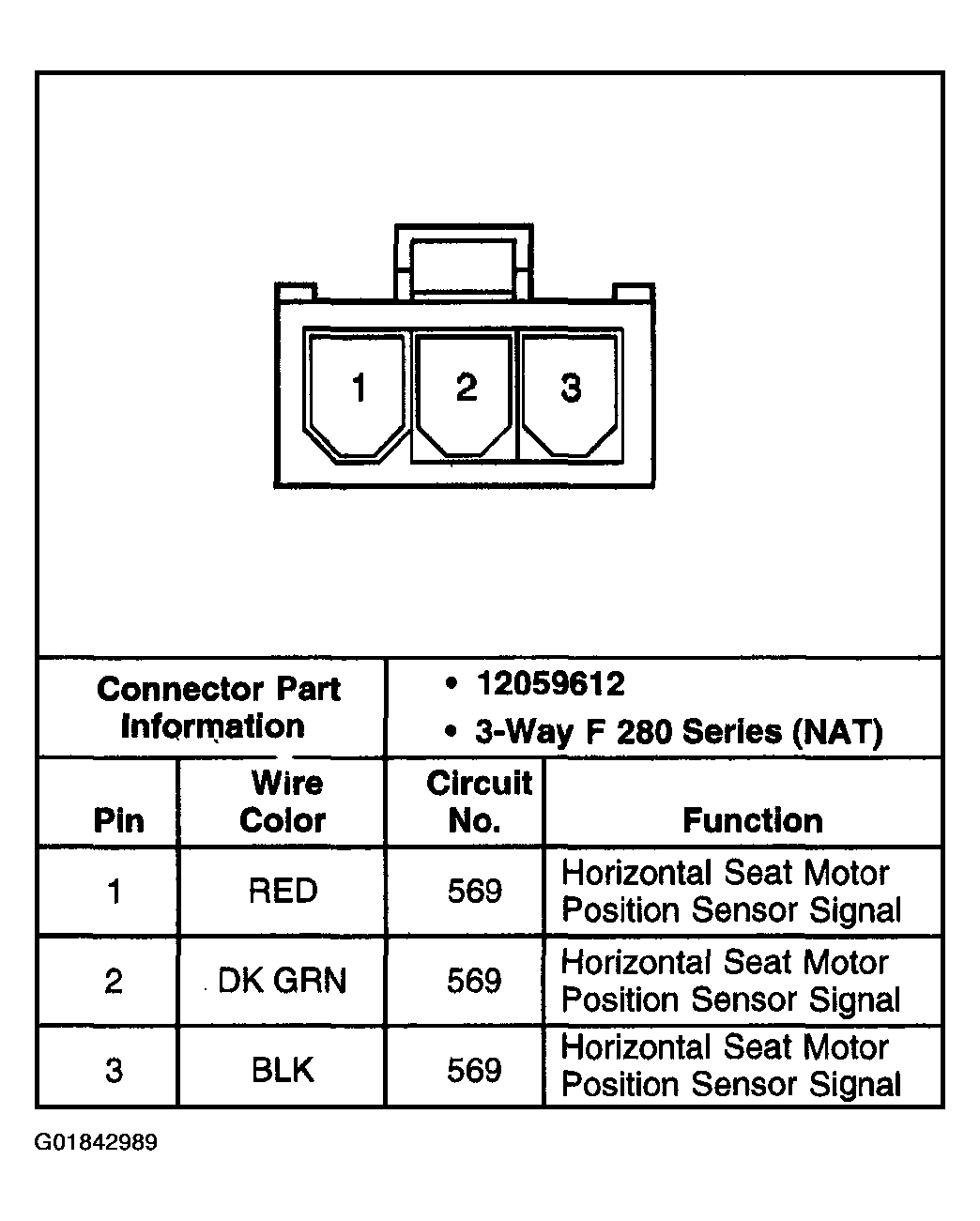

Fig 1: Seat Horizontal Position Motor (w/ Memory)
Courtesy of GENERAL MOTORS CORP.
