Seat Horizontal Motor

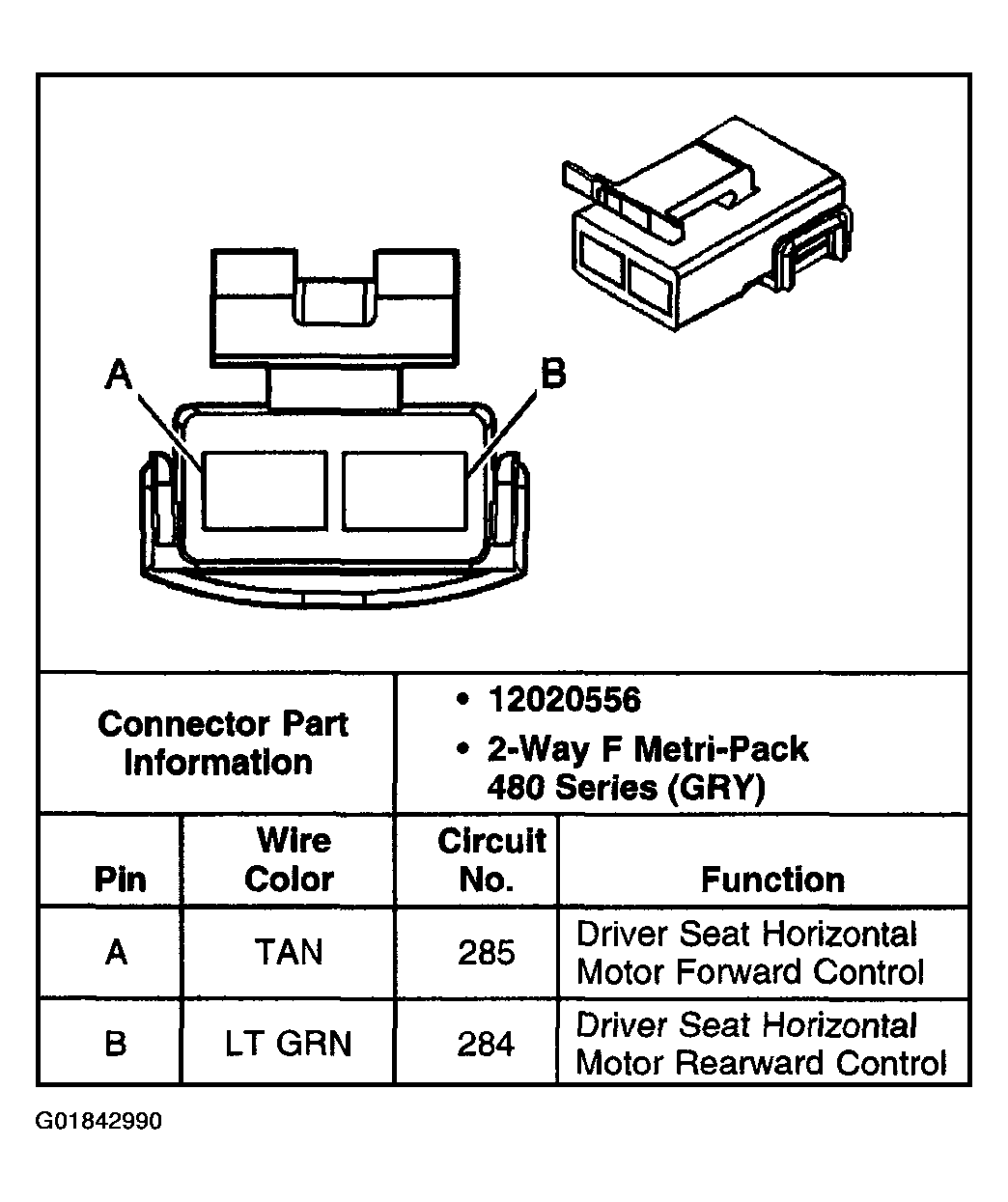

Fig 1: Seat Horizontal Motor - Driver
G01842990Courtesy of GENERAL MOTORS CORP.

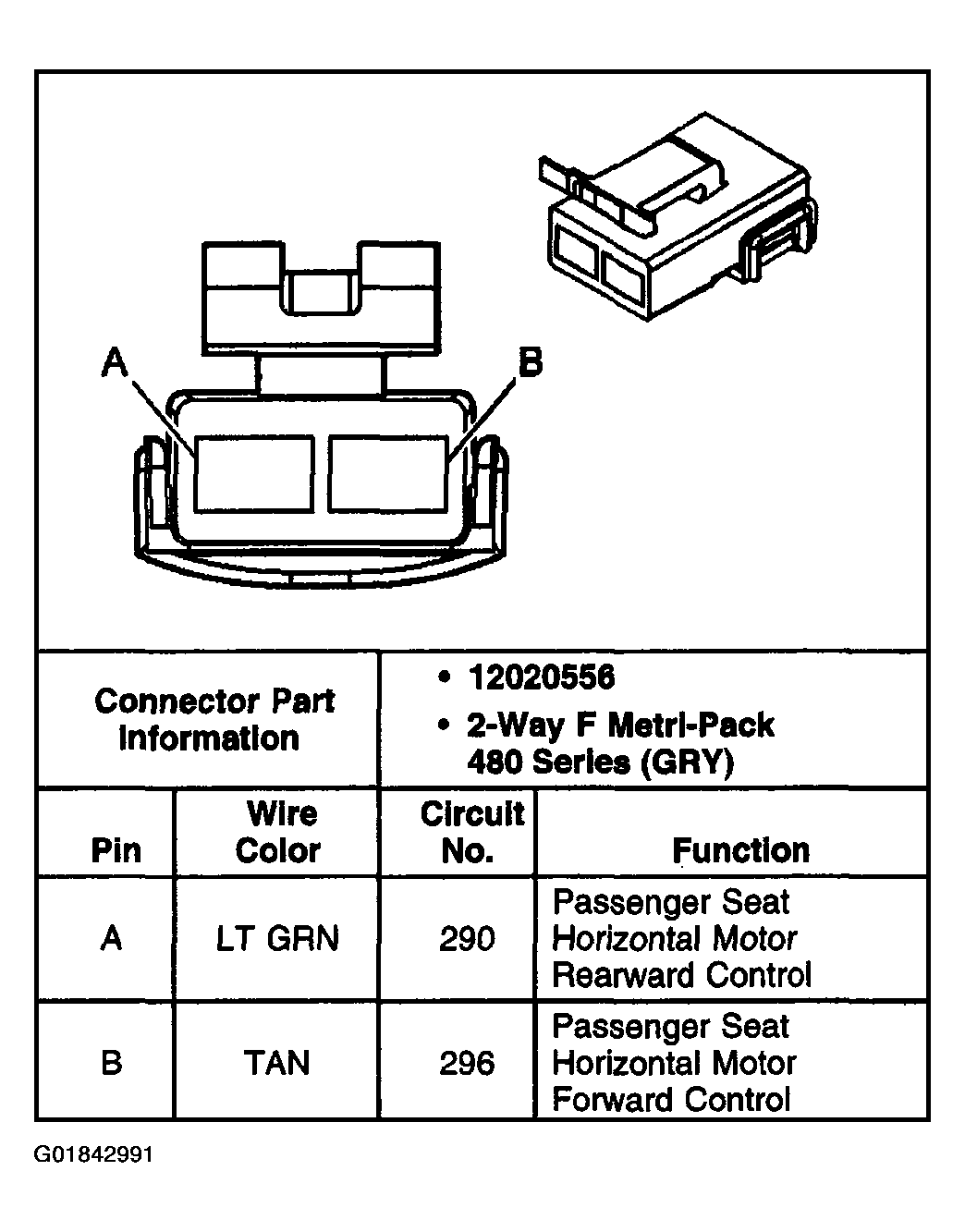

Fig 2: Seat Horizontal Motor - Front Passenger
G01842991Courtesy of GENERAL MOTORS CORP.
