Installation Procedure

  1. Connect the cruise control cable to the vehicle.
  2. Connect the cruise control cable bead to the fitting on the cruise control module ribbon.
    Fig 1: Locating Cruise Control Cable Bead & Cruise Control Module Ribbon
    G01841139Courtesy of GENERAL MOTORS CORP.
  3. Pull the cruise control cable until the cable is taut.
  4. Turn the cruise control cable at the engine-end fitting in order to straighten the cruise control module ribbon, as needed.

    The ribbon, must be flat and vertical.

    Fig 2: Straightening Cruise Control Module Ribbon
    G01841140Courtesy of GENERAL MOTORS CORP.
  5. Slide the cruise control cable conduit over the ribbon.
  6. Install the tangs to the cruise control module housing.

    Ensure that the tangs snap securely into place.

    Fig 3: Positioning Cruise Control Cable Conduit
    G01841141Courtesy of GENERAL MOTORS CORP.
  7. Ensure the cruise control cable is routed in the original position.

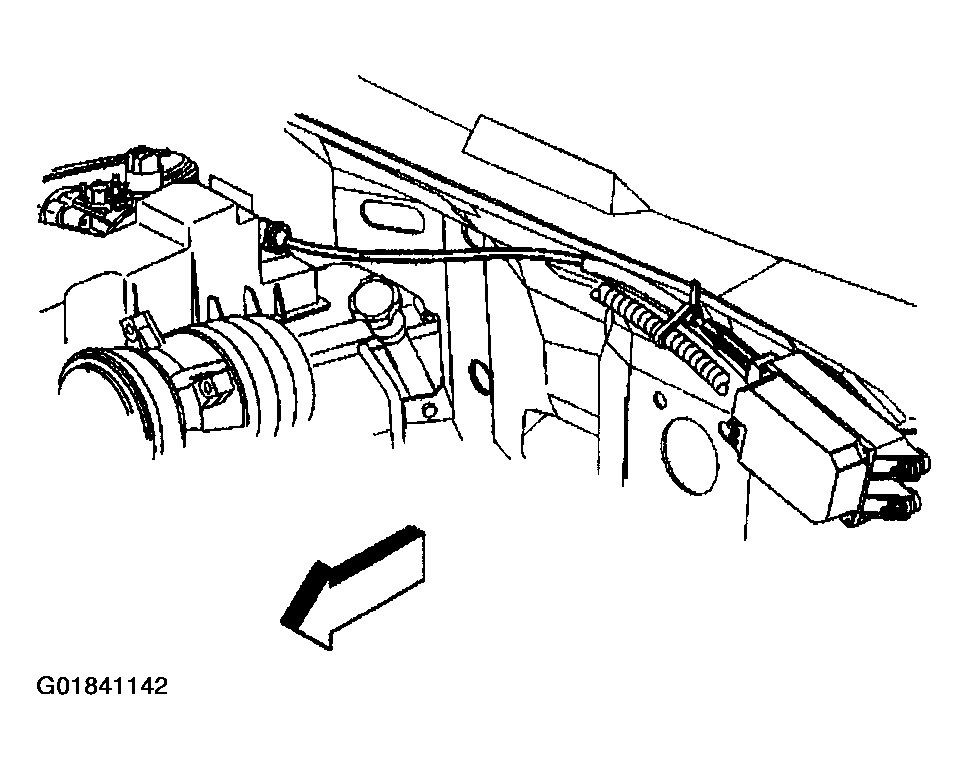

    Fig 4: Positioning Cruise Control Cable To Original Position
    G01841142Courtesy of GENERAL MOTORS CORP.
  8. Rotate the throttle cam lever in order to install the cruise control adjuster (3) onto the nail head on the throttle cam lever.

    Discard any cable with kinks or damage to the core wire.

  9. Pull the cable conduit toward the right side of the vehicle. Thread the cable through the slot in the round hole of the cable bracket.
  10. Push the cable adjuster locking button into the locked position.

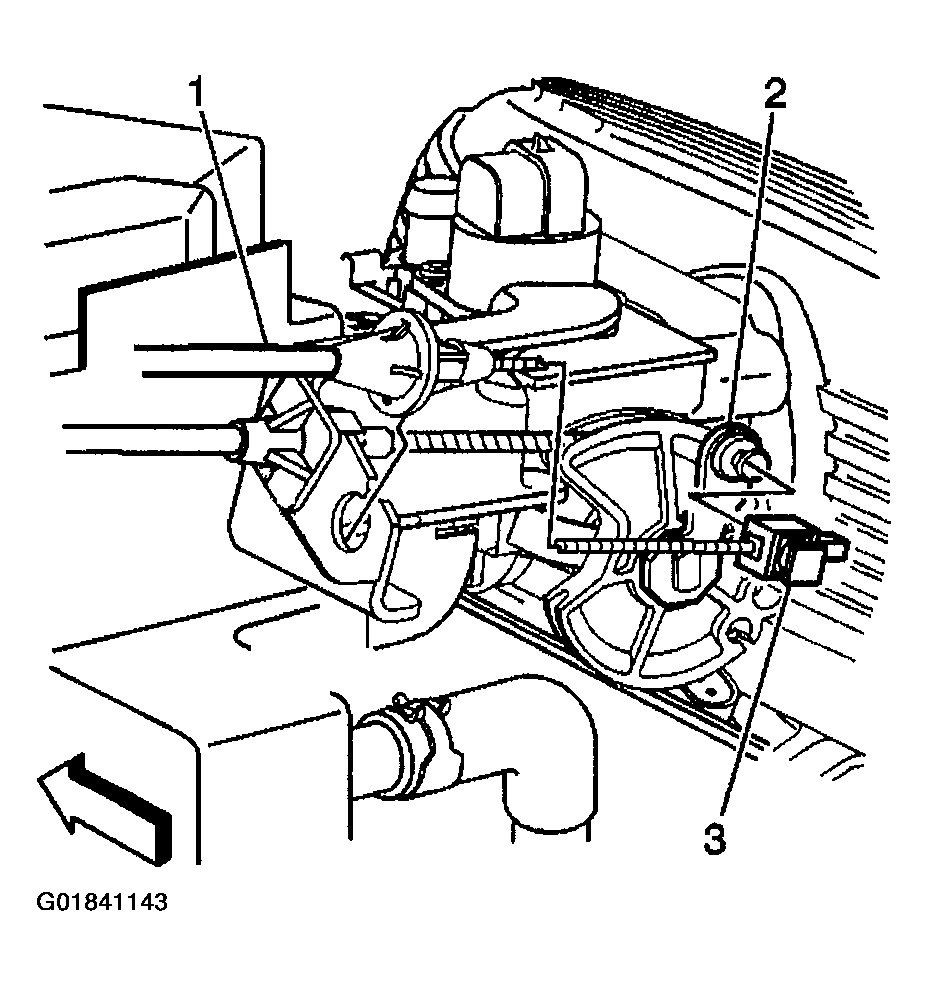

    Fig 5: Locating Cruise Control Cable Engine-End Fitting & Engine Throttle Bracket
    G01841143Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Secure all of the components of the accelerator and the cruise control cables as specified.

    Ensure that the throttle linkage operates freely without binding between the idle position and the wide open throttle.

  11. Push the cable adjuster plunger into the locked position (2). Ensure that the white paint area is no longer visible.

    The lash should automatically be set at 0.0-1.0 mm (0.0-0.04 in) by the adjuster.

  12. Connect the electrical connector to the cruise control servo module.

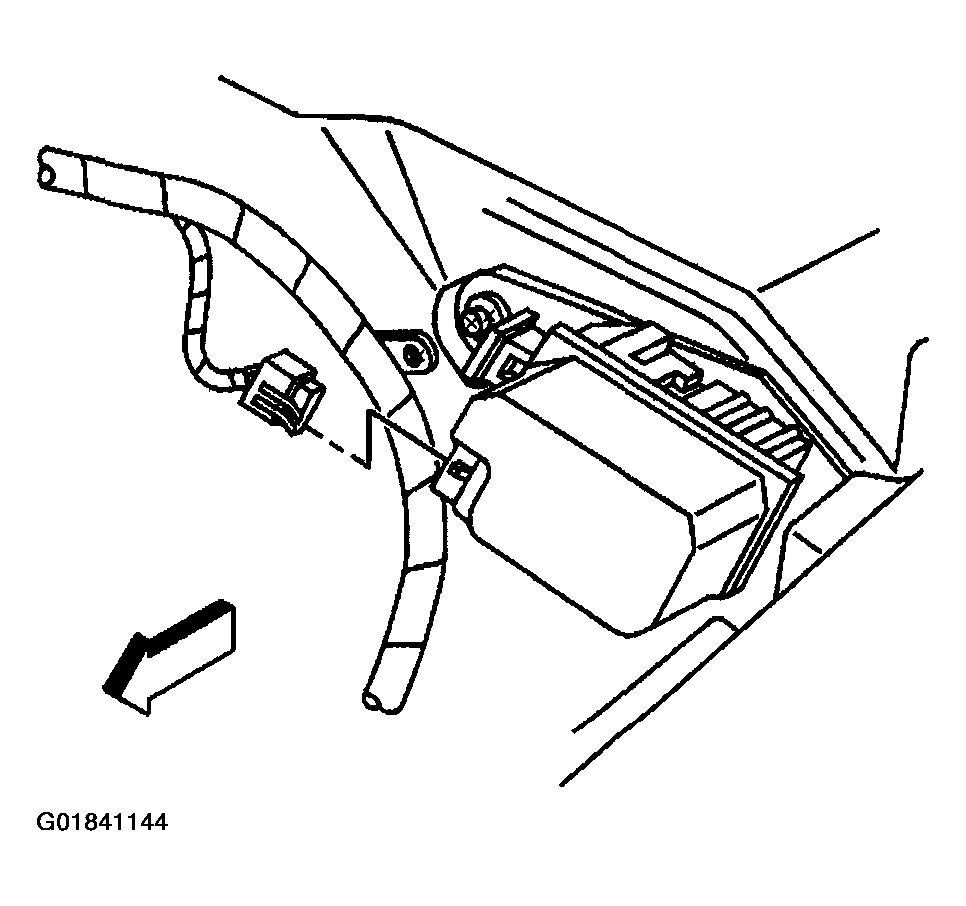

    Fig 6: Locating Cruise Control Servo Module Electrical Connector
    G01841144Courtesy of GENERAL MOTORS CORP.
