DTC P0568 (2.2L, 2.4L): Notes

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

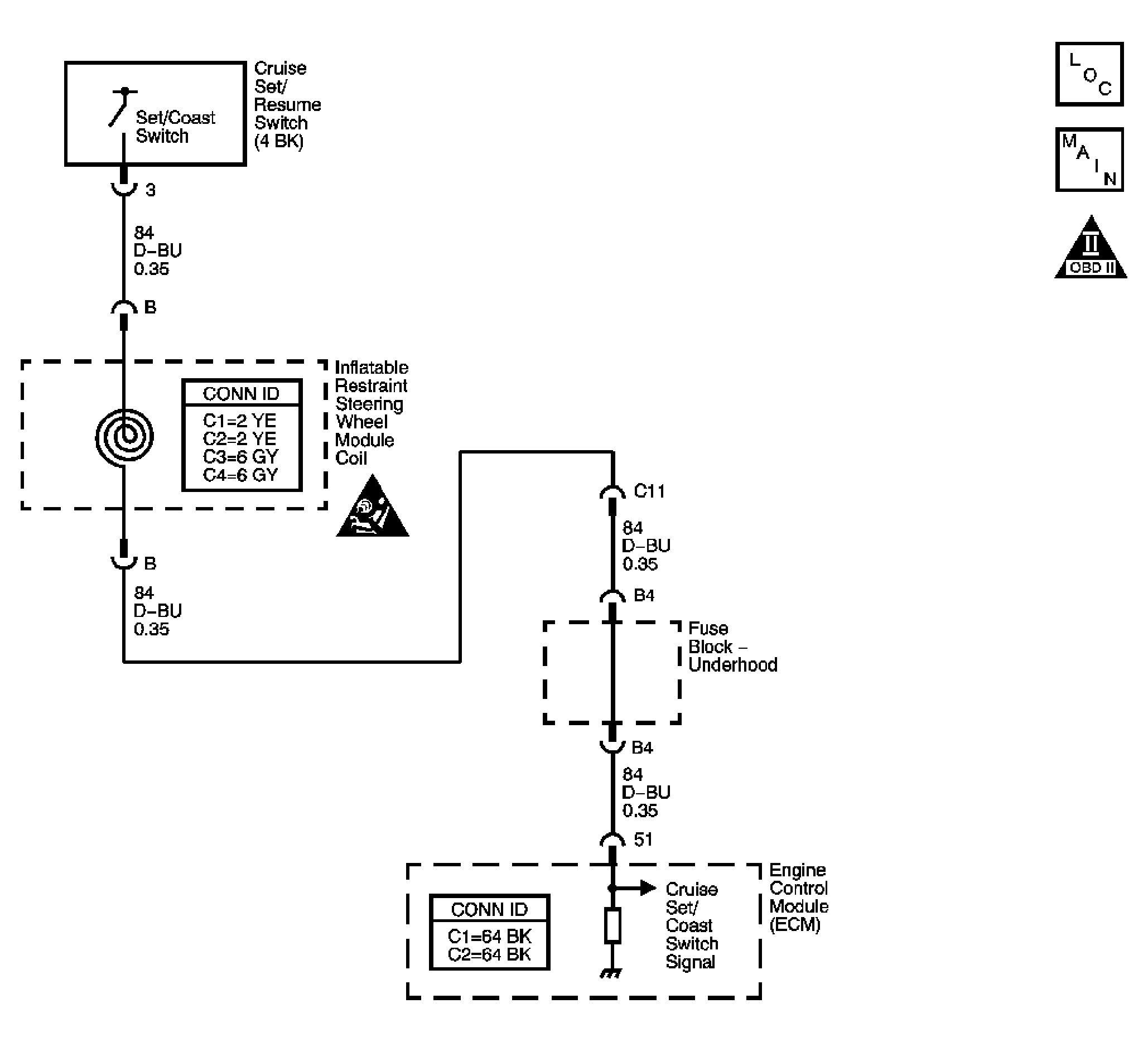

Fig 1: Cruise Control Set/Coast Switch Circuit
GM1243028Courtesy of GENERAL MOTORS CORP.
