Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cluster bezel. Refer to BEZEL REPLACEMENT-INSTRUMENT PANEL (I/P) CLUSTER .
  2. Remove the 3 screws (1).
  3. Pull out the radio assembly slightly in other to gain access to the connectors.
  4. Disconnect the wire connectors.
  5. Disconnect the coaxial cable from the radio.
  6. Remove the radio assembly from the I/P.

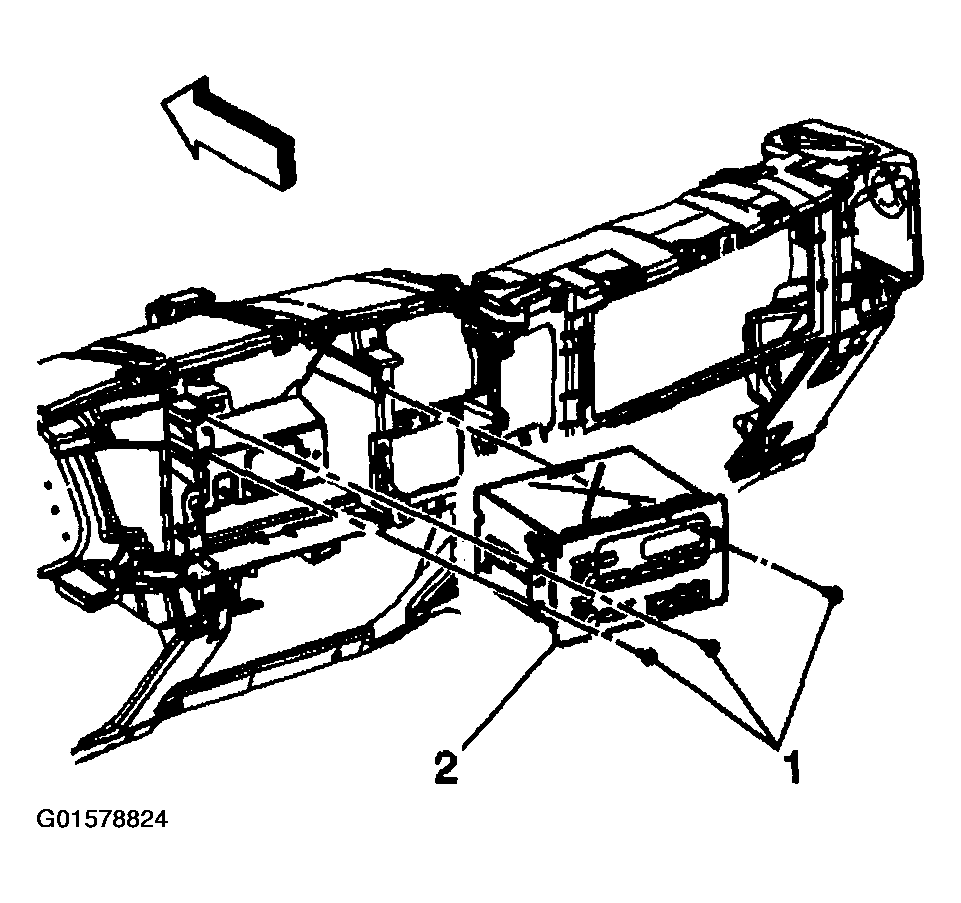

    Fig 1: Non-Digital Radio
    G01578824Courtesy of GENERAL MOTORS CORP.
