Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the following to the lamp sockets, if removed:
    • The stop lamp bulb (1)
    • The turn signal lamp bulb (6)
  2. Install the following to the tail lamp:
    • The stop lamp socket (2)
    • The turn signal lamp socket (5)
    NOTE: Refer to FASTENER NOTICE .
  3. Install the tail lamp (7) to the vehicle. Secure the tail lamp (7) with the 3 nuts (3).

    Tighten

    Tighten the tail lamp nuts to 10 N.m (89 lb in).

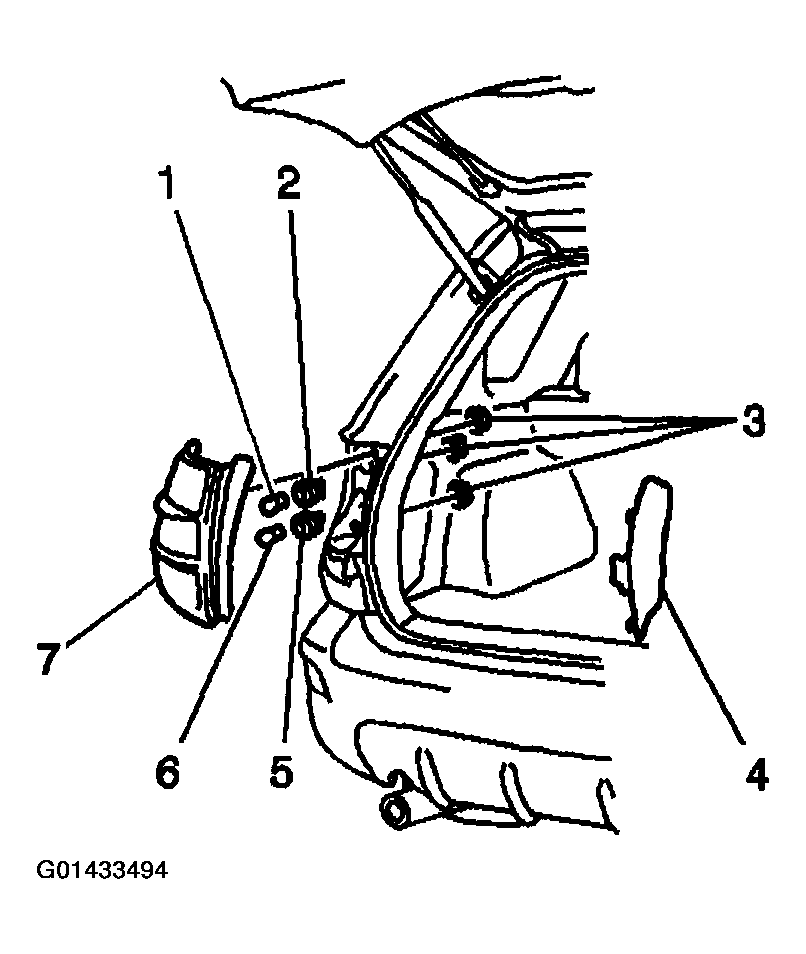

    Fig 1: Installing Tail Lamp, Sockets & Bulbs
    G01433494Courtesy of GENERAL MOTORS CORP.
  4. Connect the tail lamp electrical connectors.
  5. Install the rear compartment trim panel (4) to the vehicle.
  6. Close the rear compartment lid.
