Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front suspension crossmember. Refer to FRONT SUSPENSION CROSSMEMBER REPLACEMENT (FWD)  or FRONT SUSPENSION CROSSMEMBER REPLACEMENT (AWD)  .
  2. Remove the 2 bolts (1,4) and the 1 nut (3) in order to remove the control arm from the crossmember.

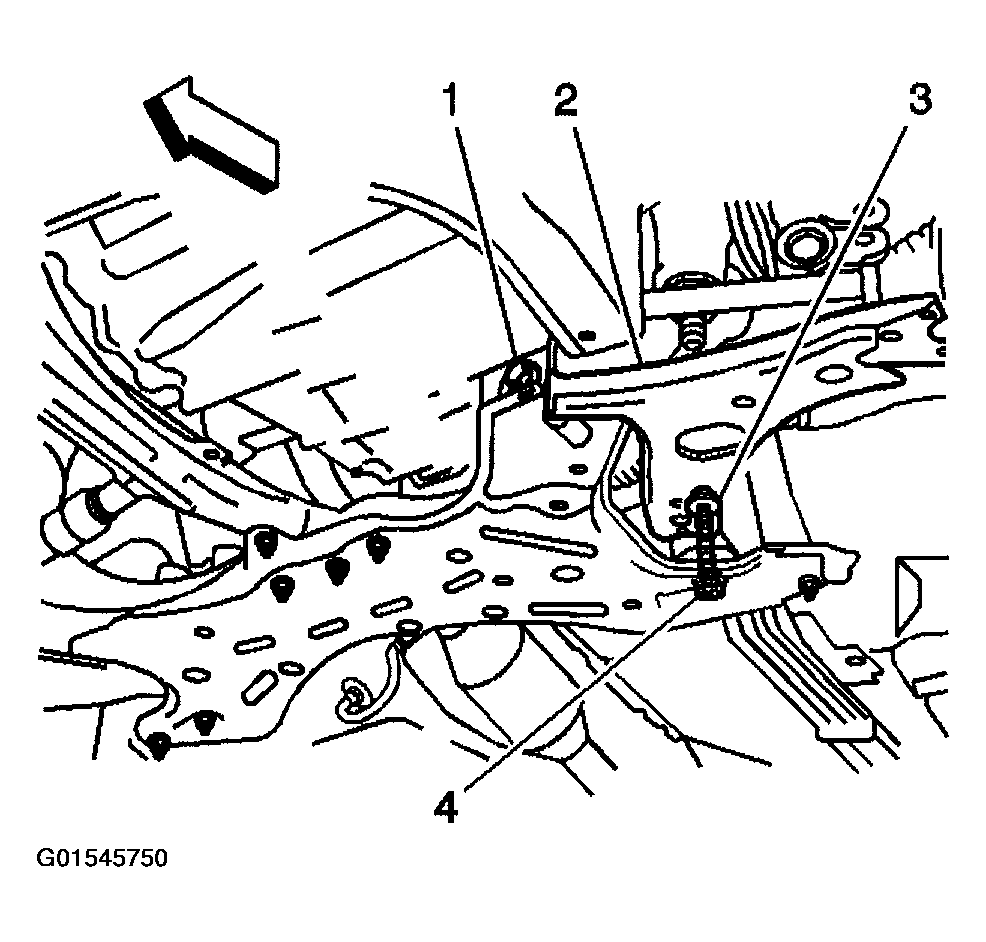

    Fig 1: Removing Lower Control Arm
    G01545750Courtesy of GENERAL MOTORS CORP.
