Installation Procedure

  1. Connect the electrical connectors as necessary.
  2. Install the switch to the instrument panel.

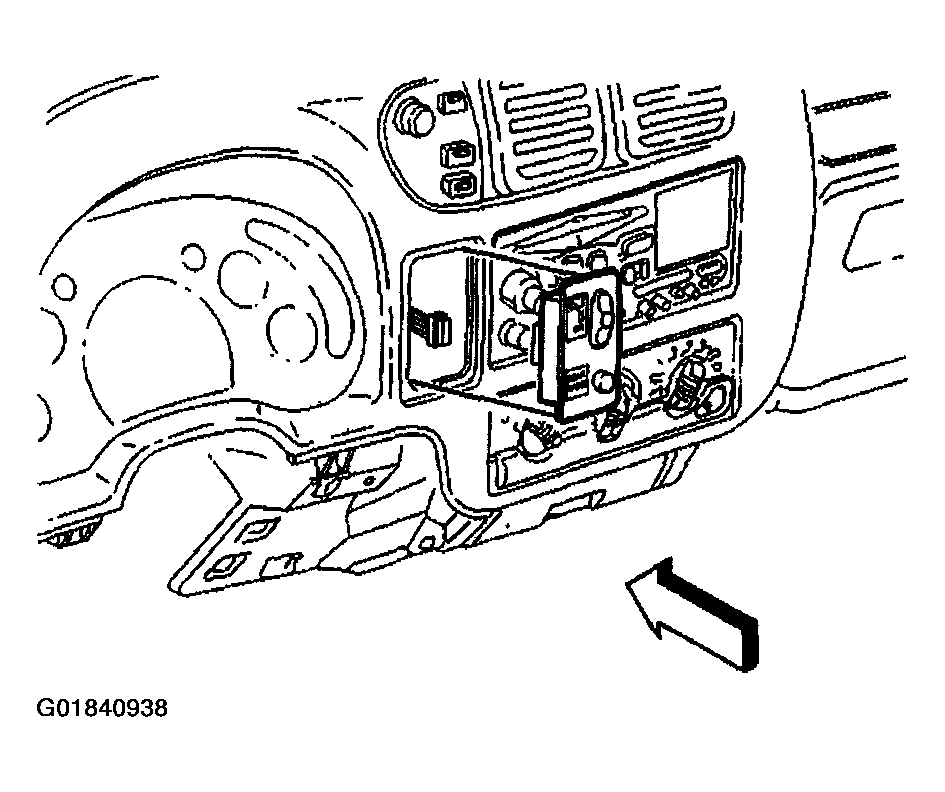

    Fig 1: Locating Wipers/Washer Switch
    G01840938Courtesy of GENERAL MOTORS CORP.
  3. Connect the negative battery cable.
