Headlamp Ballast-To-Radiator Support

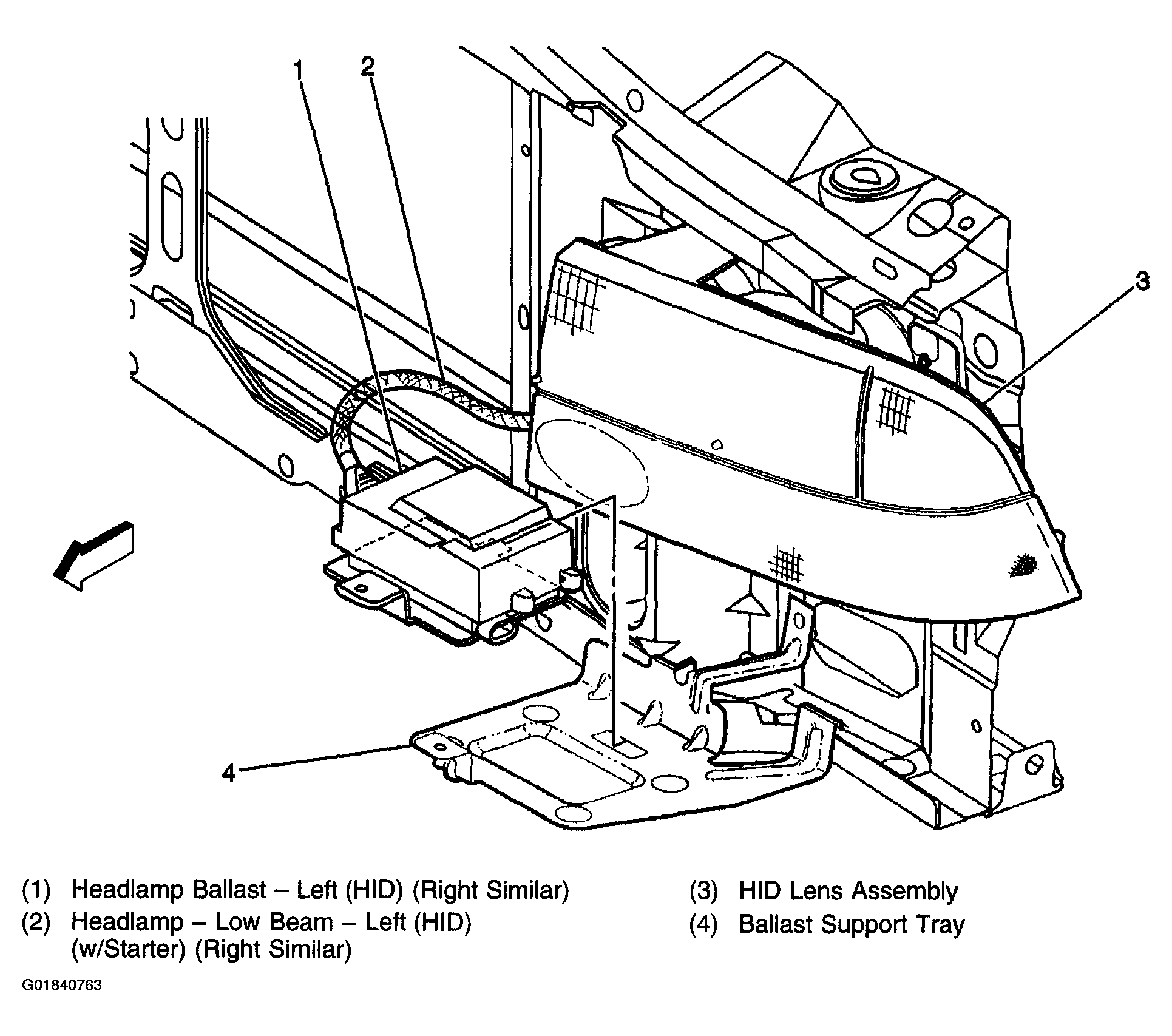

Fig 1: Headlamp Ballast-To-Radiator Support (Blazer & Jimmy Canadian Only)
G01840763Courtesy of GENERAL MOTORS CORP.
