HVAC Control Assembly Connector End View - C1

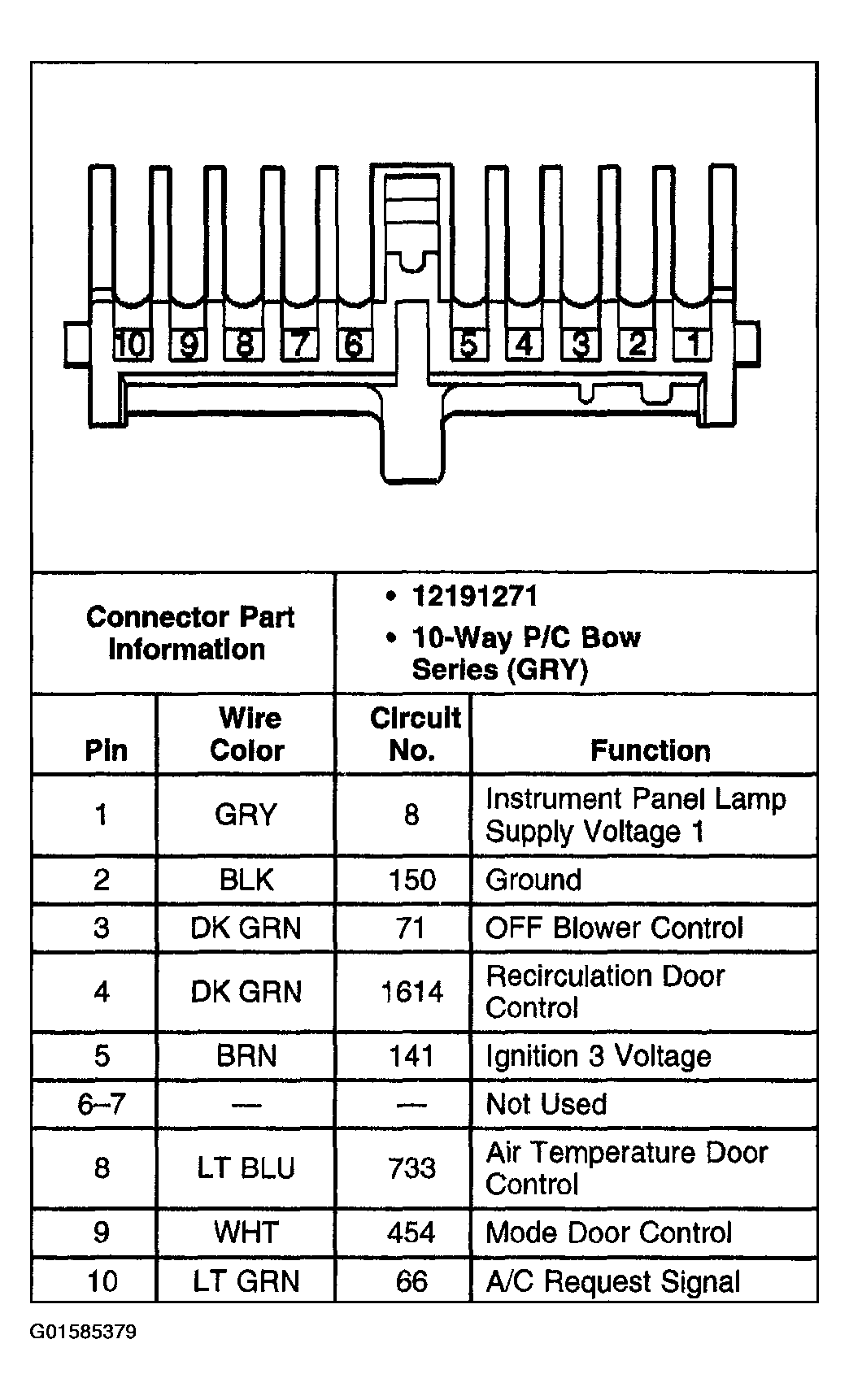

Fig 1: HVAC Control Assembly Connector End View - C1
Courtesy of GENERAL MOTORS CORP.
