Recirculation Door Motor Connector End View

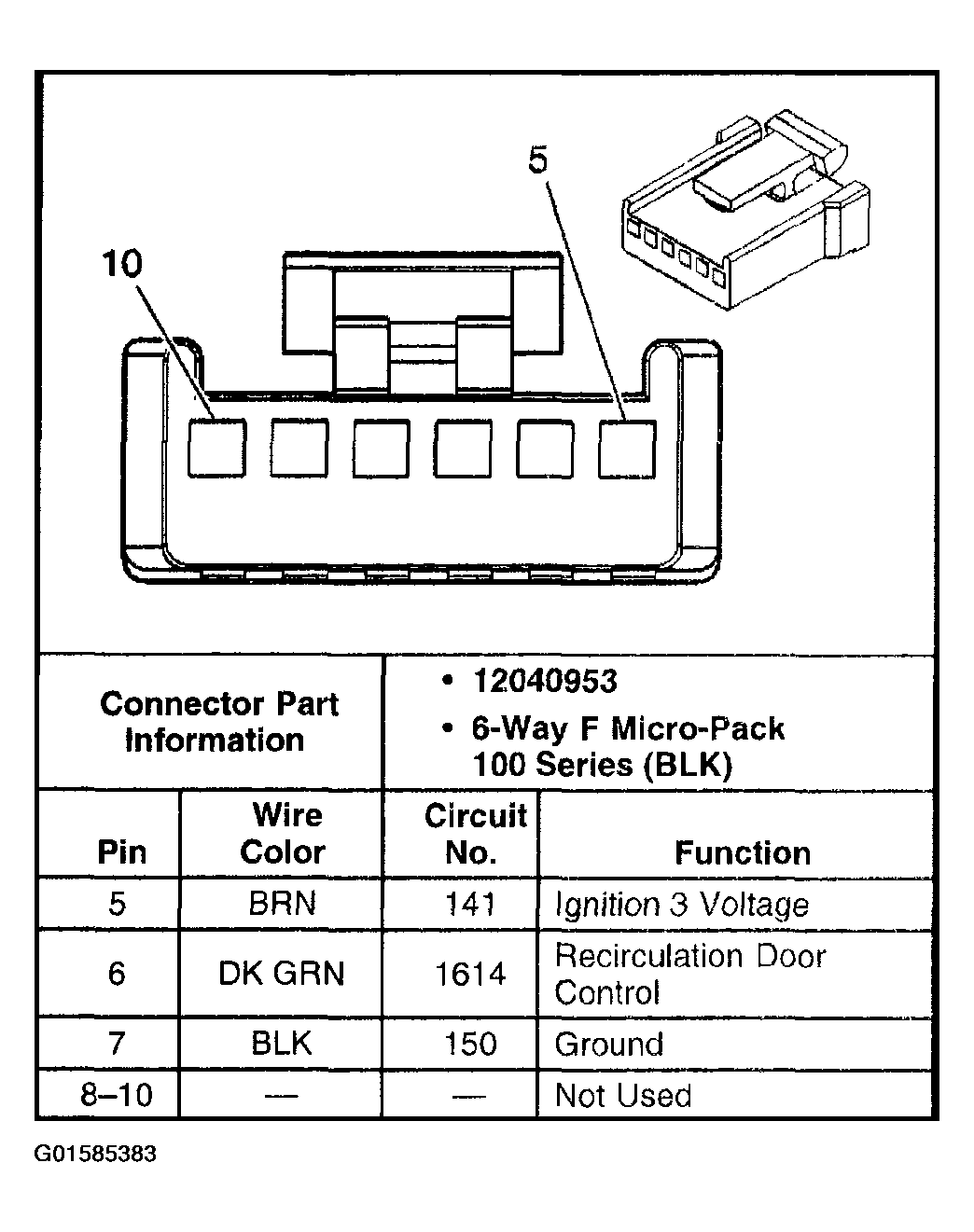

Fig 1: Recirculation Door Motor Connector End View
G01585383Courtesy of GENERAL MOTORS CORP.
