Body Control Module (BCM) C1

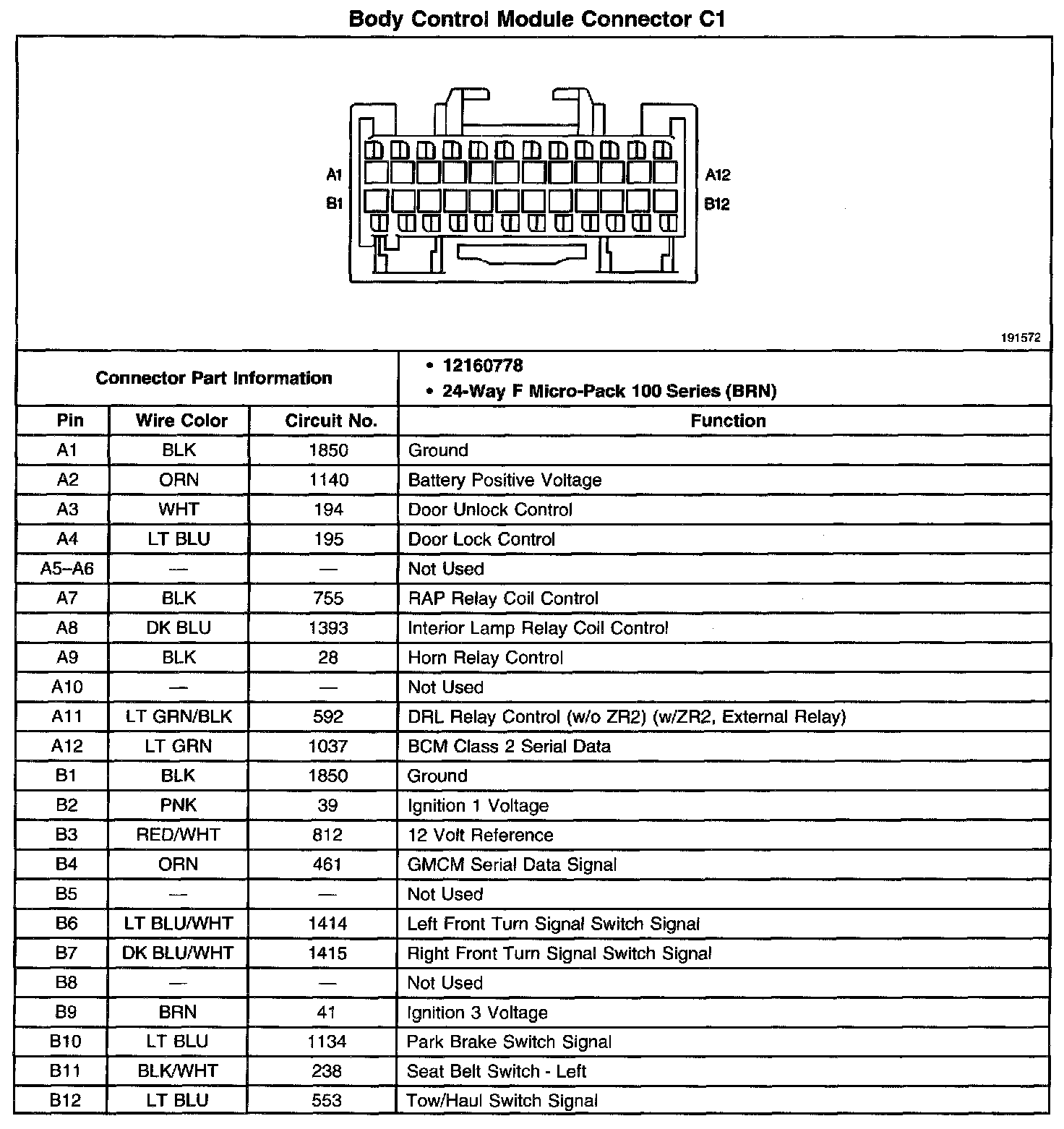

Body Control Module Connector C1:





"For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application ID". RPO Codes
