Powertrain Control Module Connector End Views
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

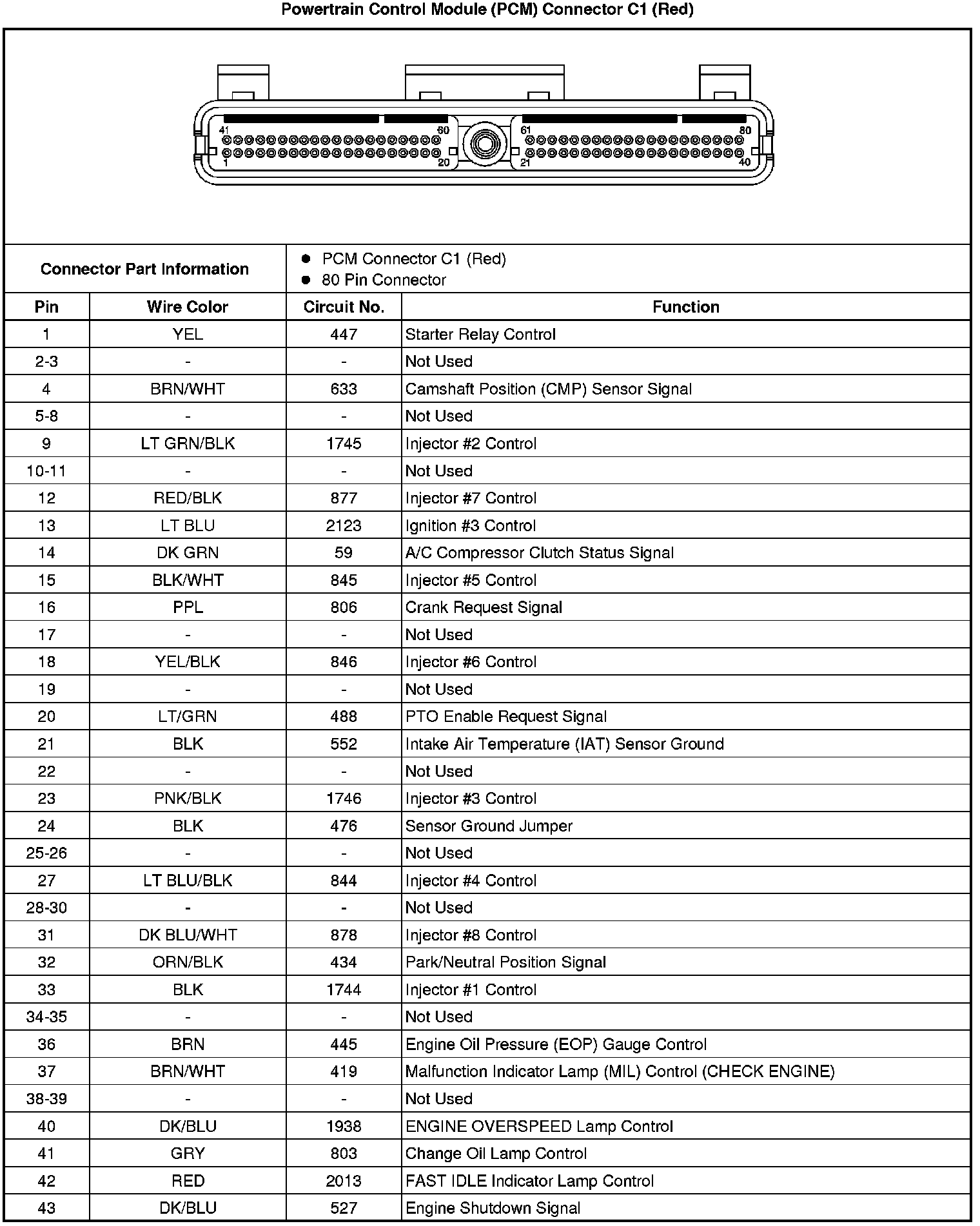

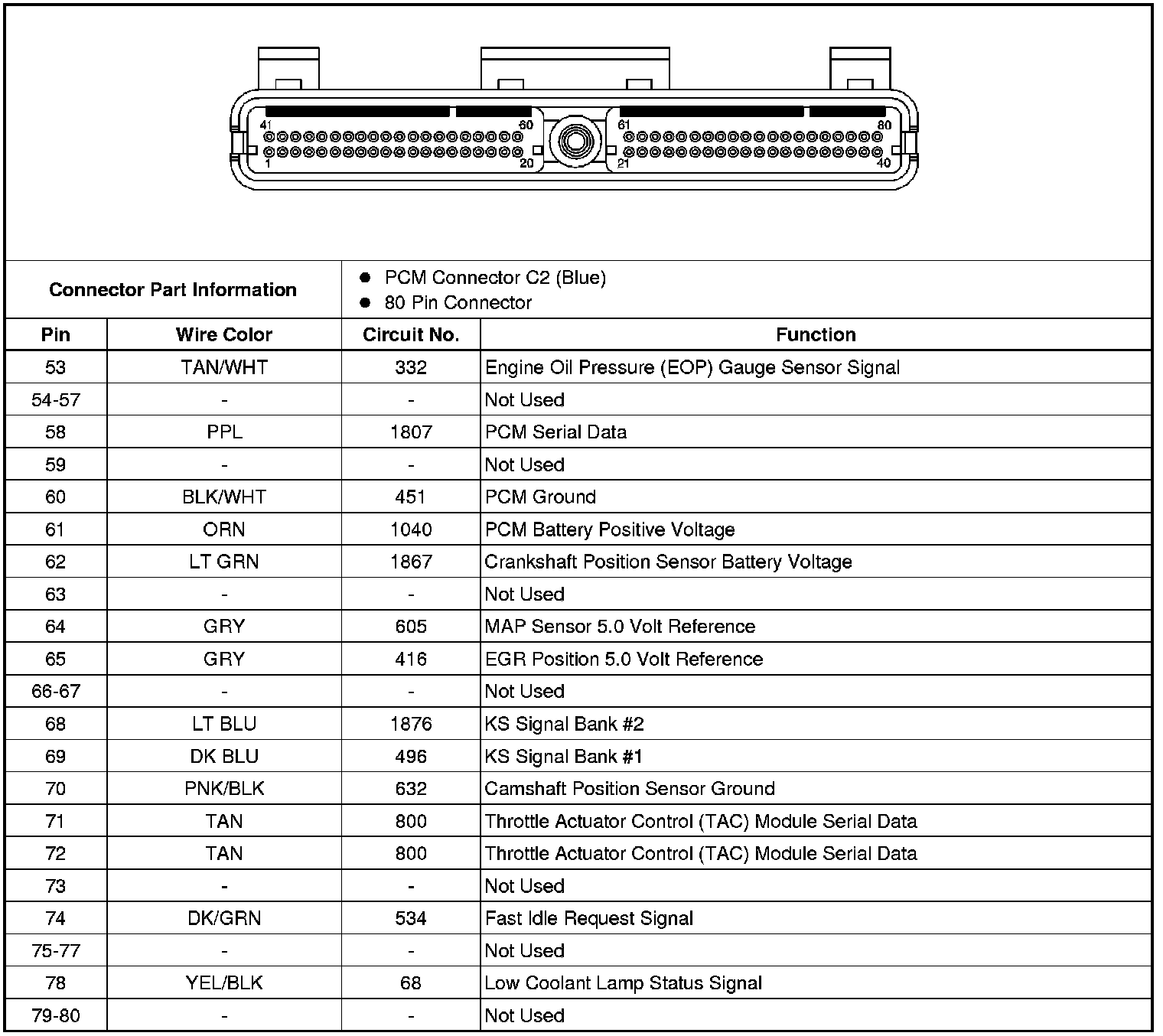

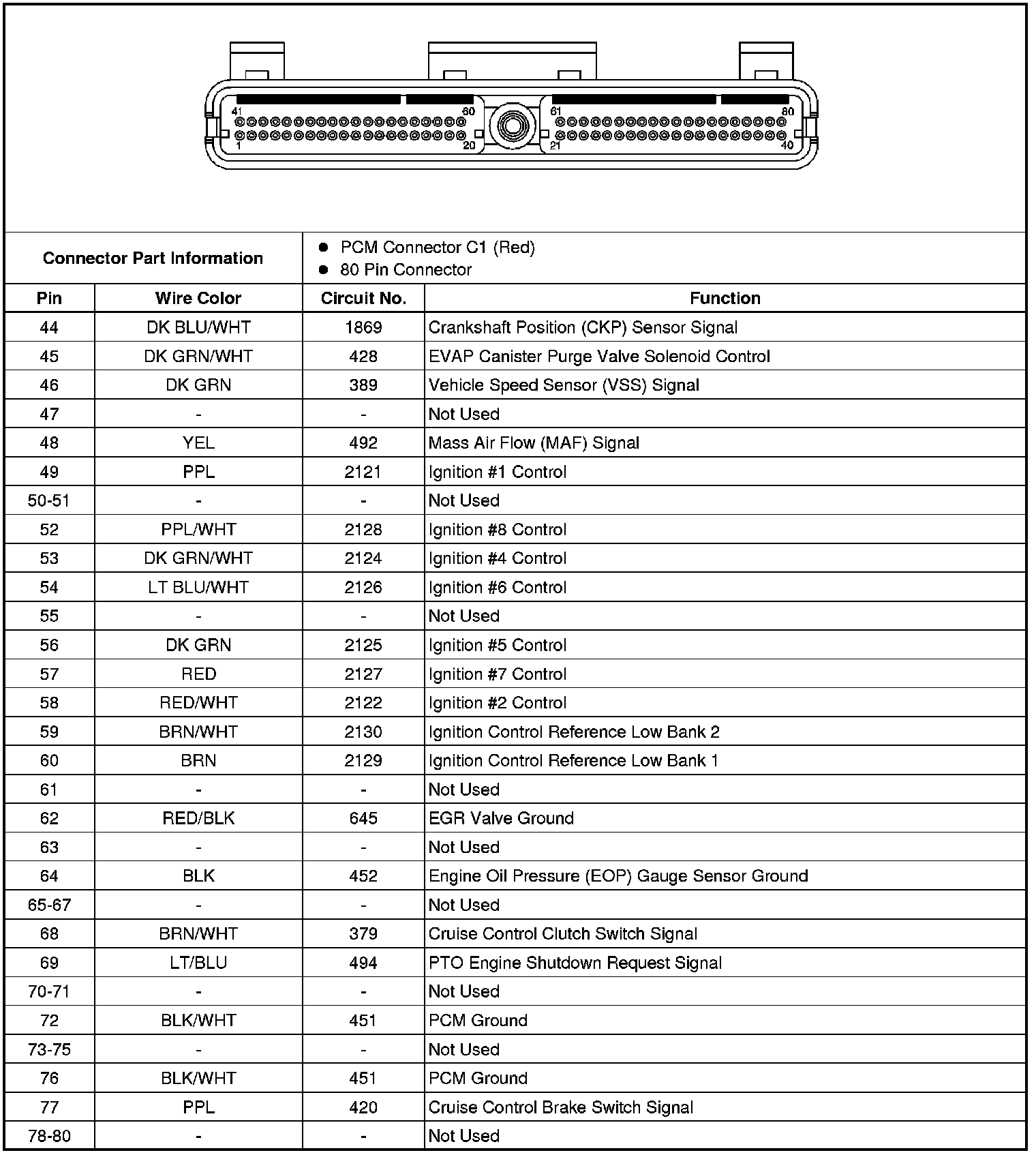

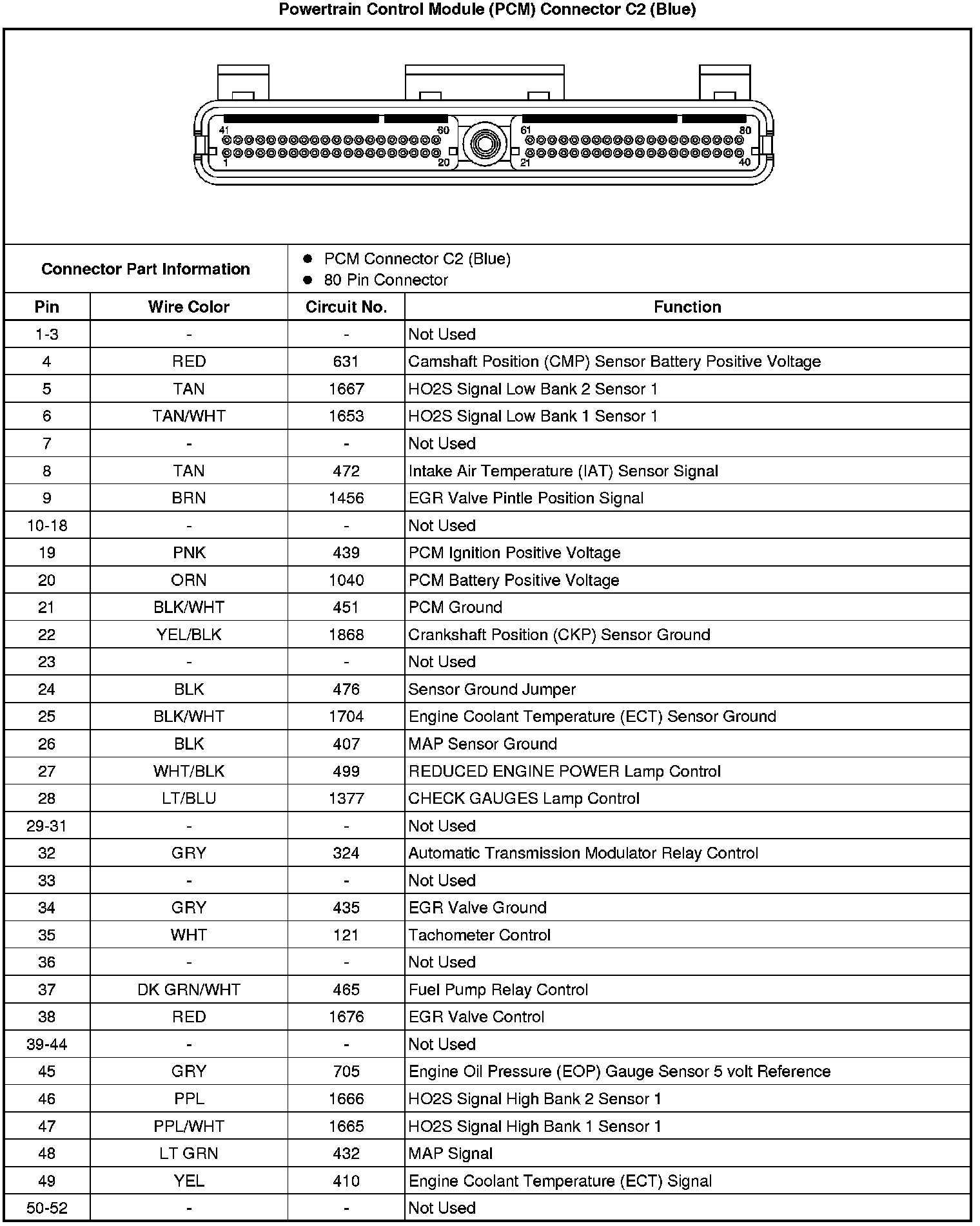

Powertrain Control Module Connector End Views
Powertrain Control Module Connector End Views
