Test F: Lock Inoperative, Unlock Operates
For test procedures, refer to illustration. See
Fig 1
and
Figure
.

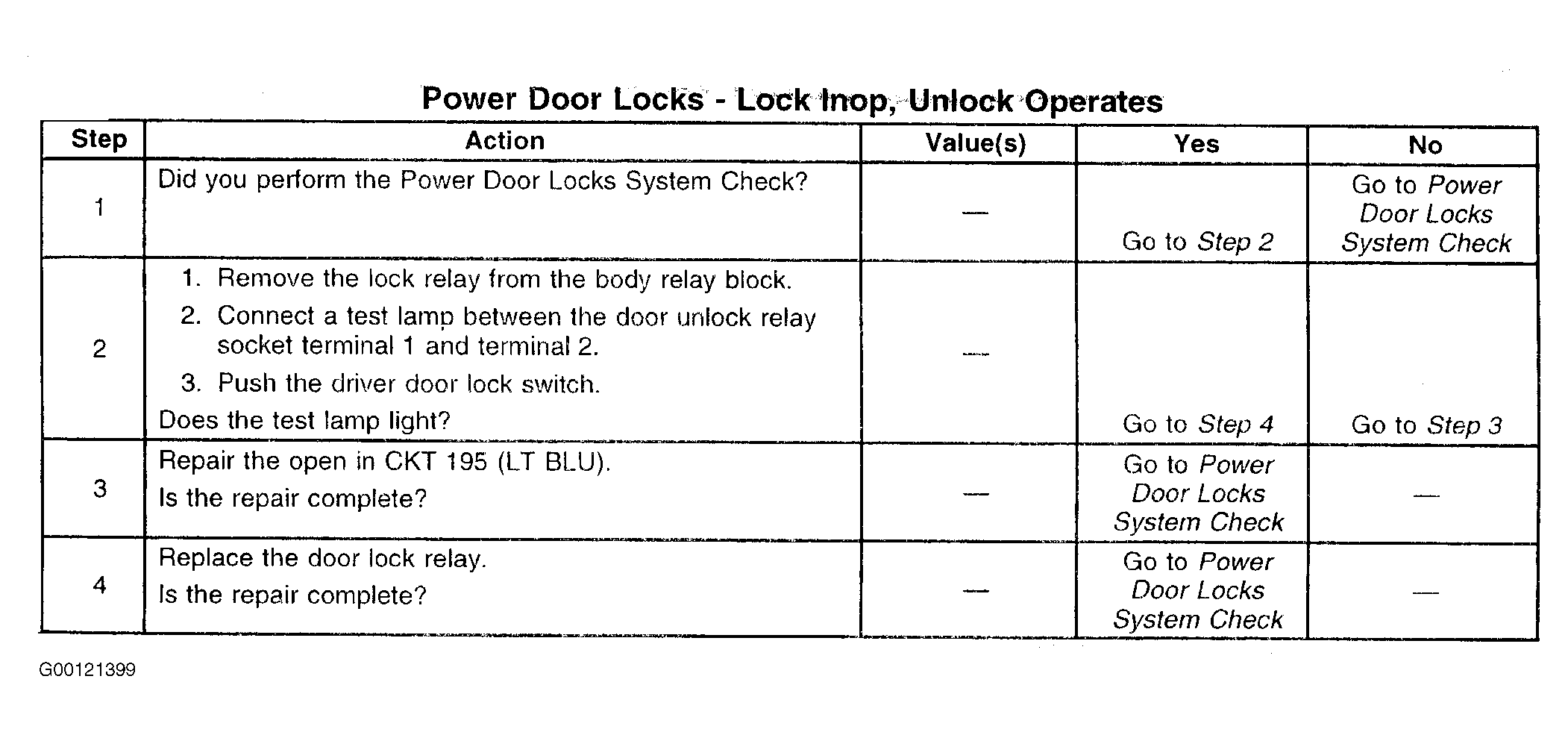

Fig 1: Test F: Lock Inoperative, Unlock Operates
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
