C211 (W/ Column Shift Automatic Transmission)

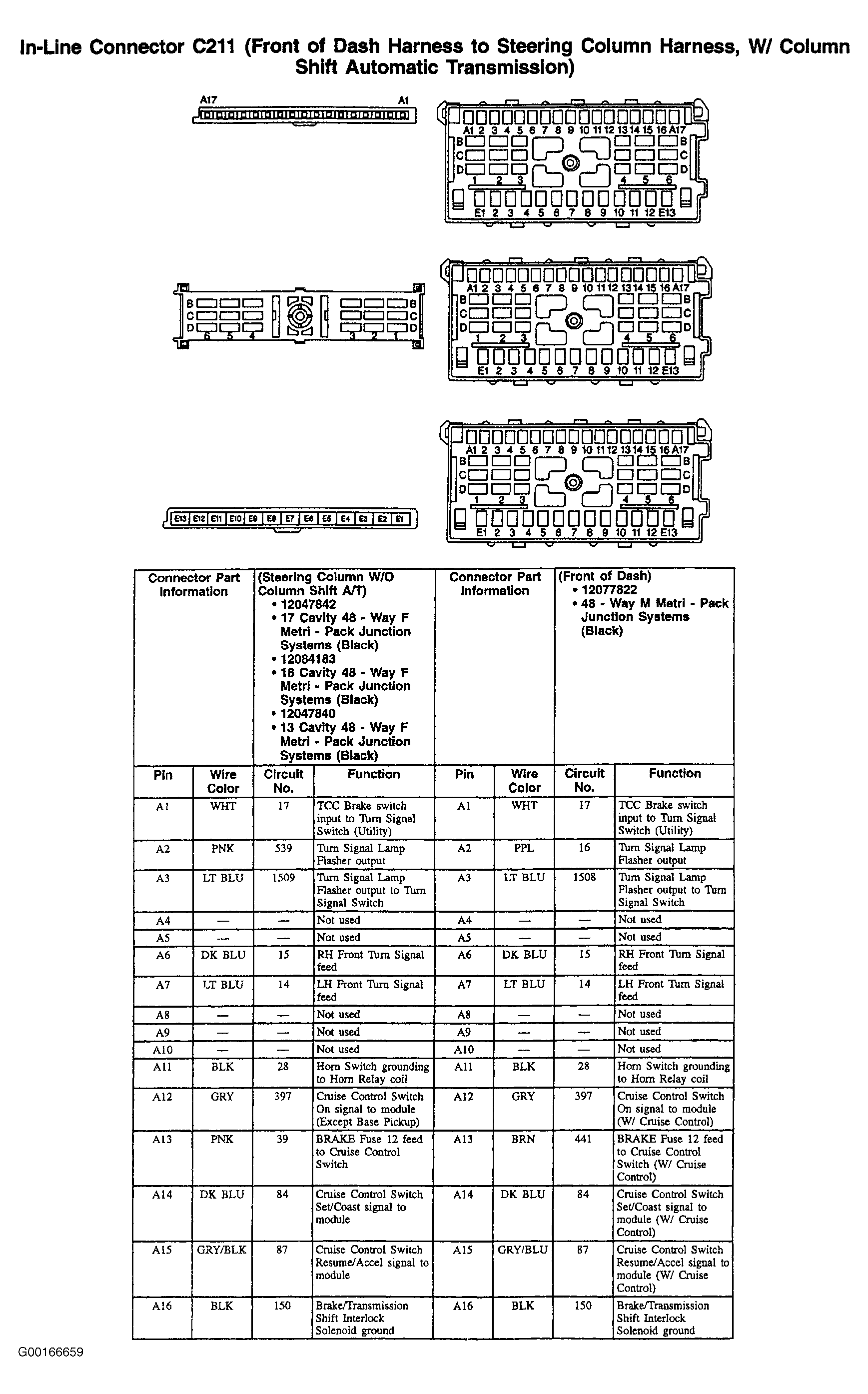

Fig 1: C211 (W/ Column Shift Automatic Transmission) - 48-Pin Connector, Black (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

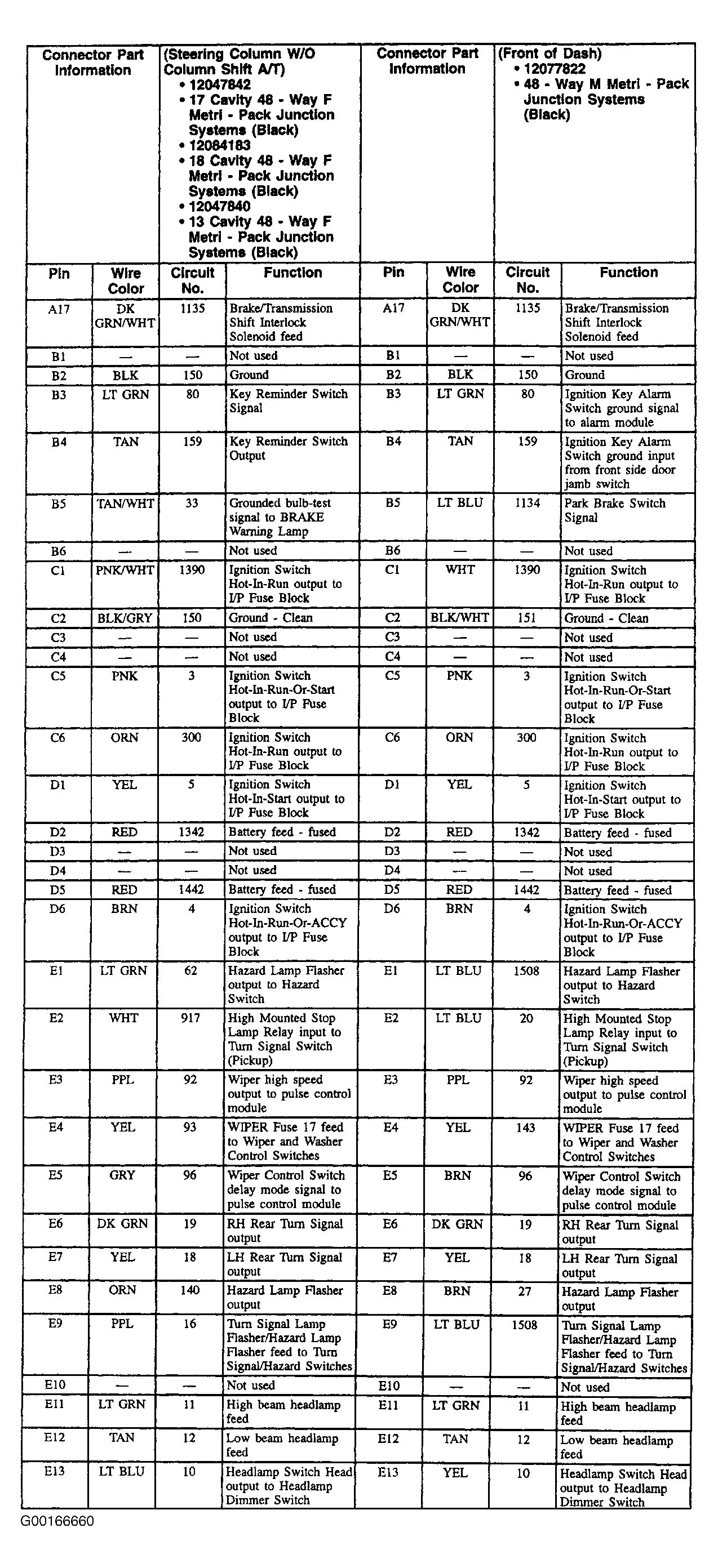

Fig 2: C211 (W/ Column Shift Automatic Transmission) - 48-Pin Connector, Black (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
