Connector Terminal Identification
>>
C100 To C603
>>
C101 (W/ A/C)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
C101 (W/ A/C)

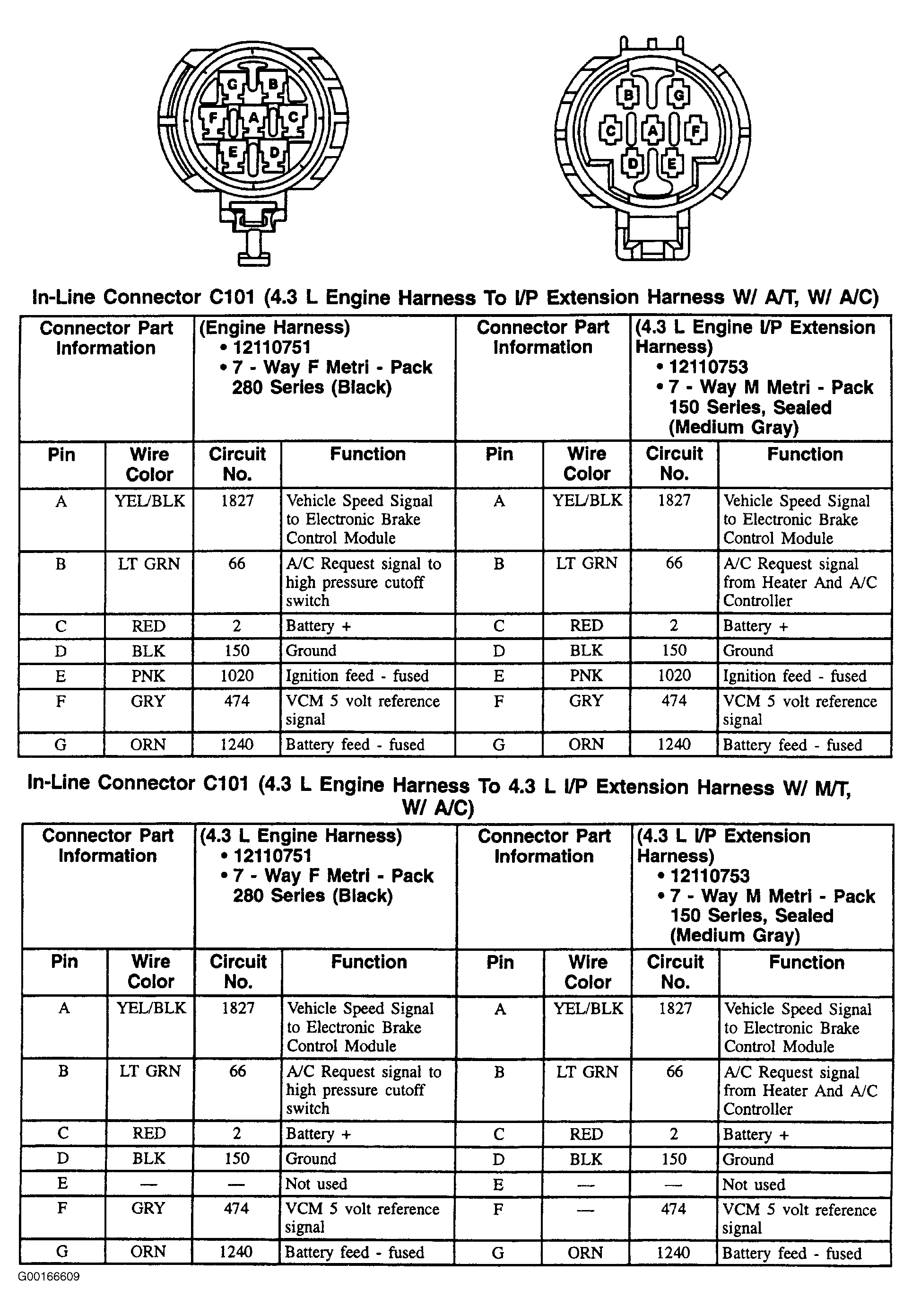

Fig 1: C101 (W/ A/C) - 7-Pin Connector, Black/Medium Gray
Courtesy of GENERAL MOTORS CORP.
