Data Link (Commercial Chassis - Gas)

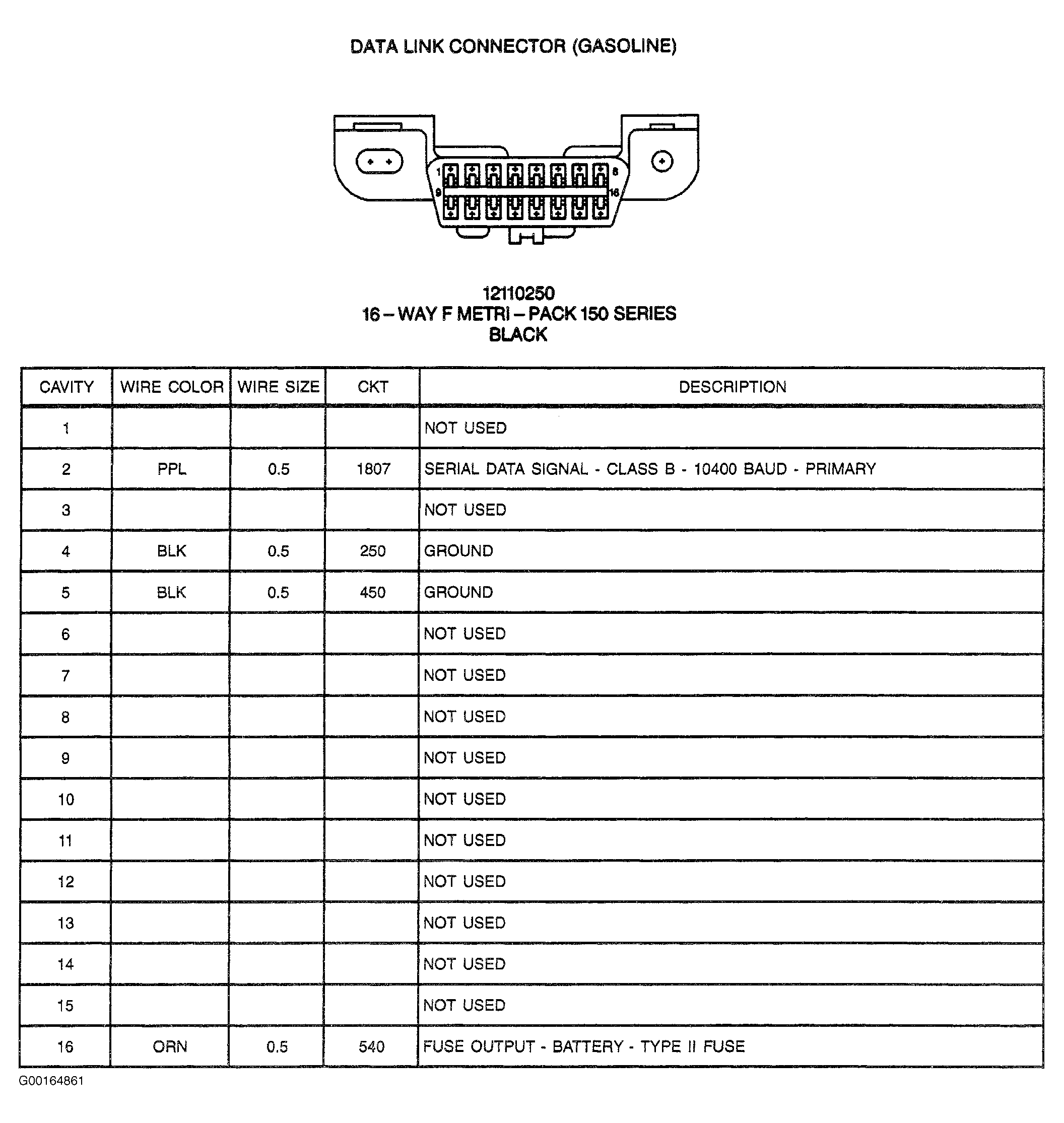

Fig 1: Data Link (Commercial Chassis - Gas) - 16-Pin Connector, Black
G00164861Courtesy of GENERAL MOTORS CORP.
