Connectors C100 To C400: C109

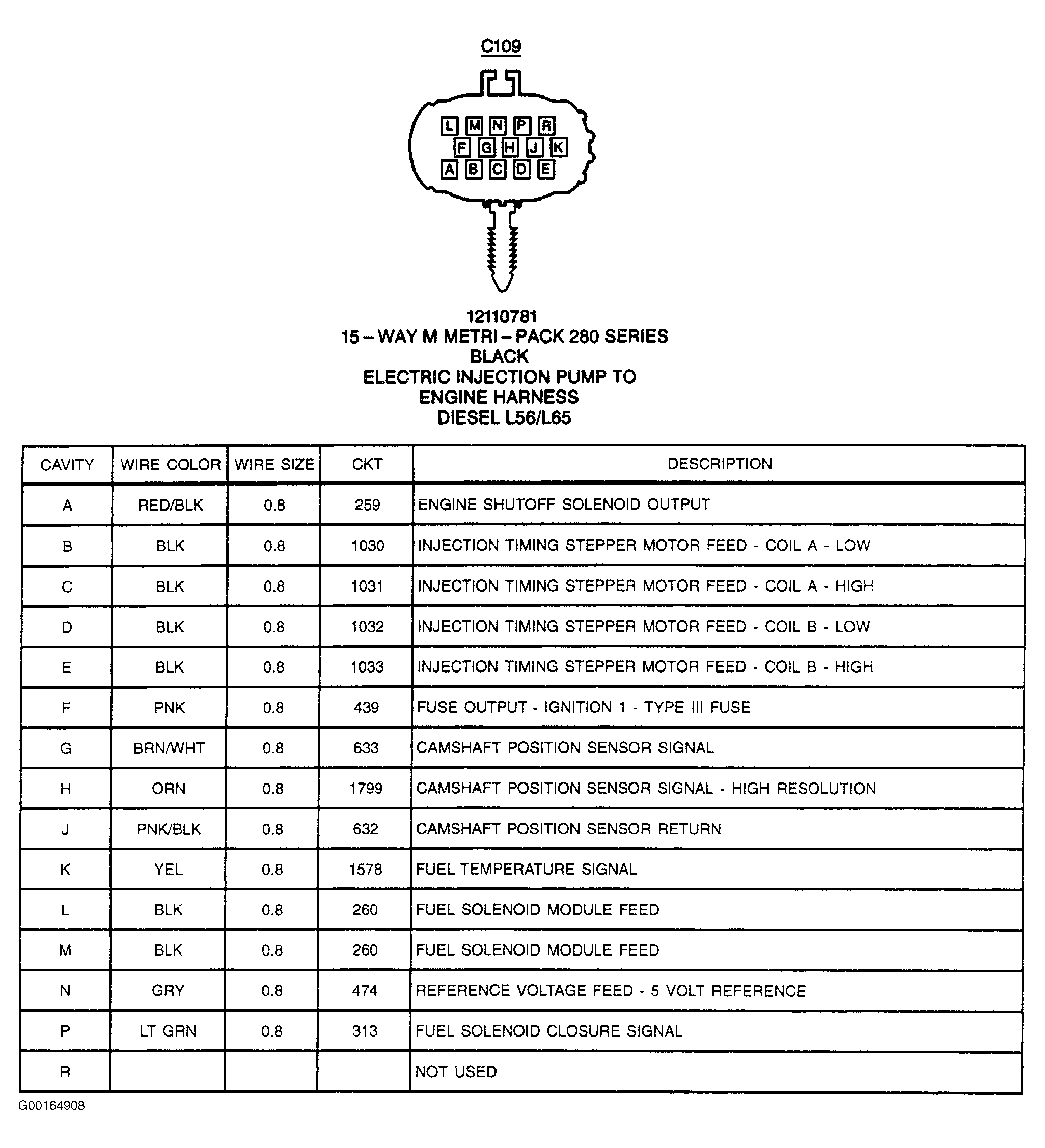

Fig 1: C109 - 15-Pin Connector, Black

G00164908

Courtesy of GENERAL MOTORS CORP.
