Connector Identification

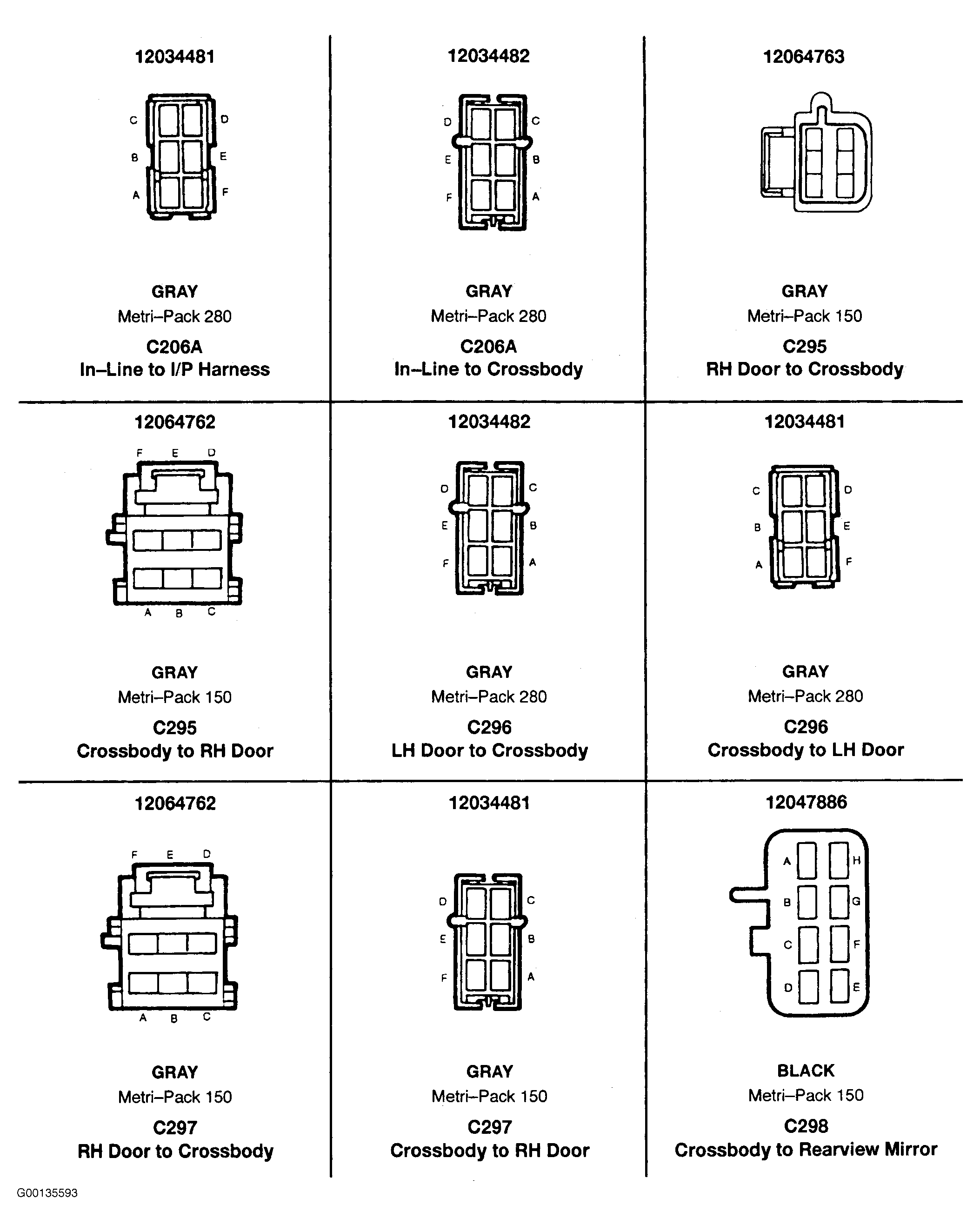

Fig 1: Connectors For Power Outside Rearview Mirrors (1 Of 2)
G00135593Courtesy of GENERAL MOTORS CORP.

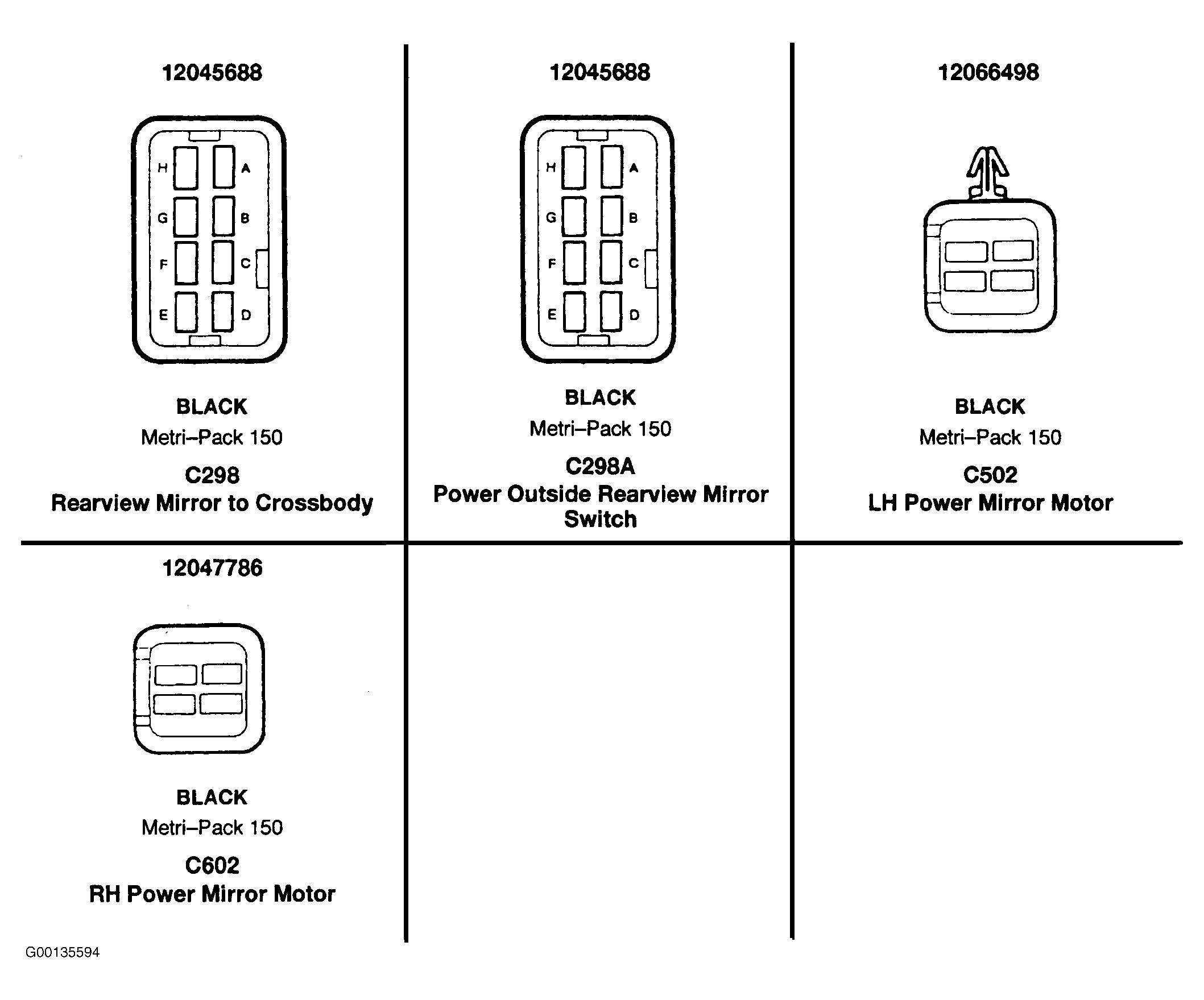

Fig 2: Connectors For Power Outside Rearview Mirrors (2 Of 2)
G00135594Courtesy of GENERAL MOTORS CORP.
