Transmitter Functions Do Not Operate

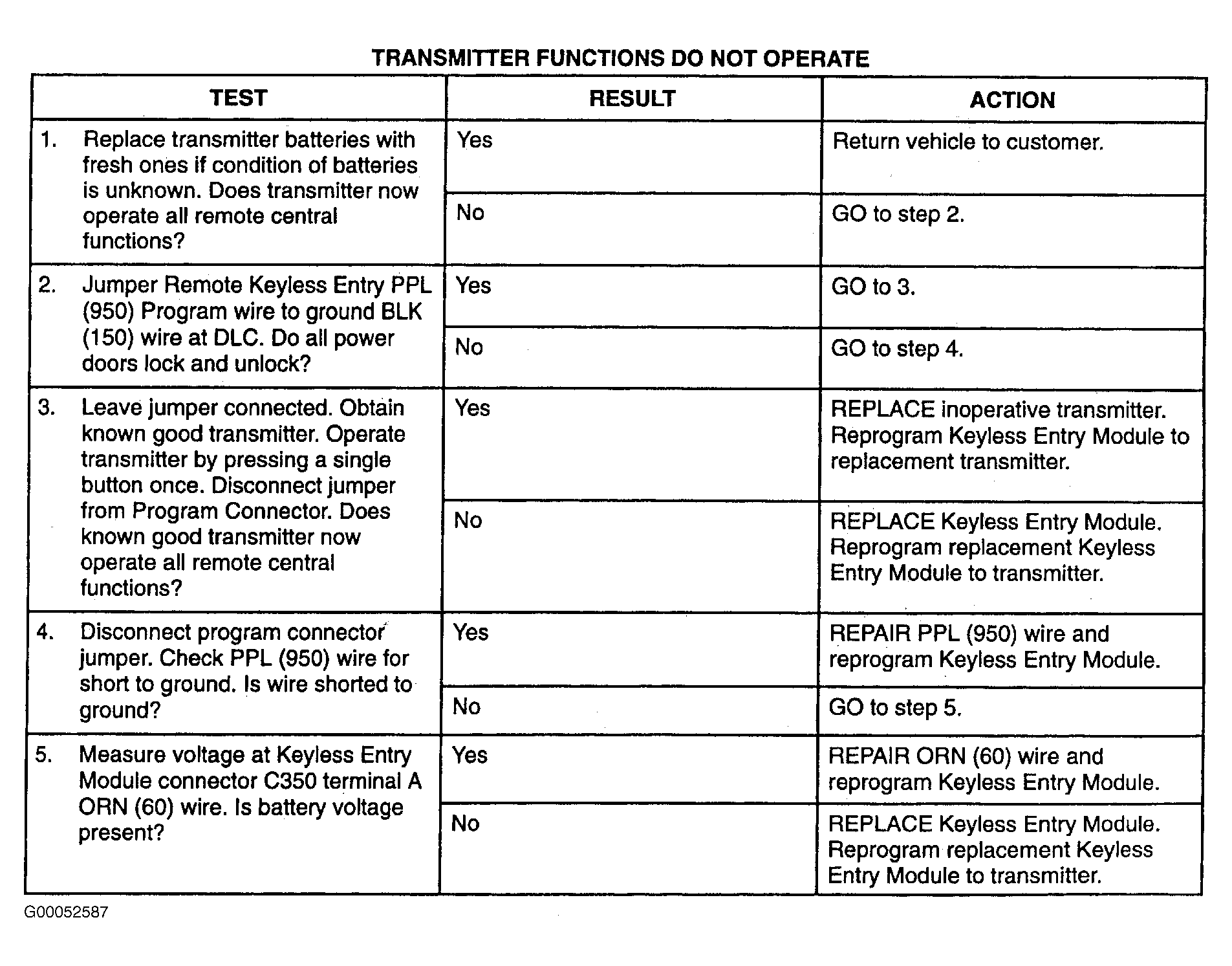

Fig 1: Transmitter Functions Do Not Operate - Steps 1-5
G00052587Courtesy of GENERAL MOTORS CORP.
