Electronic Brake Control Module

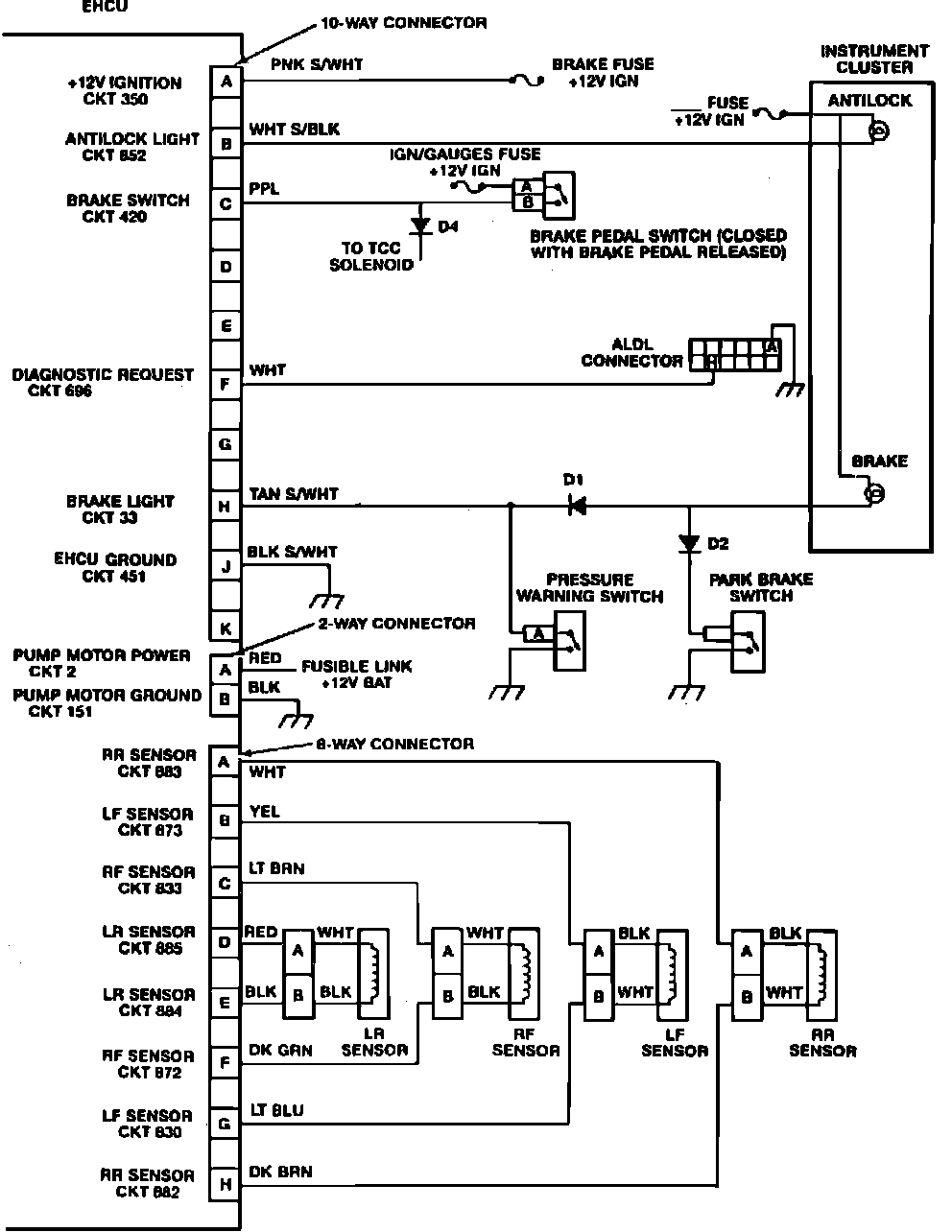

Fig. 7 Four Wheel Anti-lock Brake Wiring Circuit. Bravada, Astro/Safari & 2WD S/T:

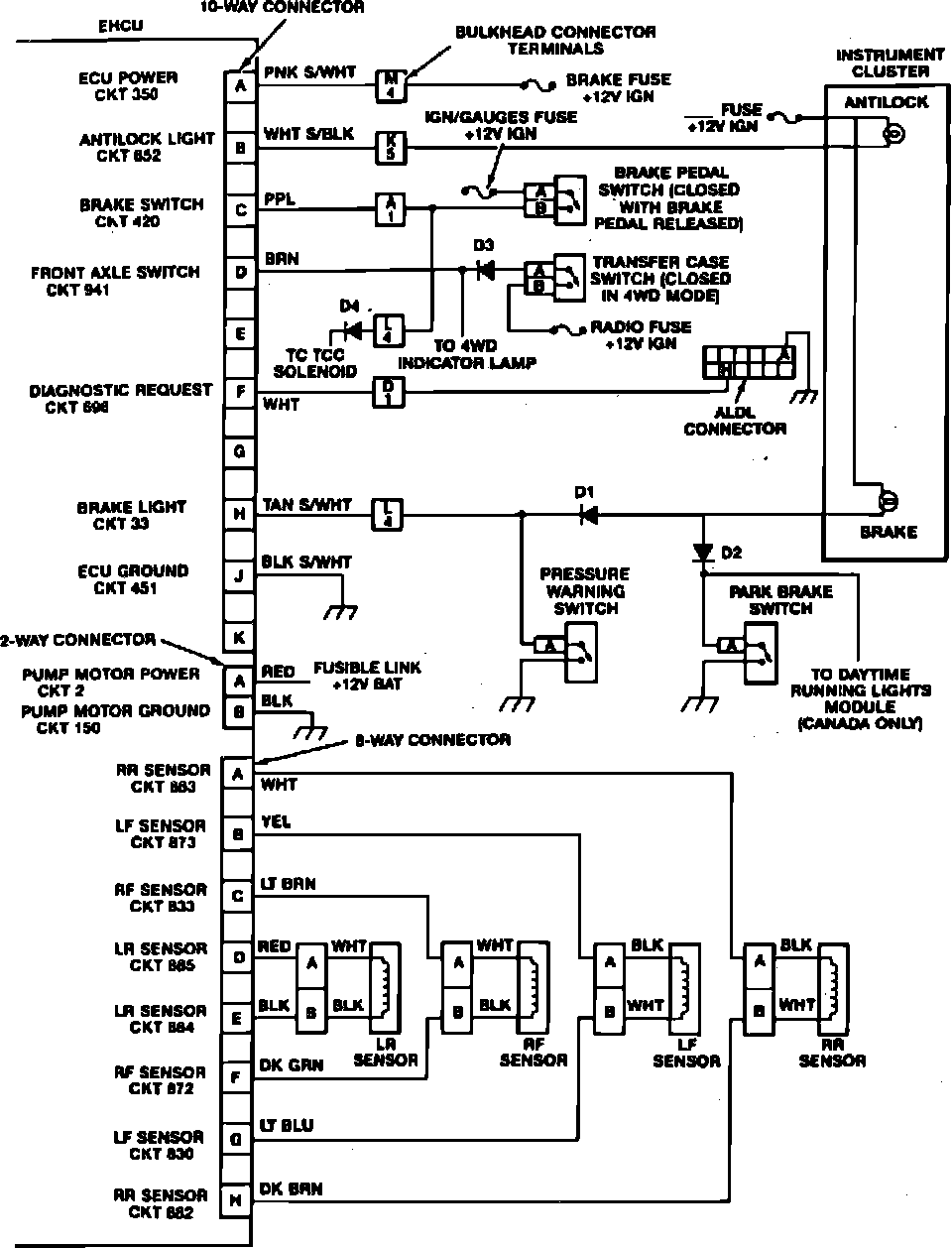

Fig. 8 Four Wheel Anti-lock Brake Wiring Circuit. 1992 4WD S/T:
