ECM Terminal Identification & Voltage Specifications

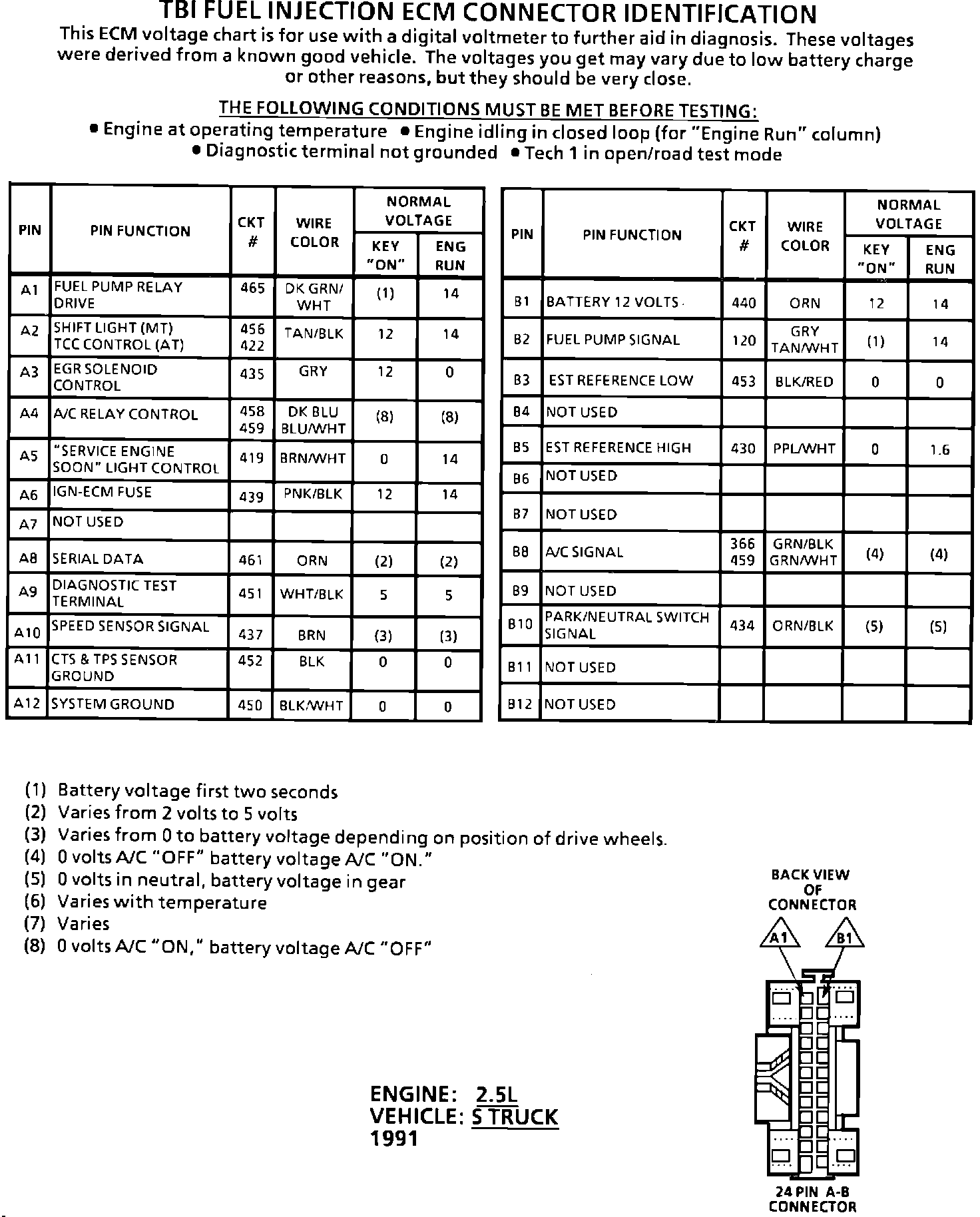

ECM Connector Terminal End View (Part 1 Of 2):

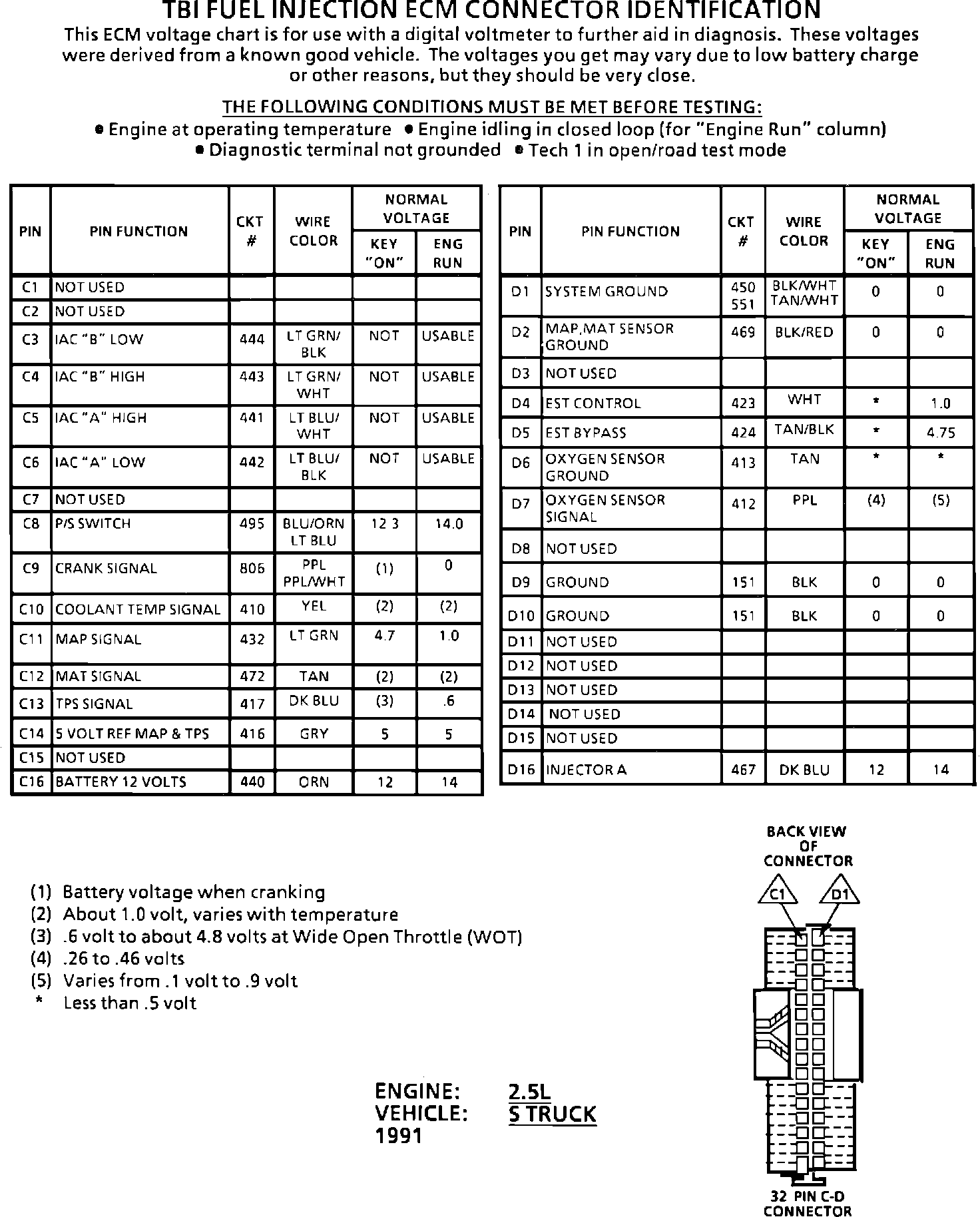

ECM Connector Terminal End View (Part 2 Of 2):
