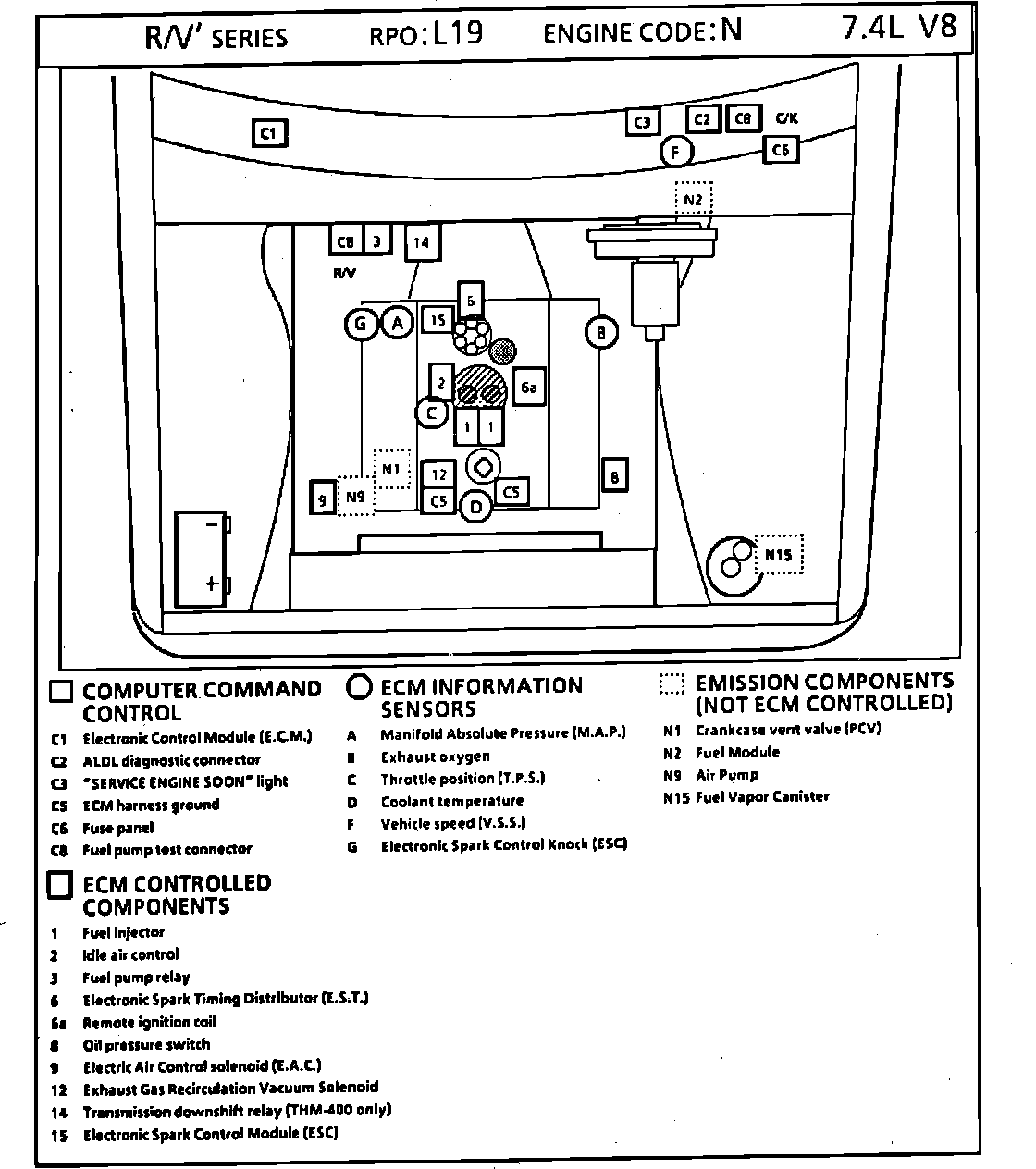

Electronic Control Module (ECM)

RH Side Of Engine.:




Engine Compartment.:






RH Rear Of Engine Compartment

Applicable to: R & V Series w/V8-454/7.4L TBI Engine
