VSS Input Buffer

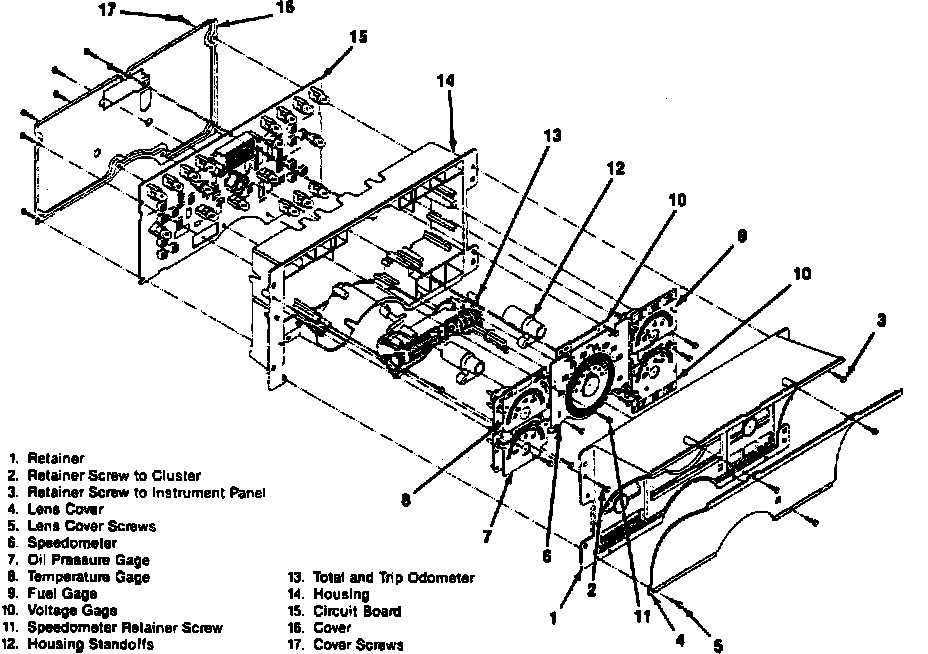

Fig. 2 Instrument Cluster Assembly:






The Vehicle Speed Sensor Input Buffer is located in the Instrument Cluster on the Circuit Board.
