Wiring Diagrams

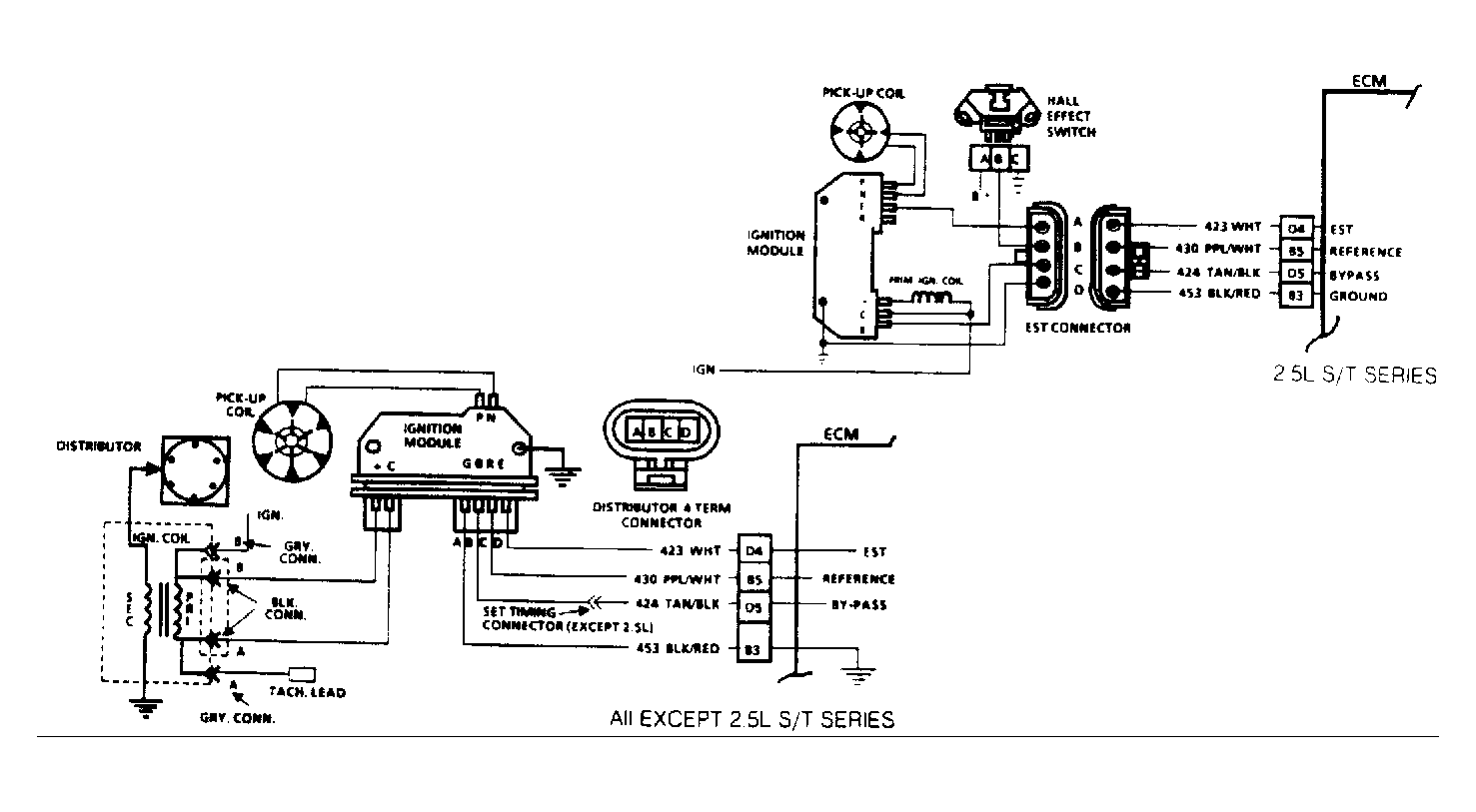

Fig 1: HEI/EST Ignition System Wiring Diagram (Includes Hall Effect Variant On 2.5L)
G72856Courtesy of GENERAL MOTORS CORP.
