Components & Functions: Accumulator
WARNING: This page does not describe the selected car, but rather 38 other vehicles, including the 1987 Pontiac Sunbird, 1987 Pontiac Safari, 1987 Pontiac Grand Prix, 1987 Pontiac Grand Am, and 1987 Pontiac Firebird. However, it is still accessible from the selected car via links, so may be relevant.
The accumulator is a refrigerant storing device, located at the evaporator outlet. This unit receives and stores vapor, some liquid and refrigerant oil from the evaporator.

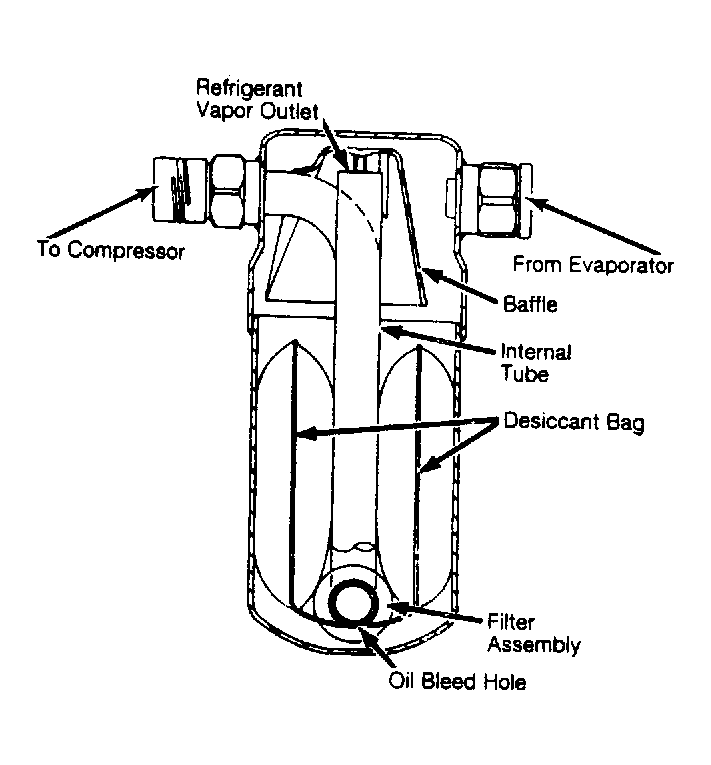

An oil bleed hole is located in the lower portion of the accumulator, assuring return of the oil to the compressor. This prevents oil from being trapped in the accumulator. A bag of desiccant is located in the bottom of the accumulator. See Fig 1.
