Generator Replacement

Remove

1. Disconnect negative battery terminal at battery.

CAUTION: Failure to observe this step may result in an injury from hot battery lead at generator.

2. Remove two terminal plug and battery leads on back of generator.

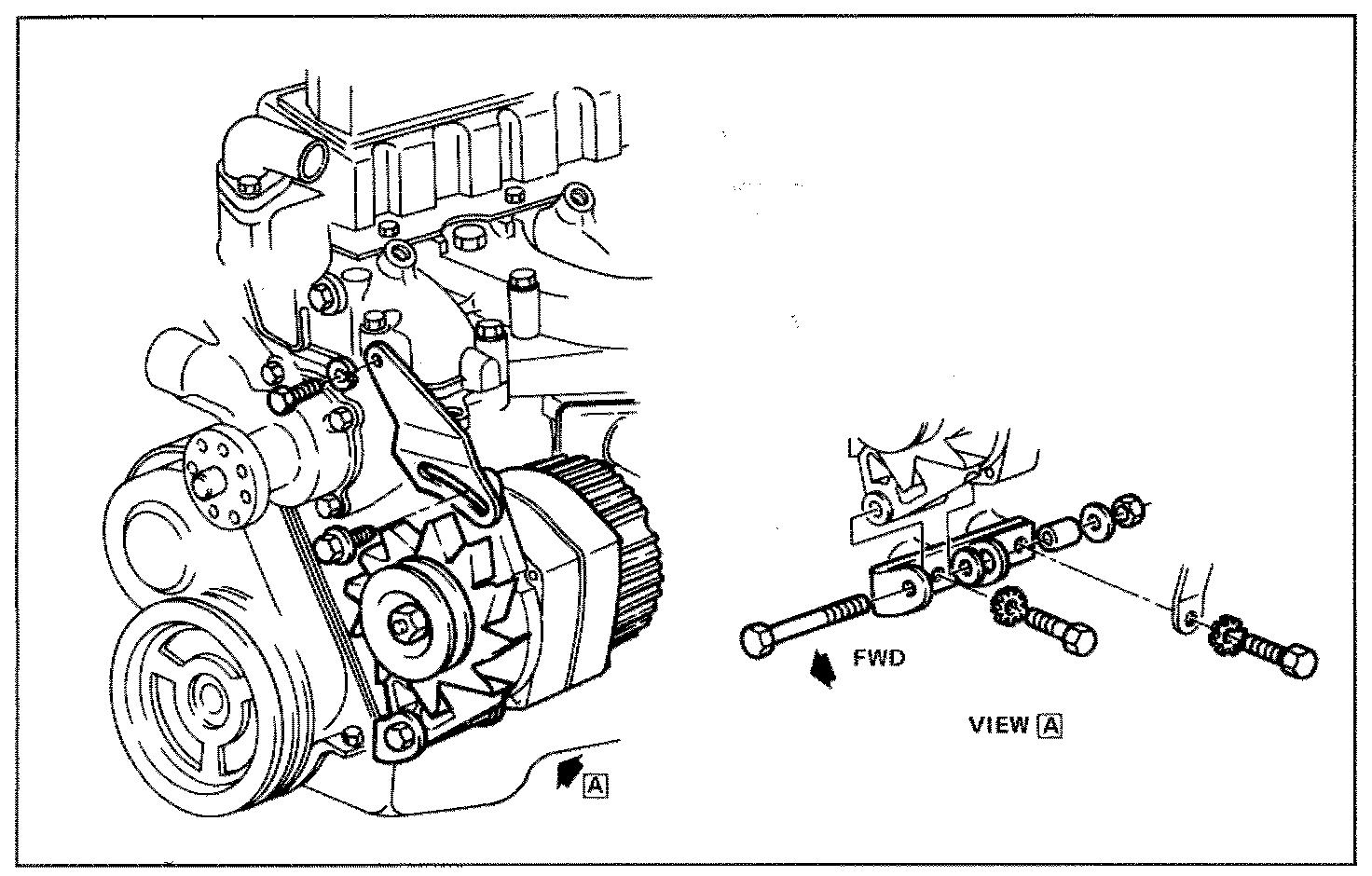

Generator Mounting - LE8/LT9:

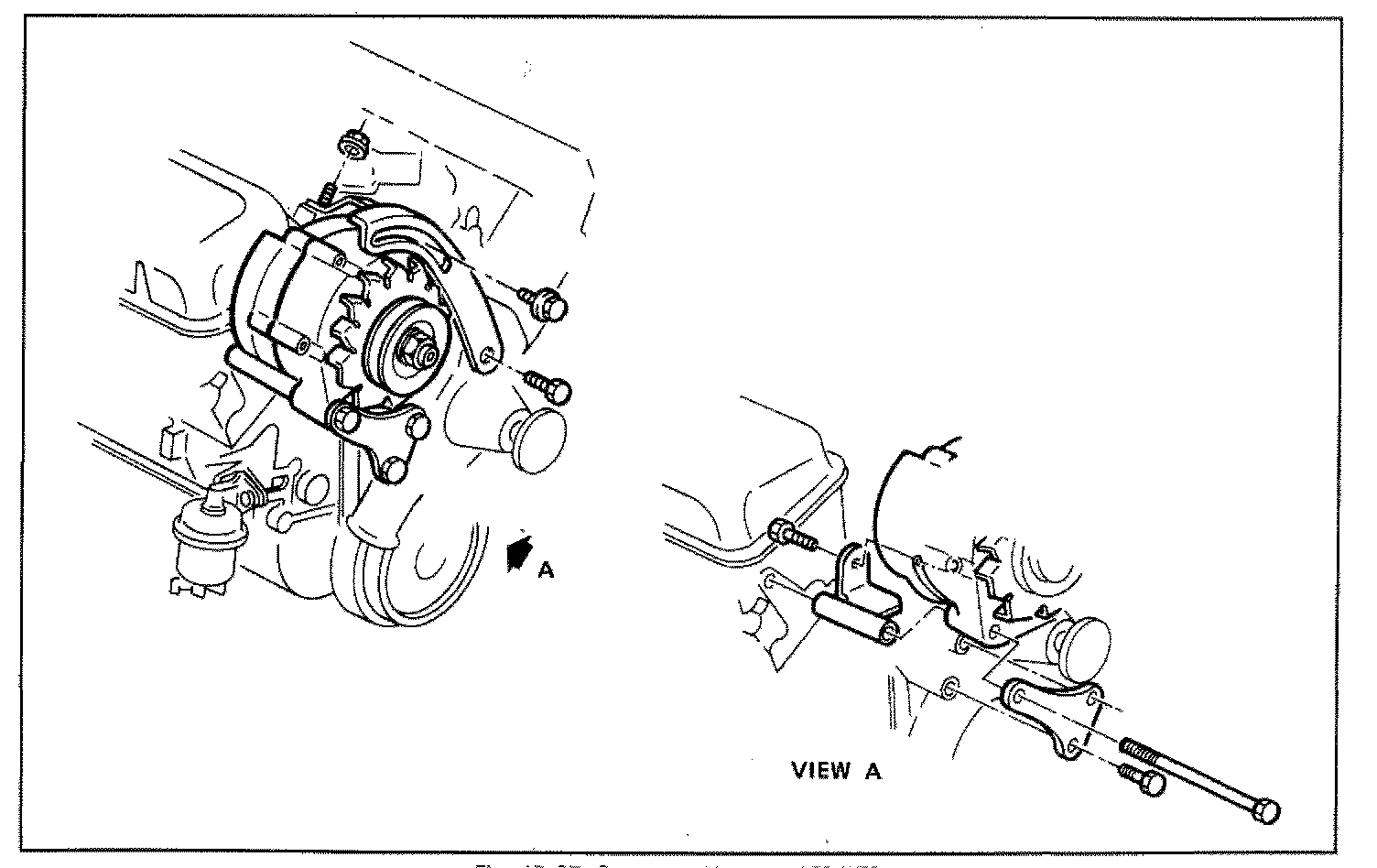

Generator Mounting - LE3:

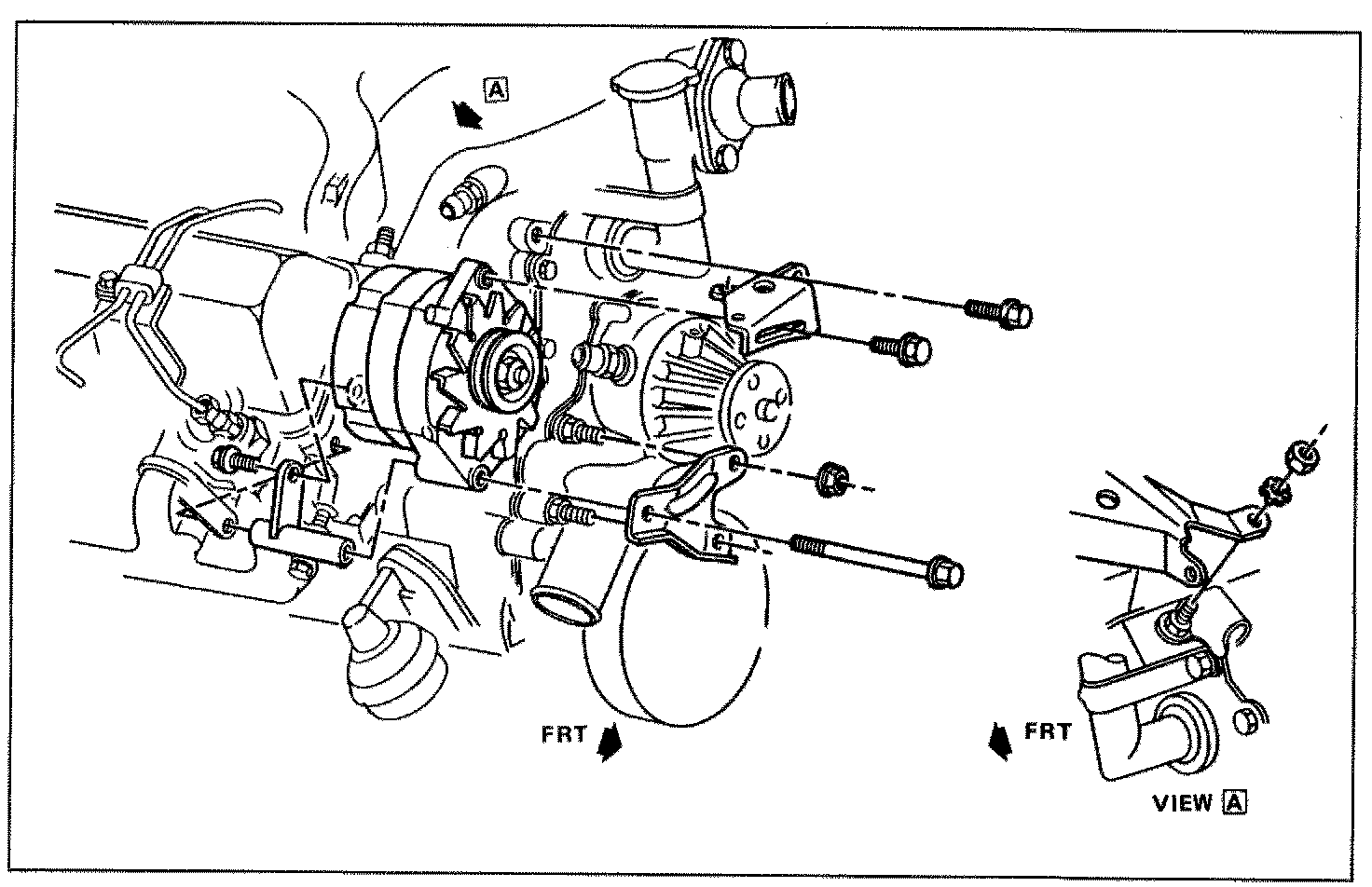

Generator Mounting - L25:

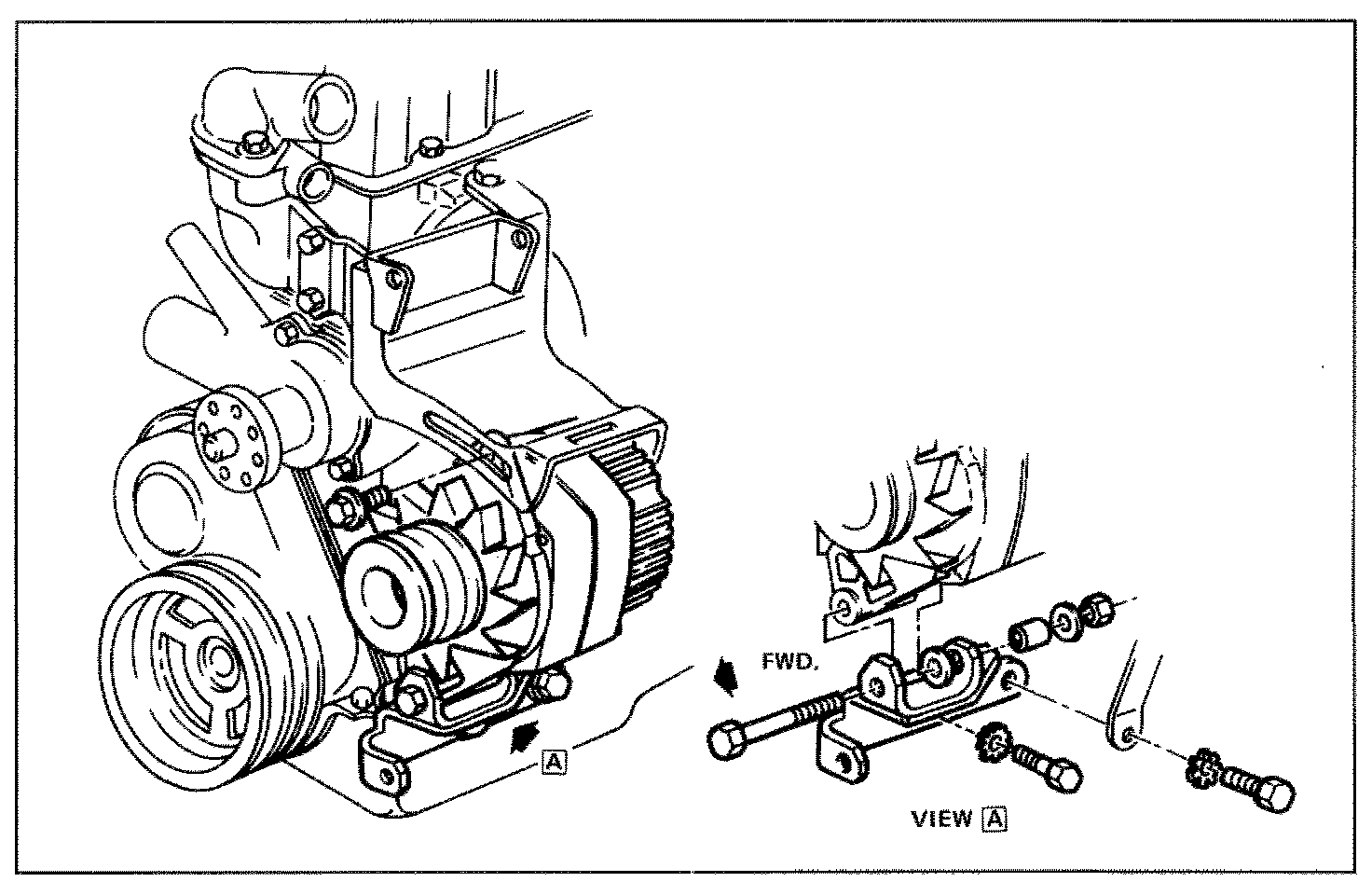

Generator Mounting - Diesel:

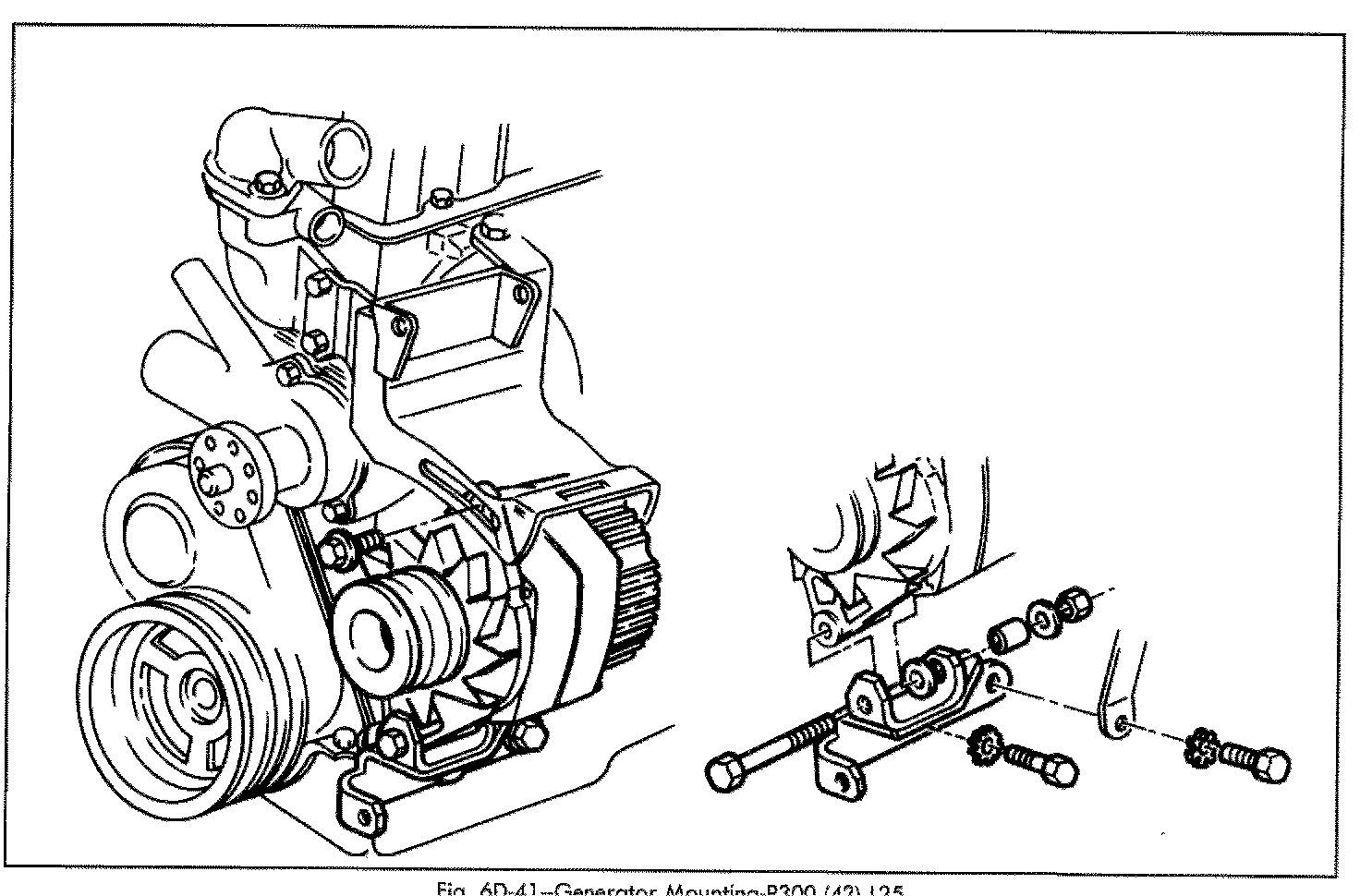

Generator Mounting - P300 (42) L25:

3. Loosen adjusting bolts.
4. Remove generator drive belt.
5. Remove thru bolt which retains generator.
6. Remove generator from vehicle.

Install

1. If remove from vehicle, install generator to mounting bracket with bolts, washer and nuts. Do not tighten.
2. Install generator drive belt.
3. Tighten belt to the specified belt tension .
4. Tighten bolts.
5. Install generator terminal plug and battery leads to generator.
6. Connect negative battery terminal.
