ECM/PCM Inputs

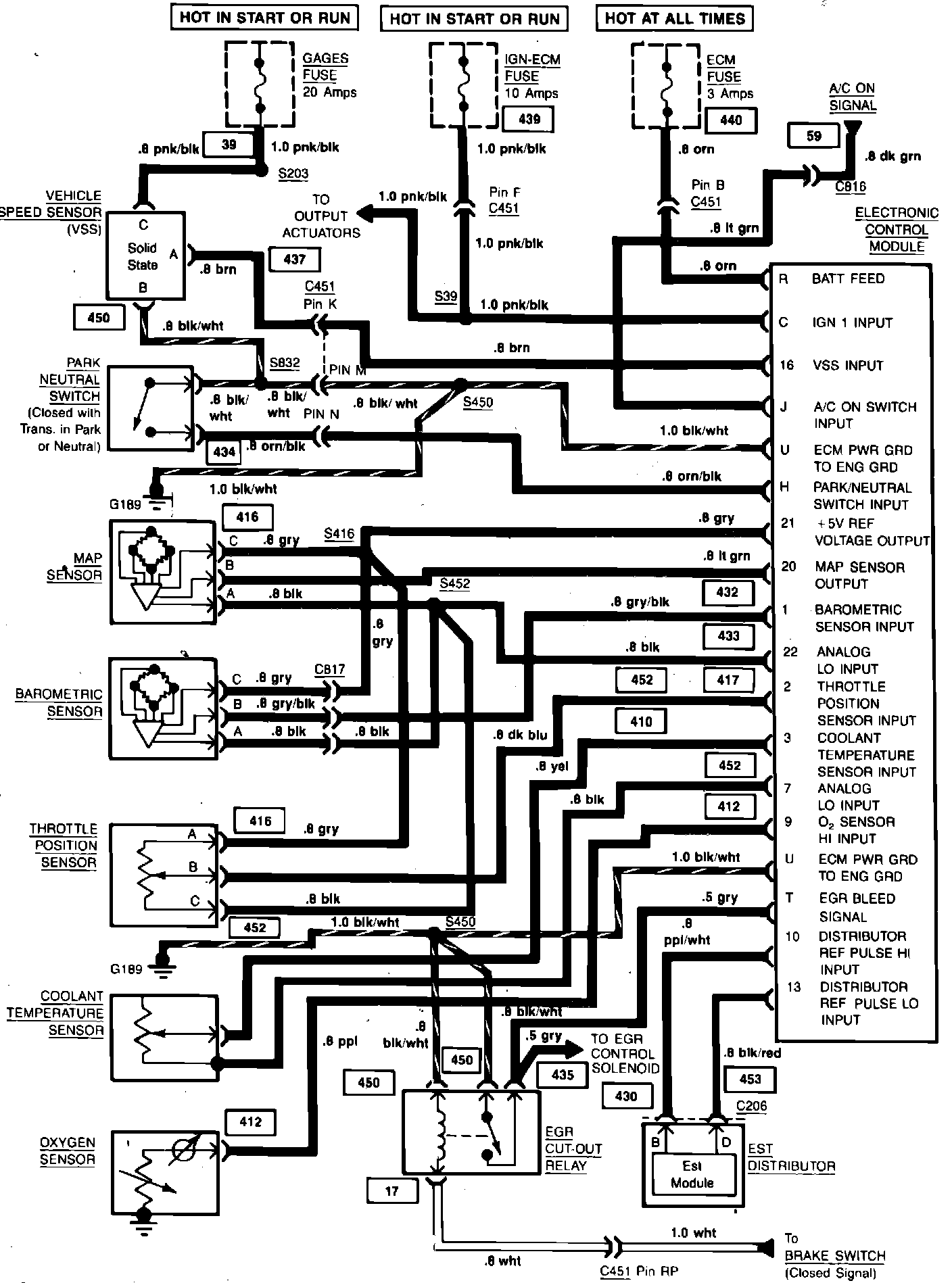

Computer Command Control (Inputs) Wiring Circuit:
Computer Command Control (Inputs) Wiring Circuit. (VIN A):
