Idle Speed Motor Position Sensor: Locations

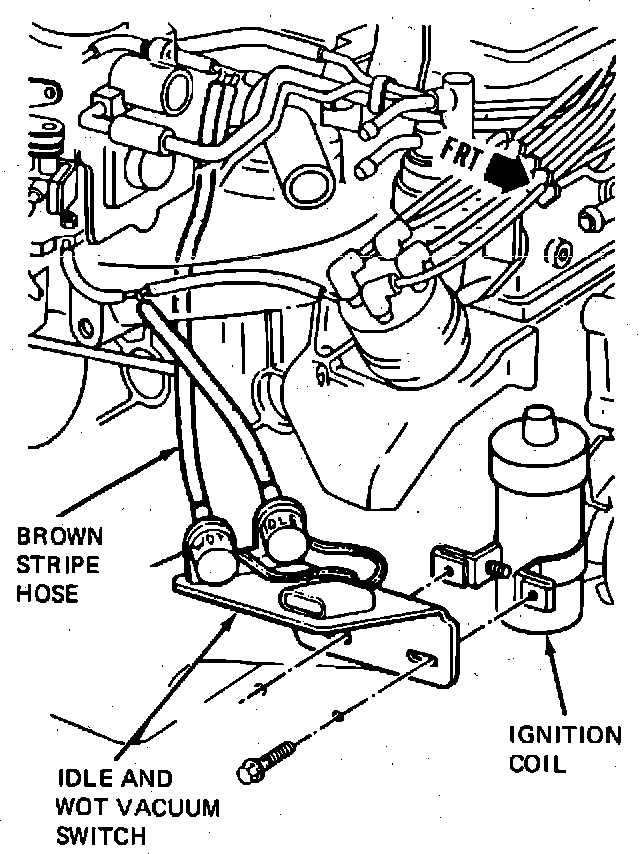

Engine Compartment Components:




On Ignition Coil Mounting Bracket

Applicable to: 1.9L Engine

RH Side Of 1.:




On Ignition Coil Mounting Bracket

Applicable to: 9L Engine
