Home >> Freightliner >> 2009 >> Sprinter 2500 V6-3.0L DSL Turbo >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Application and ID >> Fuse/Relay Block #1 (SRB)
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

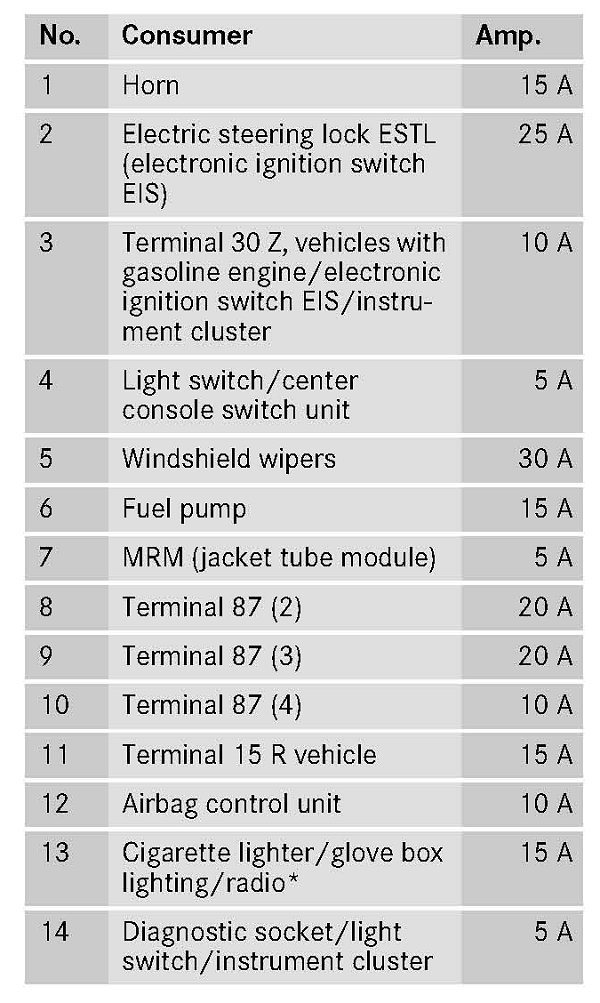

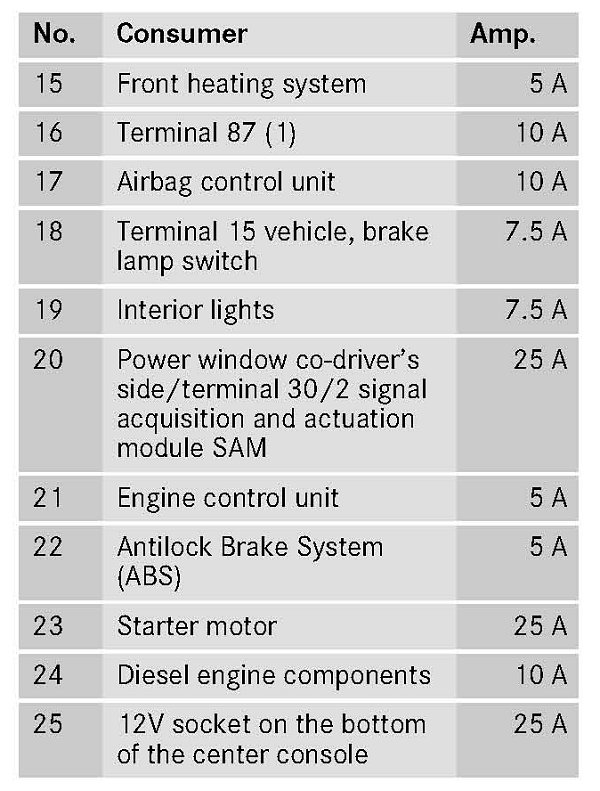

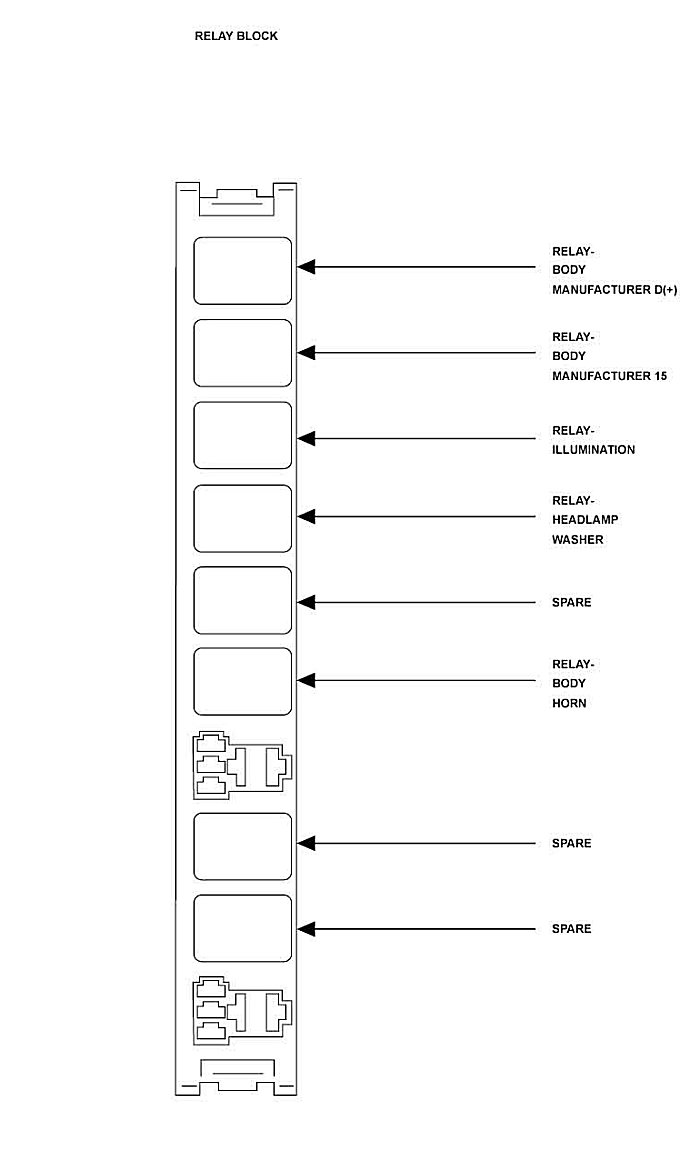

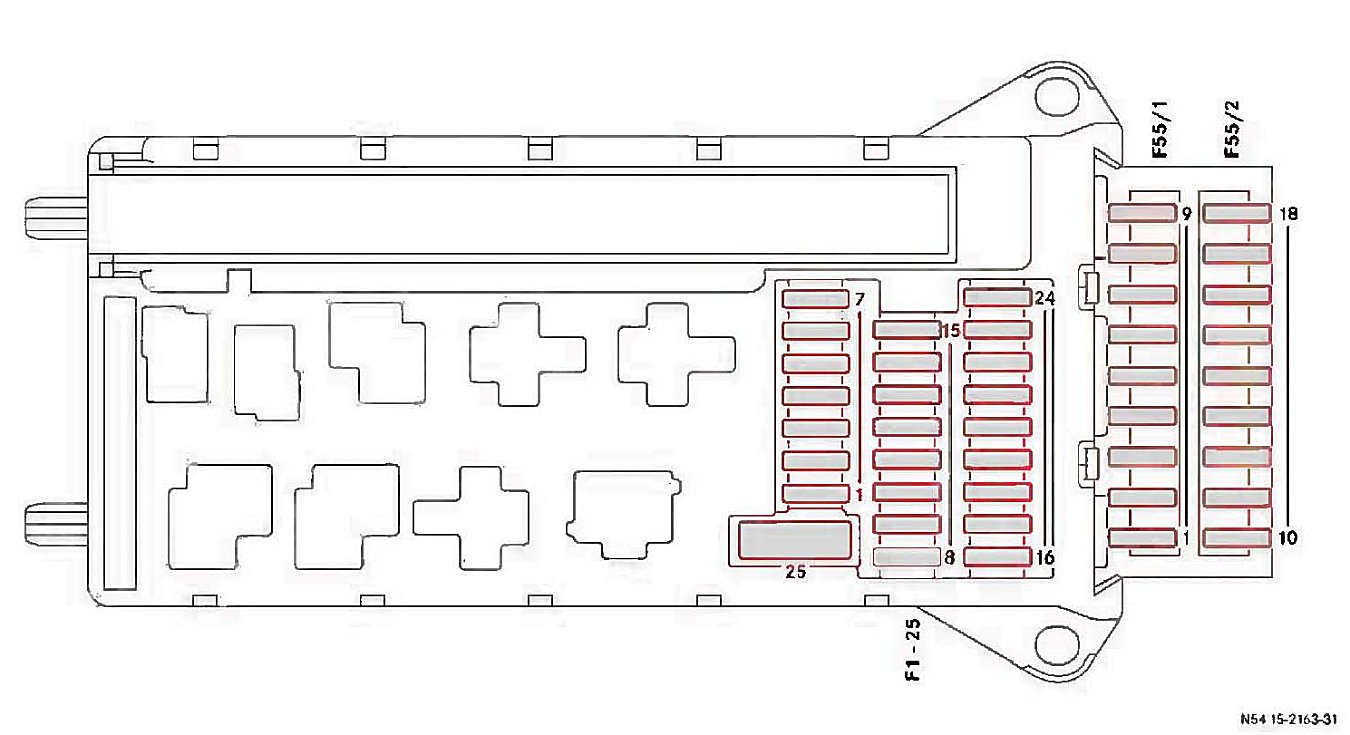

Fuse/Relay Block #1 (SRB)
