Left Power Sliding Door Module C3 10 Way

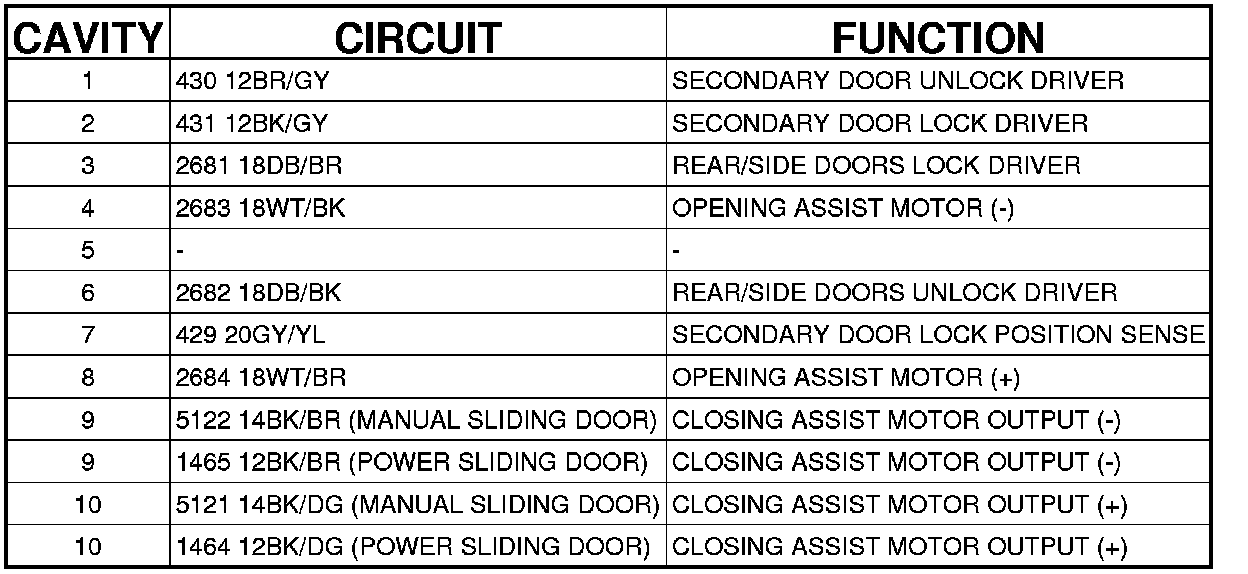

Connector C3 - 10 WAY




MODULE-POWER SLIDING DOOR-LEFT - 10 WAY
