Installation

INSTALLATION





1. Install the air pump (2).

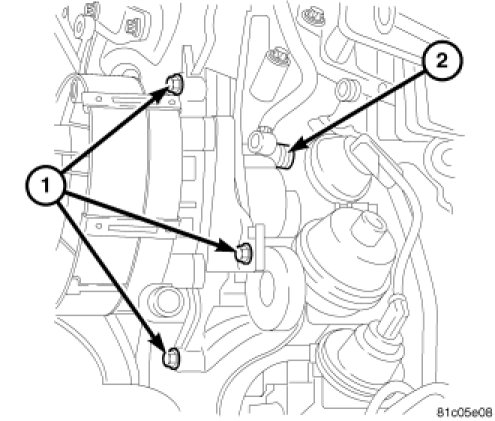

2. Install the 3 air pump retaining bolts (1).




3. Reconnect the air pump harness connector (2).

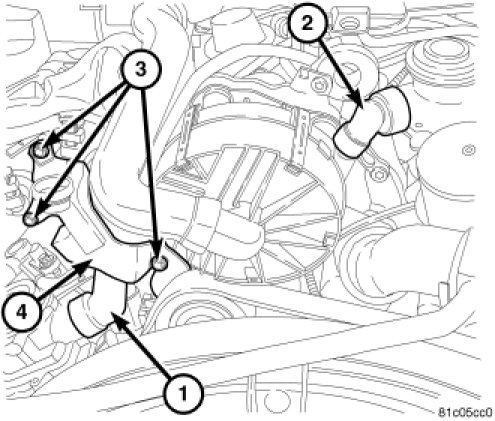

4. Reconnect the left air pump outlet tube (2).
5. Reconnect the right air pump outlet tube (1).
6. Install the air pump solenoid bracket, and install the 3 air pump solenoid bracket bolts.
7. Install the air pump solenoid Installation.

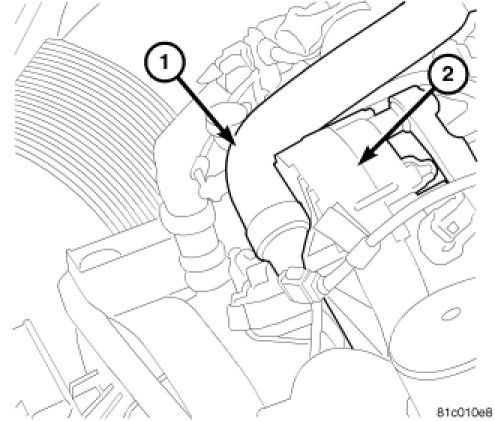

8. Install the air filter housing and reconnect the air inlet hose (1) to the air pump (2).
9. Connect the negative battery cable.
