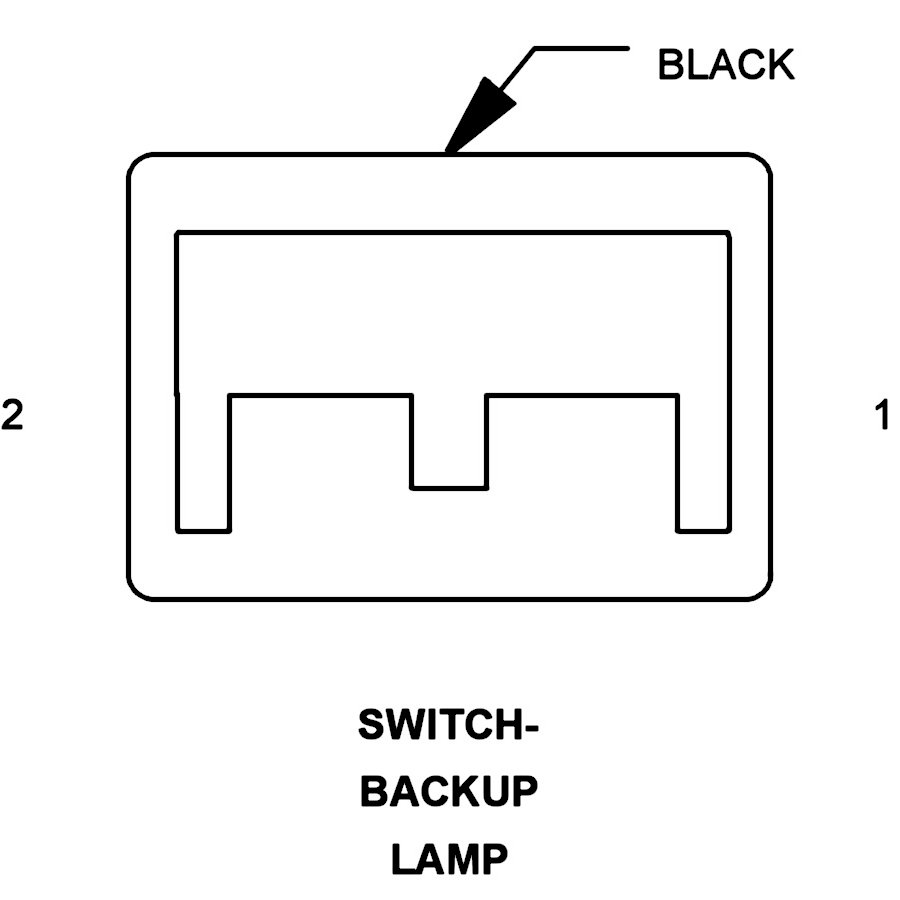

Backup Lamp Switch


Component ID: 530
Component : SWITCH-BACKUP LAMP

Connector:
Name : SWITCH-BACKUP LAMP
Color : BLACK
# of pins : 2




Pin Description Circuit
1 GROUND 546 20BR
2 - 545 20BR/DG
