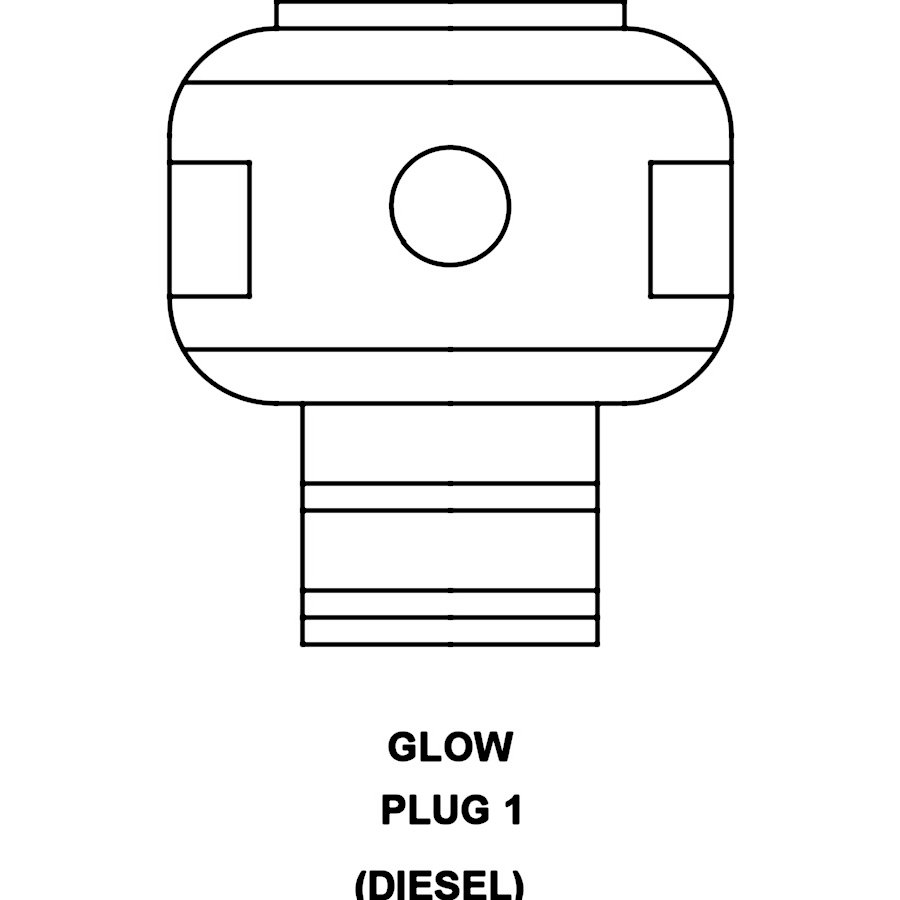

Glow Plug 1


Component ID: 188
Component : GLOW PLUG 1

Connector:
Name : GLOW PLUG 1
Color :
# of pins : 1
Qualifier : (DIESEL)




Pin Description Circuit
1 - 116 12BK/WT
