Sensor-Camshaft Position 2/1

Component ID: 449

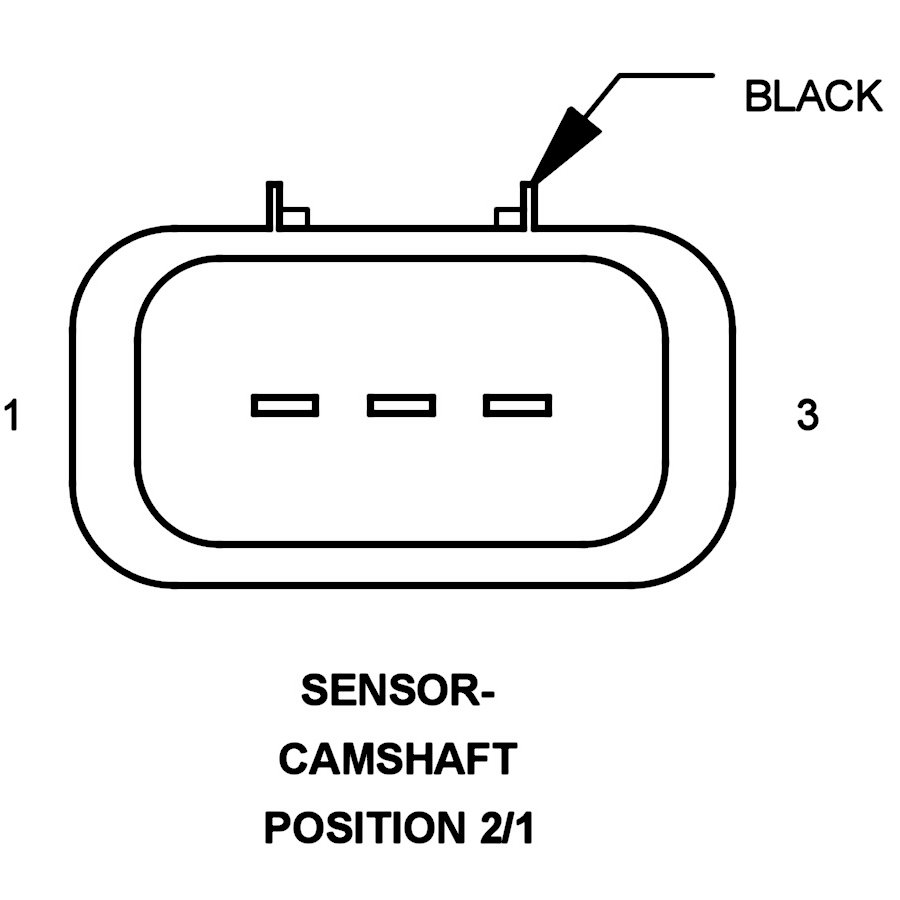

Component : SENSOR-CAMSHAFT POSITION 2/1

Connector:
Name : SENSOR-CAMSHAFT POSITION 2/1
Color : BLACK
# of pins : 3




Pin Description Circuit
1 SENSOR GROUND U6102 20BR/DB
2 CMP 2/1 SIGNAL 1604 20DG/DB
3 FUSED MAIN RELAY OUTPUT U794 20BK/GY
