Air Temperature Sensor ( Ambient / Intake ): Diagrams


Component ID: 468
Component : SENSOR-INTAKE AIR TEMPERATURE

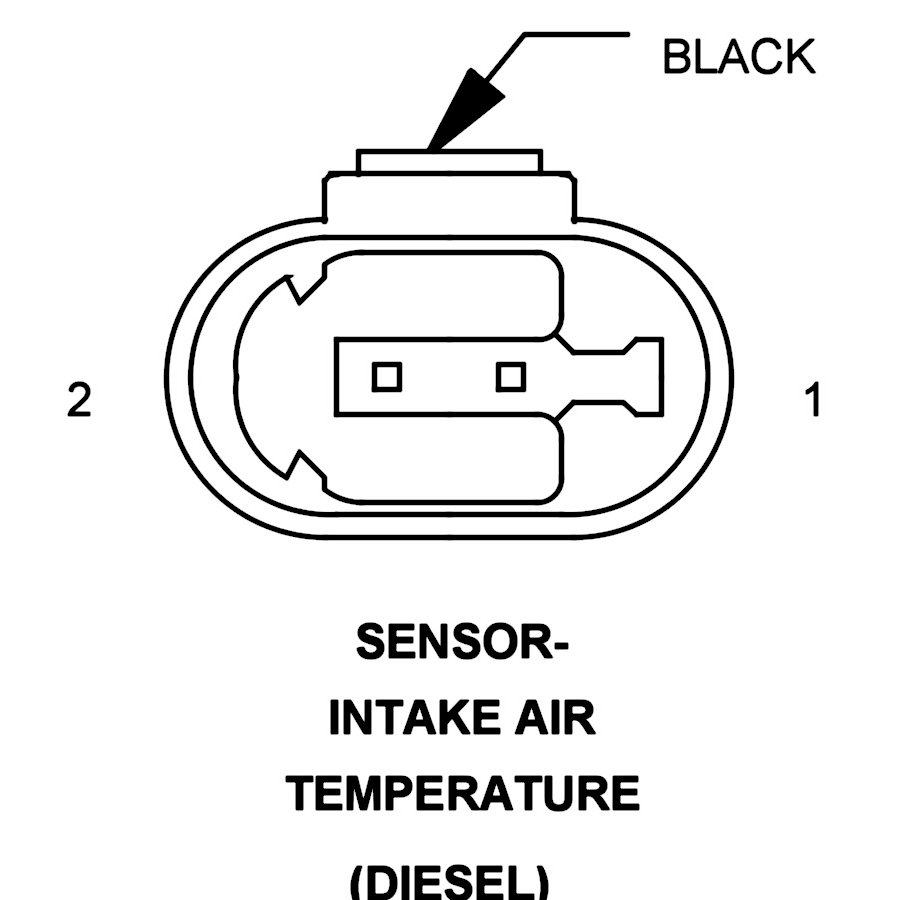

Connector:
Name : SENSOR-INTAKE AIR TEMPERATURE
Color : BLACK
# of pins : 2
Qualifier : (DIESEL)
Gender : FEMALE




Pin Description Circuit
1 INTAKE AIR TEMPERATURE SENSOR GROUND 1288 20BR/DG
2 INTAKE AIR TEMPERATURE SENSOR SIGNAL 1289 20DG/WT
