Installation






INSTALLATION

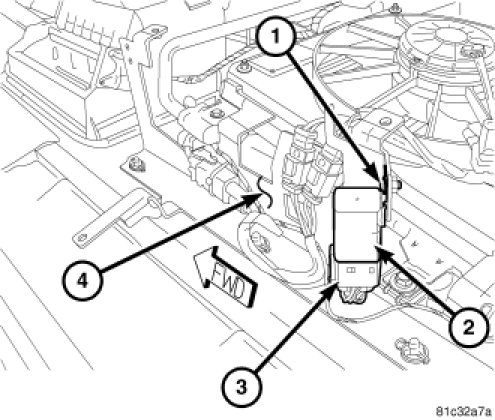

1. Position the rear condenser fan relay (2) to left side of the rear condenser mounting bracket (4) located on top of the vehicle.
2. Align the rear condenser fan relay with the terminal cavities in the wire connector (3) and engage the connector onto the relay. Make sure the terminals and wire connector are fully seated.
3. Install the screw (1) that secure the rear condenser fan relay to the rear condenser mounting bracket. Tighten the screw securely.
4. Install the rear condenser cover and the retaining screws. Tighten the screws to 2 Nm (17 in. lbs.).
5. Reconnect the negative battery cable.
