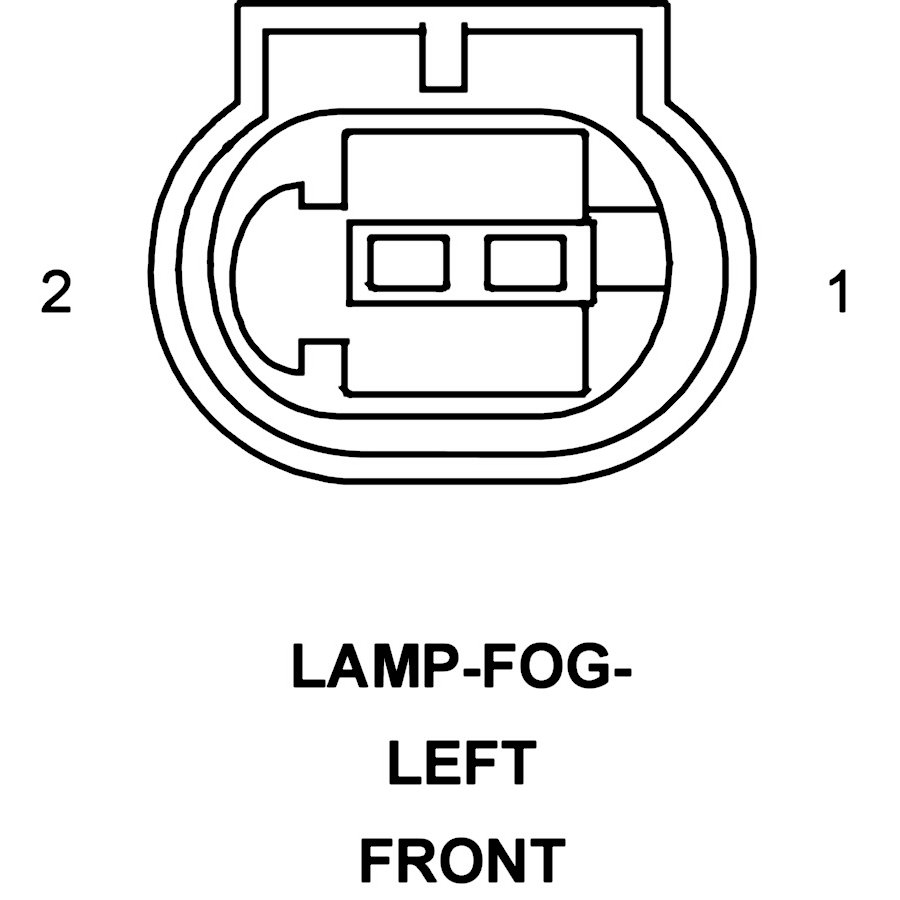

Lamp-Fog-Left Front


Component ID: 226
Component : LAMP-FOG-LEFT FRONT

Connector:
Name : LAMP-FOG-LEFT FRONT
Color :
# of pins : 2




Pin Description Circuit
1 GROUND 68 16GY/VT
2 LEFT FOG LAMP DRIVER 1879 16BR
