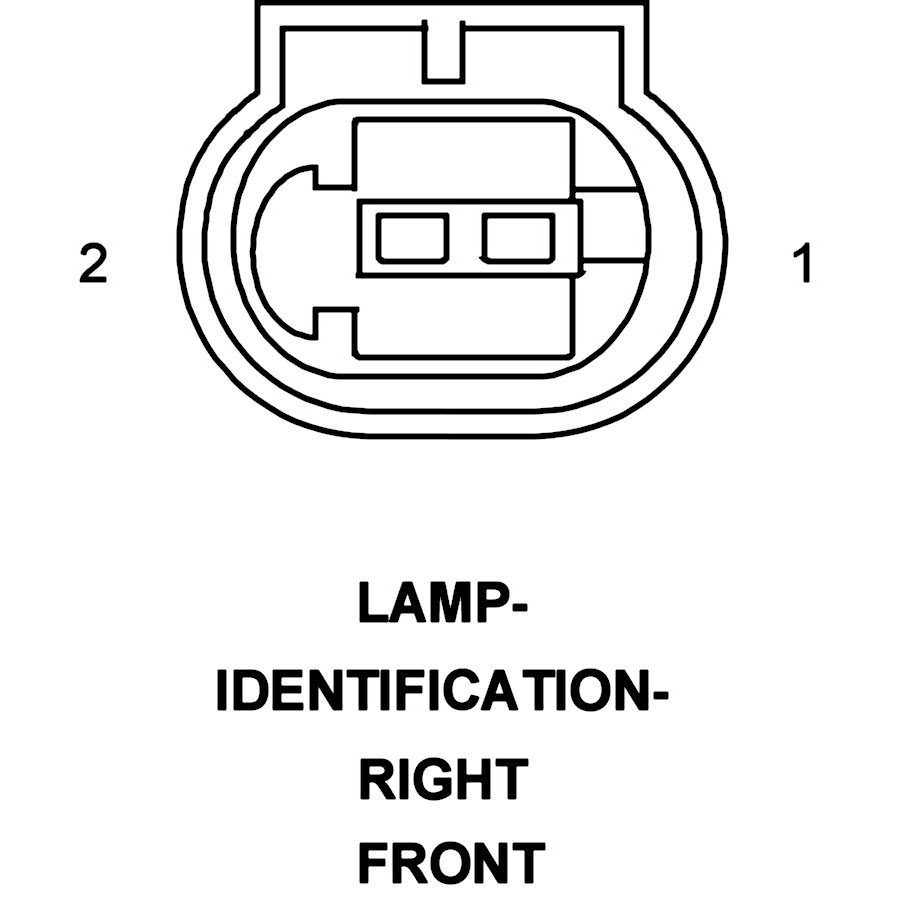

Lamp-Identification-Right Front


Component ID: 233
Component : LAMP-IDENTIFICATION-RIGHT FRONT

Connector:
Name : LAMP-IDENTIFICATION-RIGHT FRONT
Color :
# of pins : 2




Pin Description Circuit
1 - U131 18YL/RD
2 GROUND 4176 18BR
