Installation






INSTALLATION

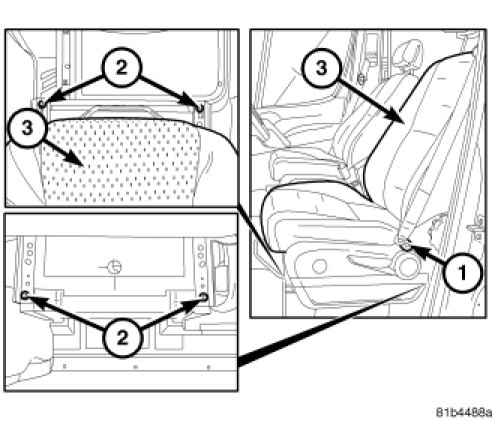

Driver Seat




1. Install the seat (3) and install the bolts (2).
2. Tighten the bolts (2) to 37 Nm (27 ft. lbs.).
3. Install the seat belt and install the bolt (1).
4. Tighten the seat belt bolt (1) to 37 Nm (27 ft. lbs.).

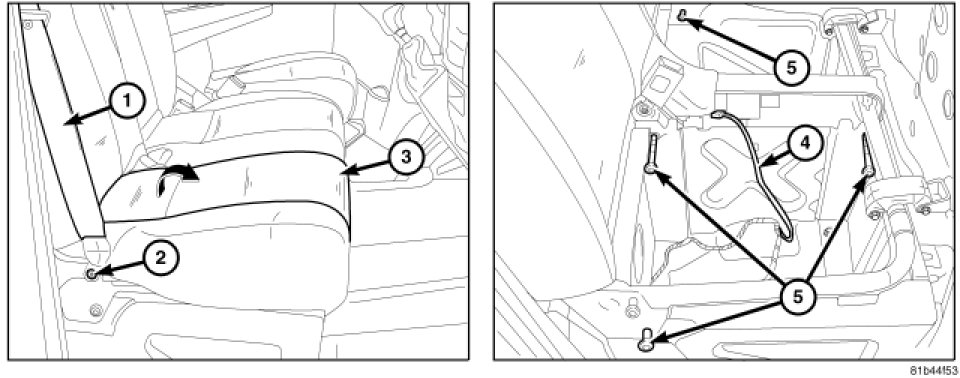

Passenger Seat




1. Install the seat assembly onto the frame and fold the seat cushion (3) forward.
2. Install the bolts (5) and tighten to 37 Nm (27 ft. lbs.).
3. Position the wire harness (4) back and connect the electrical connector.
4. Fold seat cushion (3) back.
5. Install the seat belt (1) and install the bolt (2).
6. Tighten the bolt (2) to 37 Nm (27 ft. lbs.).
